Plastic Roll Film Vertical Form Fill Seal Machines

Vertical Intermittent machine that forms, fills and seals bags, which is both very simple and flexible machine with high stable performance, it is controlled the machine by PLC and touch screen to change format and parameters in an easy way, can be worked with all types of dosing system: volumetric system, liquid pistion filler, gravimetric system for big granules

MESSAGE US

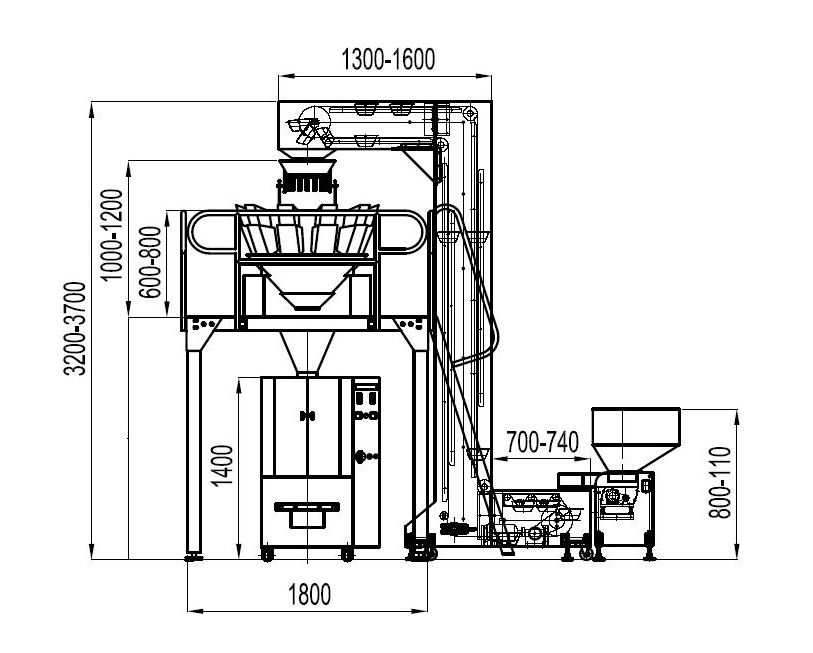

VIDEO OVERVIEW KEY FEATURES SPECIFICATIONS LAYOUT OTHER

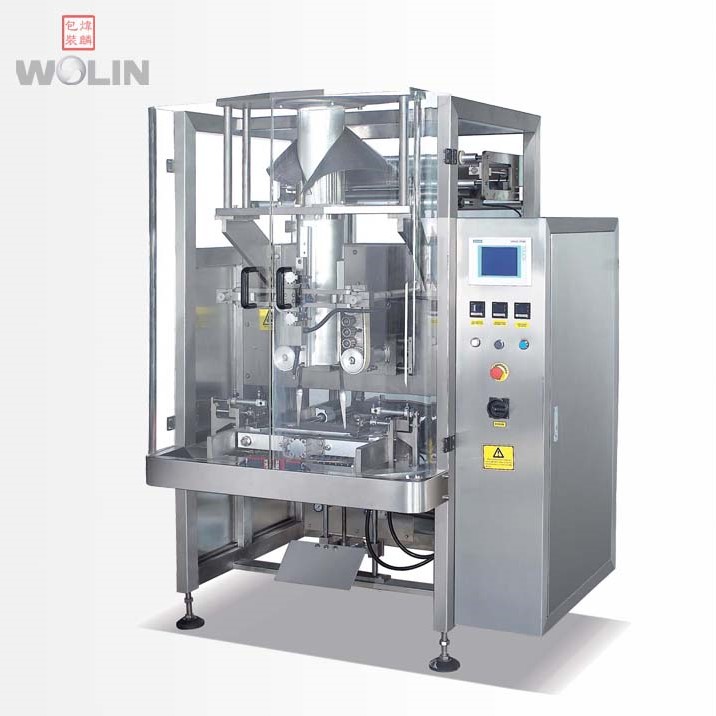

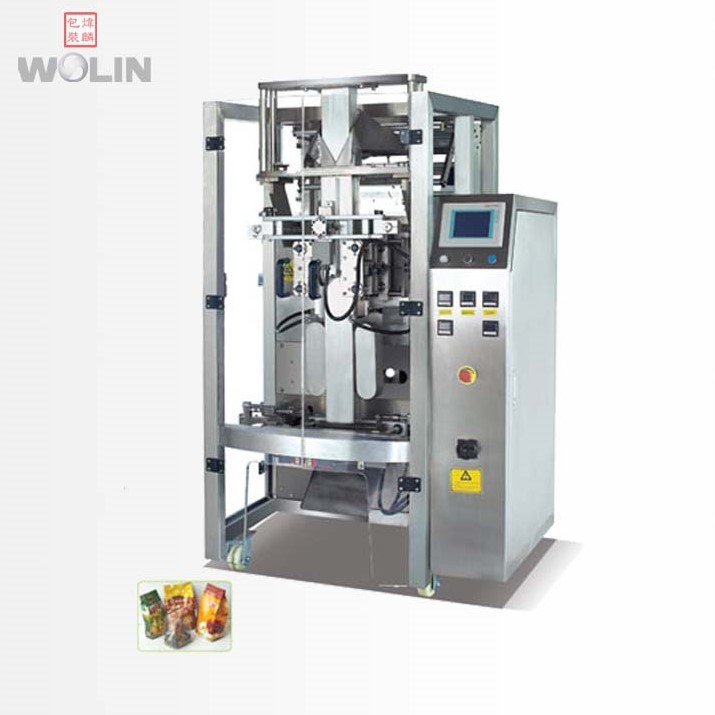

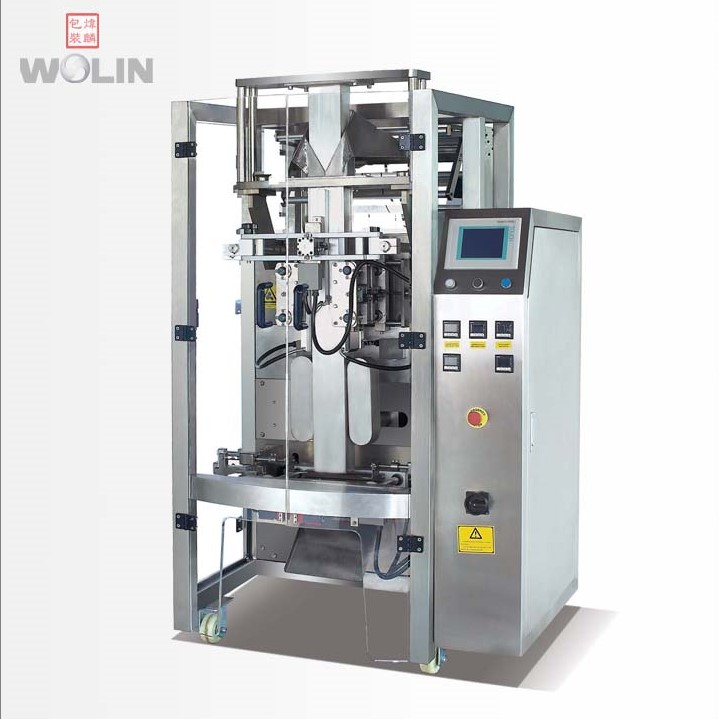

Weighlin Vertical Intermittent machine that forms, fills and seals bags, which is both very simple and flexible machine with high stable performance, it is controlled the machine by PLC and touch screen to change format and parameters in an easy way, can be worked with all types of dosing system: volumetric system, liquid pistion filler, gravimetric system for big granules. servo motor driven system, apply for various BOPP/CPP, BOPP/VMCPP, BOPP/PE, PE/VMPET/PE, PET/PE, laminated film form, fill seal packaging machine.

Widely apply for high capacity production line for nuts, rice, puffy food, shripm roll, popcorn, commeal, seed, sugar and salt, etc.

New generation sanitary design & build
Easy clean and avoid trash accumulated.
PLC control and color touch screen, bag-making, measuring, filling, printing,cutting, finished in one operation;
Separate circuit boxes for pneumatic control and power control. Low noise, and the circuit is more stable;
Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
External film releasing mechanism: simpler and easier installation of packing film;
Adjustment of bag deviation just needed to be controlled by the touch screen.
Simple operation .
Close down type mechanism, defending powder into inside of machine;

Model	WL-V420	WL-520	WL-620
Bag Width	60-200mm	80-250mm	100-300mm
Bag Length	60-300mm	80-350mm	200-400mm
Max. Roll Film Width	420mm	520mm	620mm
Packing Speed	6-60BPM	5-60BPM	5-50BPM
Film Thickness	0.04-0.08mm	0.04-0.09mm	0.04-0.09mm
Air Consumption	0.3CBM/MIN	0.4CBM/MIN	0.5CBM/MIN
Power Supply	22v, 50hz, 1P	22v, 50hz, 1P	22v, 50hz, 1P

OPTIONS AVAILABLE
- Extra Former Tube for different bag size
- Nitrogent Filler
- Holer device
- Continous bag device
- Bag holder
- PE sealing jaw
- Air-push-out device
- Themal Transfer printer
- Various weight filler
- Round corner bag
- Square stable seal bags
- Side gusset bags
- Vacuum 4 side seal bag
- Coffee Valve Device
