Mixed Snack Packaging Machine-Chocolate beans, Grain & Nuts

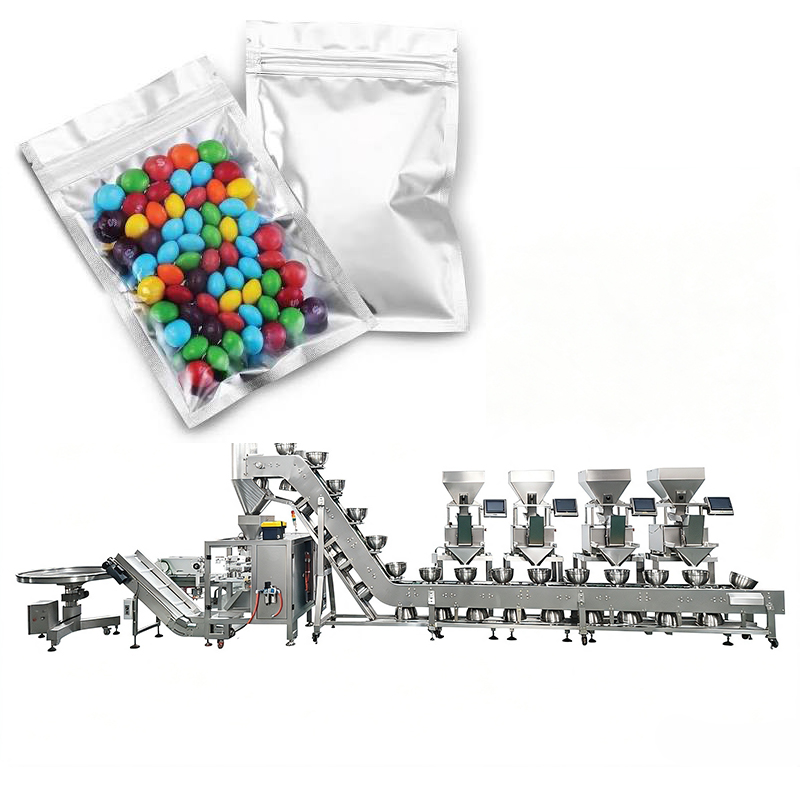

This multi-function horizontal 4 station doypack packaging machine is designed for automatic mixing and packing of 4 types of products — chocolate beans, nuts, candy, and grain. Equipped with 4 single-head linear weighers, it delivers efficient packaging at a low cost.

Inquire Now Next Product

The horizontal 4-station doypack pouch packaging machine is built to process various pre‑made pouch styles, including flat bags, stand‑up gusseted bags, zipper bags, etc. Delivering reliable performance at competitive costs, this premade pouch packing equipment suits broad industries, suitable for mixing packaging of candies, snack, nuts, beans.

Mixed Snack Packaging Machine-Chocolate beans, Grain

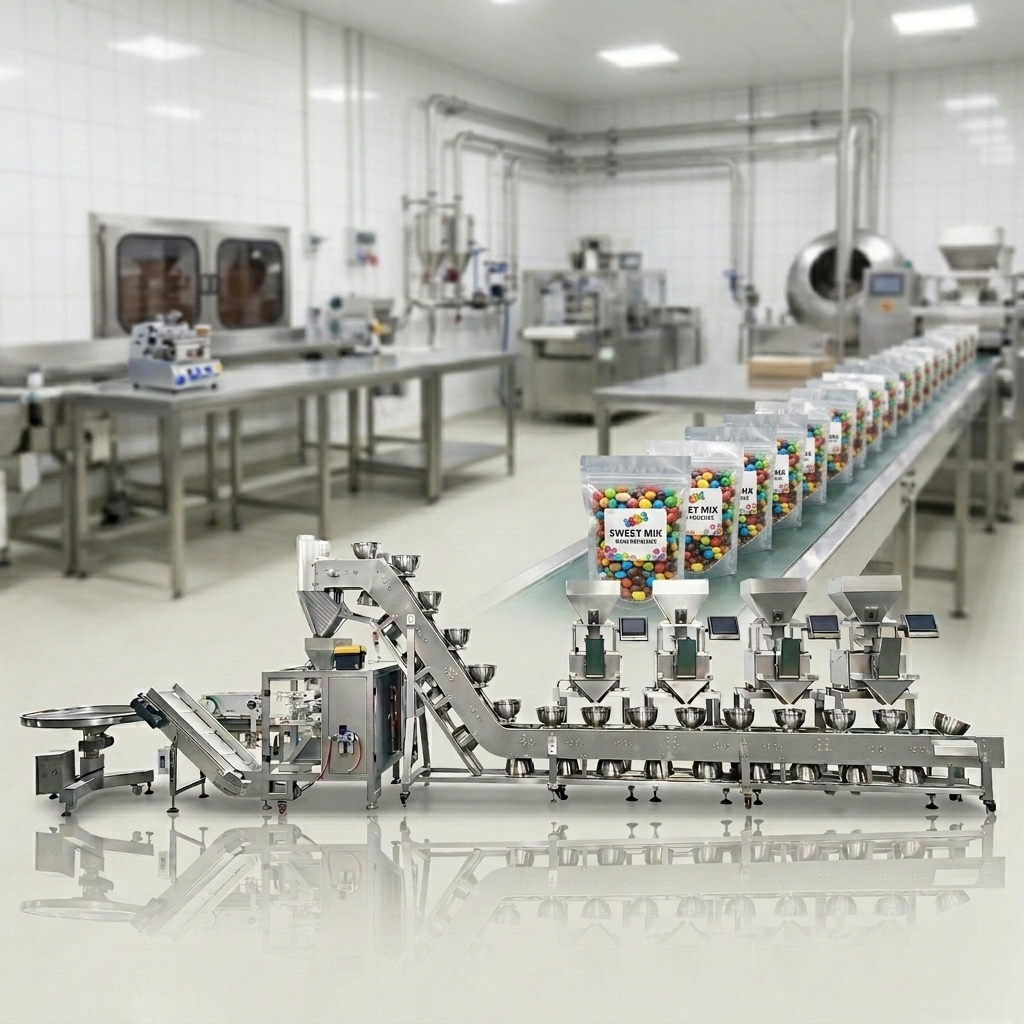

The horizontal 4-station doypack pouch packaging machine features a compact, space-saving and cost-effective packaging workflow.

Independent Material Weighing: Different materials are placed into individual linear weighers respectively. Each weighter completes quantitative weighing in accordance with preset target weight.
Centralized Material Collection & Lifting: Once weighing is finished, all qualified materials are automatically discharged and collected into the bowl elevator, then conveys the to the packaging machine.
Automatic Packaging Completion: The machine automatically executes a full set of packaging procedures, including bag picking, opening, precise filling, sealing and finished product output.

Different from bulky traditional packaging lines, this integrated weighing and lifting structure adopts a highly compact layout, which effectively saves factory floor space. Equipped with mature and reliable configurations, the entire production line is cost-effective, lowering equipment procurement and production costs for users while maintaining stable and efficient automated operation.

This versatile packaging line is applicable for packing chocolate beans, grains,nuts, beans and other small size various granular materials, which is an ideal economical packaging solution for various production scales.

And it supports a versatile range of bag styles—including zip-lock pouches, 3-side seal pouches, and stand-up pouches—in both plastic and paper materials.

Mixed Snack Packaging Machine-Chocolate beans, Grain

Packing Weight	50-1000 grams
Weighing Accuracy	±1-1.5 grams
Packing Speed	8-15 bags/min
Pouch Style	Premade pouches, such 3 side seal pouch , stand-up Zip-lock pouch
Pouch Size	Width 80mm ~ 300mm, length 100mm ~ 350mm
Air Consumption	0.4~0.5m³/min , 0.6-0.7 Mpa
Power Supply	1 Phase, 220V, 50/60Hz,2.5Kw
Options	Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device

4‑station horizontal doypack packaging design
Multi‑function horizontal 4‑station structure, specially built for stand‑up pouch (doypack) packaging, stable and compact for diversified production demands.
Multi‑material compatible automatic packing
Supports automatic mixing and packaging of 4 different materials: chocolate beans, nuts, candy and grains, flexible for multi‑product formula packaging requirements.
4 independent single‑head linear weighers
Comes with 4 sets of single‑head linear weighers, realizing separate accurate metering for each raw material, stable feeding and reliable weighing performance.
High‑efficiency & cost‑effective production
Achieves automatic mixing‑packing workflow, reduces manual intervention, brings high production efficiency while lowering overall operating cost.
Rapid Changeover Capability
Quick adjustment for different bag sizes , bag width auto adjust by setting on the control screen
7" User-Friendly HMI control
Intuitive touchscreen for efficient monitoring and operation.
Smart Pouch Detection System
“No pouch, no fill” functionality prevents product waste and spillage.
