Granule Packing Line
Perfect for small to medium production, it efficiently fills and seals granular products like coffee bean, nuts, and snacks into pre-made pouches. Its compact design saves floor space, Featuring precise dosing, airtight sealing, and food-grade stainless steel, it ensures product freshness and easy operation.

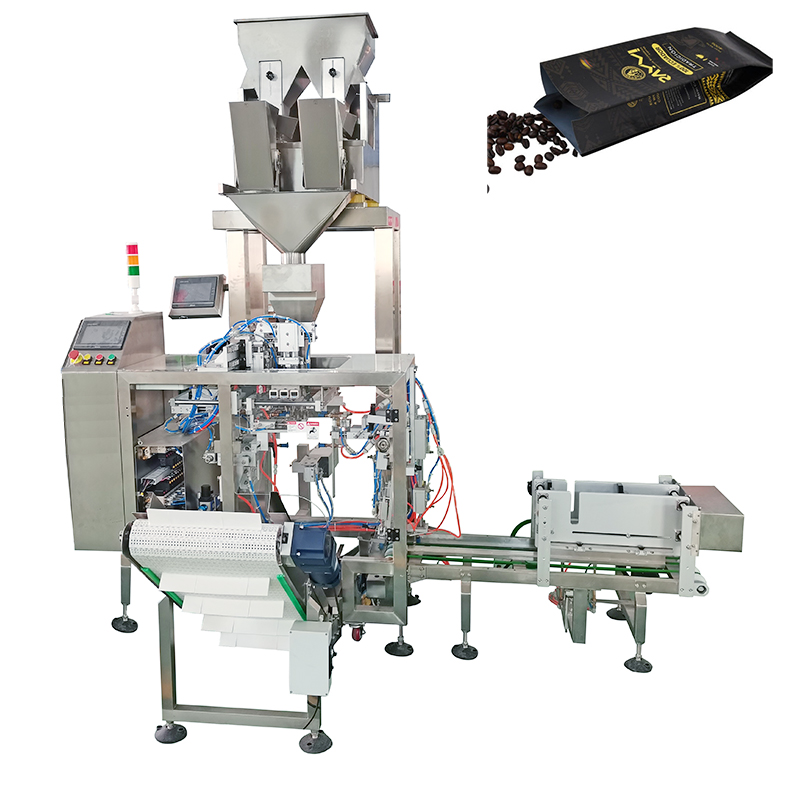

Our compact Mini Doypack Packaging Machine offers precise filling and airtight sealing for granules like coffee beans,nuts,rice, pet food ect, delivering high-efficiency pre-made pouch packaging in a space-saving design. Engineered for versatility and cost-effectiveness, it ensures your goods maintain peak freshness and a premium shelf presence.
How It Works: The Mini Doypack Packaging Process
Pouch Feeding & Positioning: The operator fills the pouch magazine, and the machine's grippers smoothly pick up and deliver the pouches to the bag-opening and filling position.
Precision Filling: Once positioned, the pouches reach the filling station. A 2-head linear weigher accurately dispenses the exact amount of granular product (such as coffee beans or nuts) into the pouch, ensuring consistent weight and minimizing waste.
Airtight Sealing: After filling, the pouches rise to the sealing jaws. High-temperature heating elements apply uniform pressure to create a strong, leak-proof seal, effectively locking in the product's freshness and extending its shelf life.
Cooling & Output: The freshly sealed pouches pause briefly for cooling before the finished packages are dropped onto the output conveyor.
Integrated with a 2-head linear weigher, this packaging system is suitable for weighing and packing all kinds of small, fine solid granules or free-flowing powders (dust-free), such as rice, seeds, sugar, salt, sesame, chicken essence, soybeans, mung beans, coffee beans, coffee powder, cat litter, and washing powder.
The mini doypack packaging machine supports multiple pre-made pouch styles, such as stand-up pouches, flat-bottom bags, spouted pouches, zipper-lock bags, and gusseted bags.
| Packing Weight | 10-2000 grams |
| Weighing Accuracy | ±1-3 grams |
| Packing Speed | 5-10 bags/min |
| Pouch Style | Premade pouches, such as 3 side seal pouch , stand-up pouch, Zip-lock pouch, gusseted bag |
| Pouch Size | Width 100mm ~ 300mm, length 100mm ~ 350mm |
| Air Consumption | 0.3~0.4m³/min , 0.6-0.7 Mpa |
| Power Supply | 1 Phase, 220V, 50/60Hz,1.5Kw |
| Options | Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device |
Compact footprint & Low Maintenance.
Built with a durable, laser-cut 304 stainless steel frame.
Conveyor allows for continuous pouch replenishment during operation.
Fully automated process: auto pick-up, open, fill, and seal.
Features a 2-head linear weigher for packing various small granules.

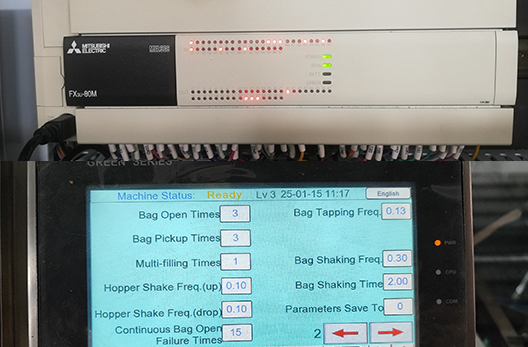

Controled by Mitsubishi PLC for stable, reliable performance.
Intuitive HMI touchscreen for simple operation.
Bag width adjusts directly on-screen, allowing for
fast and easy changeovers between different bag sizes.
