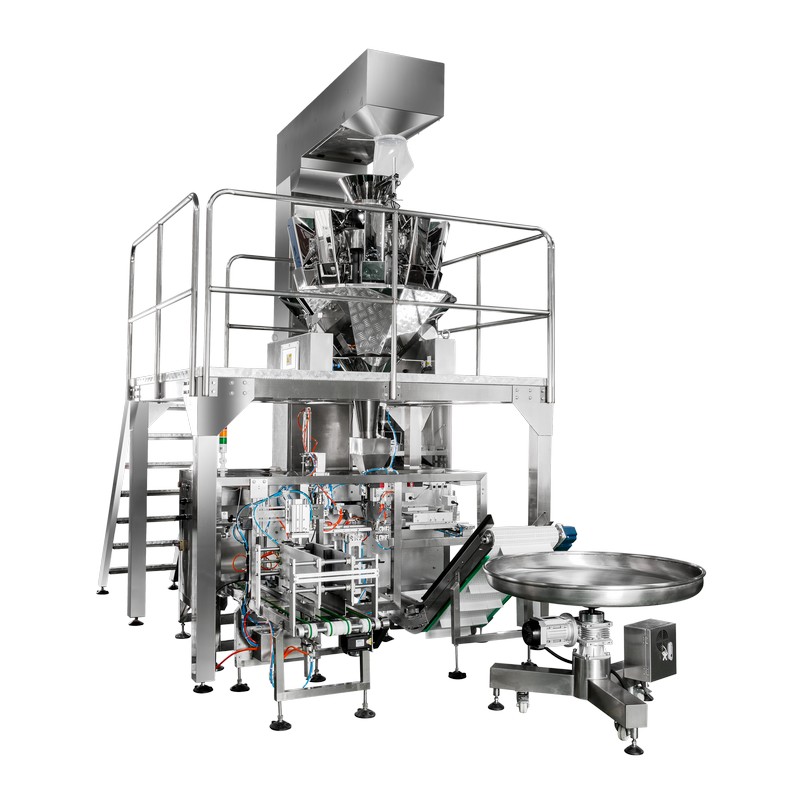

Nuts Pre-made Pouch Packaging Machine

An automatic packaging machine that precisely weighs nuts/dry foods via a multihead weigher, then open, fills, and seals the zipper-lock pouches.

Inquire Now Next Product

The ‌4-station doypack pouch packaging machine‌ is designed to handle a wide range of pre-made bag types—including flat bags, standup gusseted bags, zipper bags ect. As a cost-effective packaging solution, it’s ideal for diverse applications such as nuts, beans, frozen foods, cookies, chips, dried flowers, candies.

Nuts Pre-made Pouch Packaging Machine

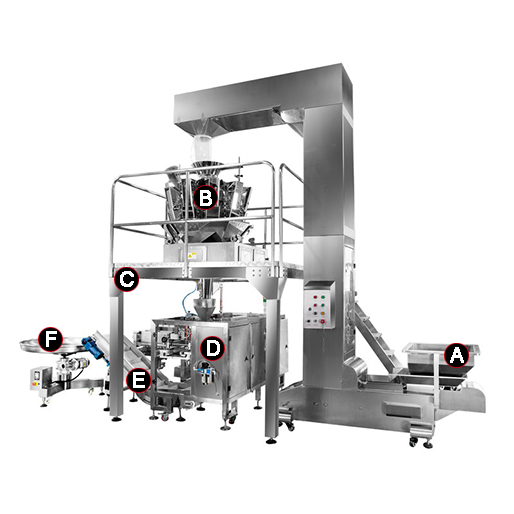

No.	Description	Function
A	Z Bucket Elevator	Lift Bulk Material To The Multihead Weigher
B	Multinead Weigher	Auto Weighing and Fill Material As Preset Weight To Packaging Machine
C	Working Platform	Support Multihead Weigher and For Daily Maintenance
D	Horizontal Packaging Machine	Automated Pouch Pickup - Open - Fill -Heat Sealing And Output
E	Output Conveyor	Collect and Delivery the finished Bag to The Rotary Table
F	Rotary Table	Collect The Finished Bag

This pre-made pouch packaging machine is designed for high-precision weighing and filling of a wide range of dry products—including nuts (almonds, cashews, peanuts), dried fruits (raisins, cranberries, snacks (potato chips, pretzels), candies, cookies, chocolate pieces, and dry pet food like kibble.

Nuts Pre-made Pouch Packaging Machine

And it supports a versatile range of bag styles—including zip-lock pouches, 3-side seal pouches, and stand-up pouches—in both plastic and paper materials.

Nuts Pre-made Pouch Packaging Machine

Packing Weight	50-1000 grams
Weighing Accuracy	±1-1.5 grams
Packing Speed	10-20 bags/min
Pouch Style	Premade pouches, such 3 side seal pouch , stand-up Zip-lock pouch
Pouch Size	Width 80mm ~ 300mm, length 100mm ~ 350mm
Air Consumption	0.4~0.5m³/min , 0.6-0.7 Mpa
Power Supply	1 Phase, 220V, 50/60Hz,2.5Kw
Options	Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device

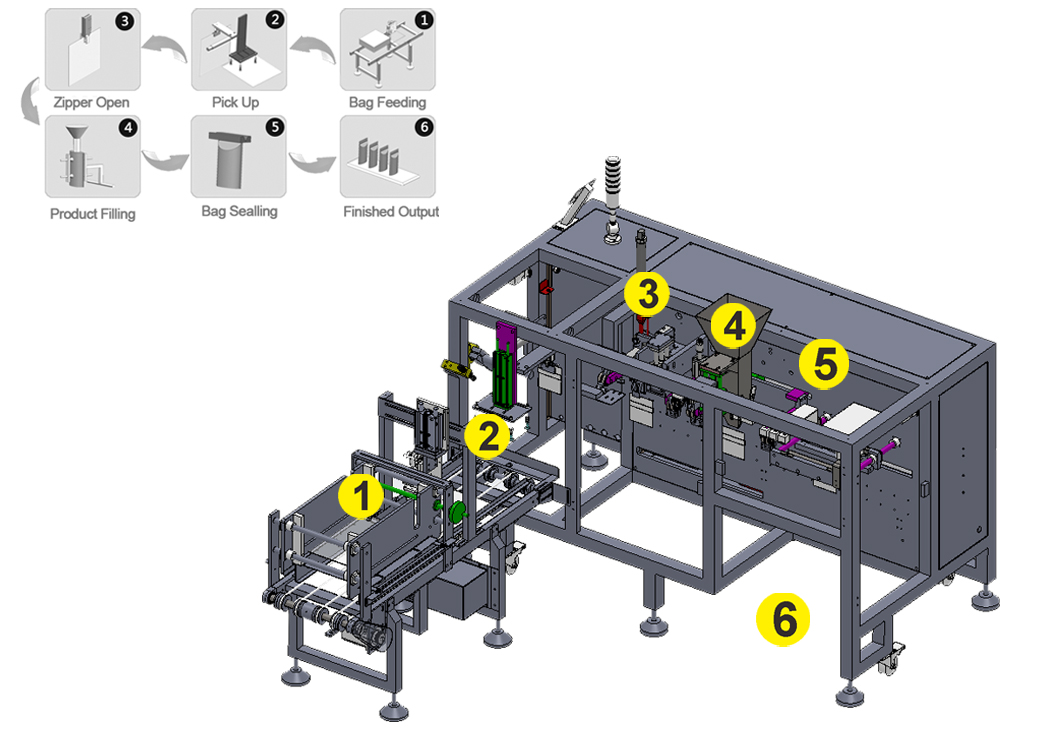

4-Station Horizontal Design: 4 workstations operating simultaneously in a continuous cycle
Simultaneous Multi-Process : Each station performs different functions concurrently (bag pickup →Ziplock Open→ filling → sealing )
Precision Multi-Head Weighing : 10 head weighers with ±0.1-1.5g accuracy for consistent portion control
Flexible Material Handling: Compatible with various pre-made bag types including flat bags, stand-up pouches, Zip-lock pouch and gusseted bags
Rapid Changeover Capability: Quick adjustment for different bag sizes , bag width auto adjust by setting on the control screen
7" User-Friendly HMI control:Intuitive touchscreen for efficient monitoring and operation.
Smart Pouch Detection System: “No pouch, no fill” functionality prevents product waste and spillage.

Nuts Pre-made Pouch Packaging Machine
