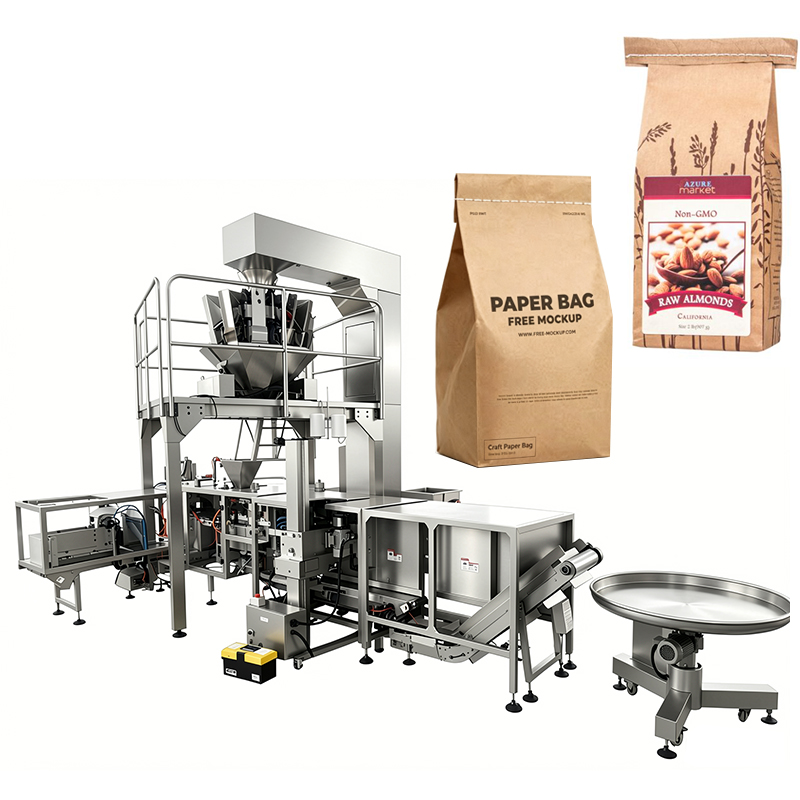

Automatic Paper Bag Stitching & Sewing Machine

Automatic Paper Bag Stitching & Sewing Machine

This granule sewing packaging machine is ideal for food processors, charcoal manufacturers, agricultural suppliers, and snack producers seeking reliable, high-efficiency paper bag sewing packing solutions. Whether you're packaging premium pasta, roasted nuts, or charcoal  our sewing stitching packing machine delivers consistent quality, minimal waste, and maximum throughput.

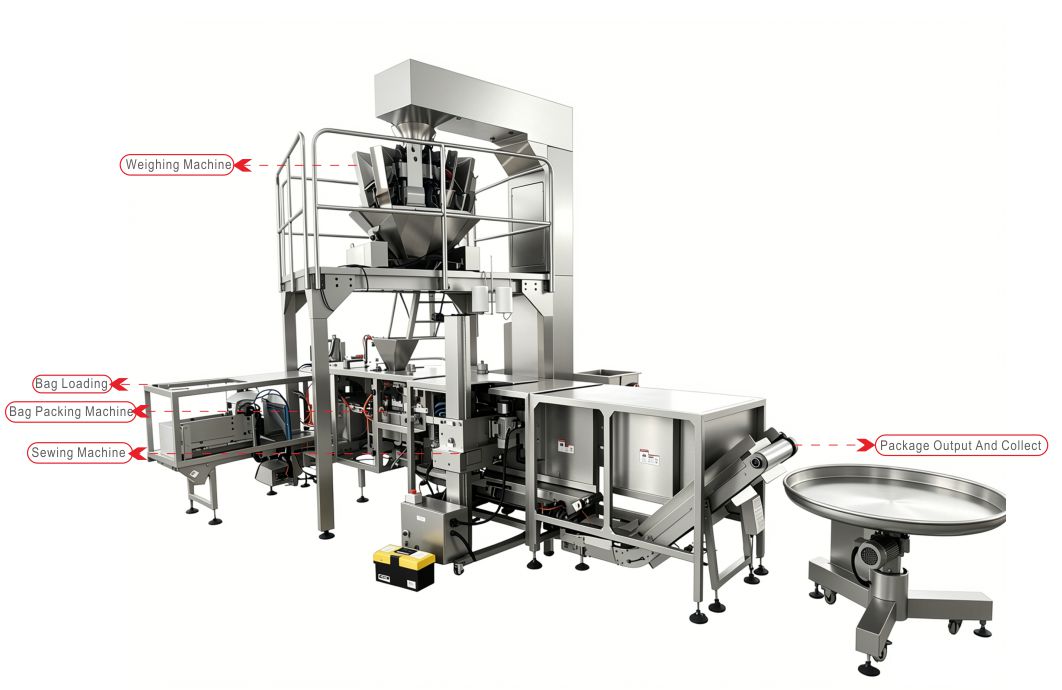

1. Bag Feeding — Empty paper bags are placed on the bag magazine and fed automatically.

2. Bag Opening & Clamping — The bag mouth is opened and clamped in position.

3. Weighing & Filling — Product is weighed by an automatic multihead weigher and filled into the bag with high precision.

4. Bag Release & Conveying — The filled bag is released onto the belt conveyor and moved to the next station.

5. Bag Mouth Flattening — The bag mouth is flattened and aligned for folding.

6. Folding — The bag mouth is folded inward to form a neat edge.

7. Sewing & Stitching — An industrial sewing head stitches the folded mouth with a strong chain stitch and auto-cuts the thread.

8. Labeling (Optional) — A label is applied for product identification.

9. Discharge — The finished bag is conveyed out for collection or palletizing.

This sewing packing machine is designed for packing a wide range of dry granule products—including pasta, grains, almonds, cashews, walnuts, cat litter, pet food, charcoal, and similar granular materials.

v  High-Precision Weighing — Advanced multihead weighers ensure ±0.5–2g accuracy, minimizing product waste.

v  Wide Bag Compatibility — Handles single-wall kraft, multi-wall, and PE/PP-lined paper bags with adjustable holders.

v  Fully Automatic Operation — Integrates feeding, weighing, filling, conveying, and sewing in one line — up to 20 bags/min.

v  Industrial-Grade Sewing — Heavy-duty sewing head with auto thread trimming for strong, consistent seals.

v  Modular & Customizable — Easily connects with upstream and downstream equipment; layout tailored to your facility.

v  User-Friendly HMI — Intuitive touchscreen for quick recipe switching, real-time monitoring, and easy adjustments.

v  Hygienic & Easy Maintenance — Stainless steel 304 buliding and parts with quick-release components for fast cleaning.

v  Durable Construction — Built with industrial-grade components for reliable performance in food packaging
