Zipper Bag Mini Pouch Packaging Machine For Snack

This compact high-efficiency mini zipper bag packaging machine serves small and medium producer. It fills, seals the pre-made zipper pouches with little space occupation, an ideal automated upgrade for flexible snack, nuts, chips,dried fruit packaging.

Inquire Now Next Product

The WEIGHLIN Mini Doypack Packaging Machine is a cost-effective, space-saving solution for packaging snacks like chips, cookies, candy, coffee beans, nuts, and pet food. It also features an optional nitrogen flushing system to maximize product freshness.

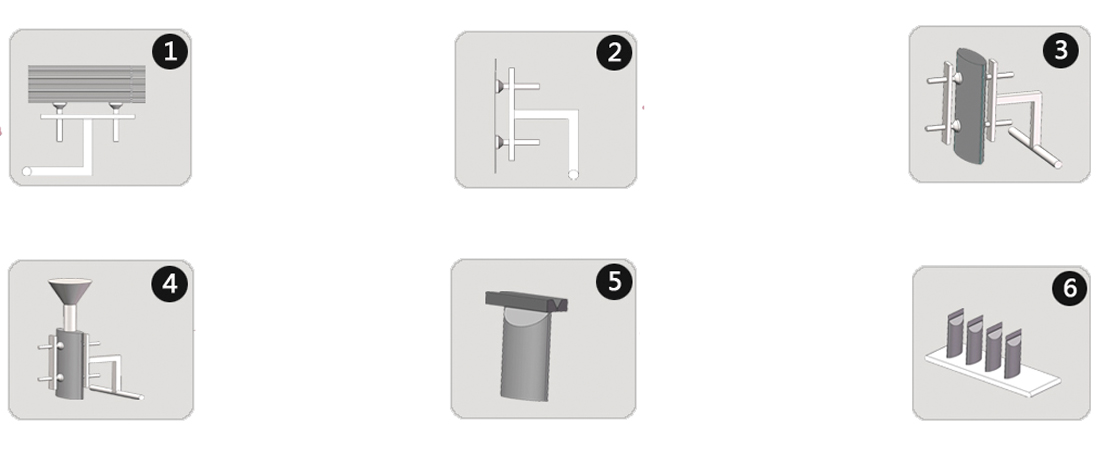

How It Works: The Mini Doypack Pouch Packaging Process

The operation is fully automated. The workflow typically follows these key steps:

Pouch Feeding & Positioning: The operator fills the pouch magazine, and the machine's grippers smoothly pick up and deliver the pouches to the bag-opening and filling position.
Filling: Once positioned, the pouches reach the filling station. A 2-head linear weigher accurately dispenses the exact amount of product (such as chips, cookie or walnuts) into the pouch, ensuring consistent weight and minimizing waste.
Seamless Gas Flushing: An air flushing tube inserts into the bag during the upward movement of the pouch.
Leak-Proof Seal: Heated jaws apply consistent pressure to create a strong, airtight seal.
Cooling & Output: The freshly sealed pouches pause briefly for cooling before the finished packages are dropped onto the output conveyor.

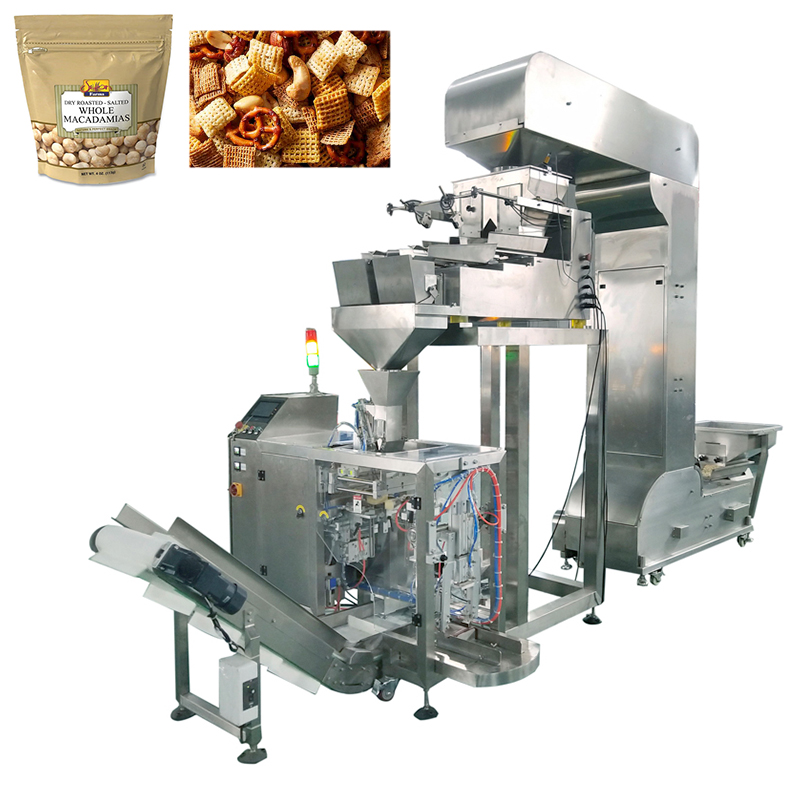

Mini Doypack Packaging Machine for Granules

Integrated with a tripper pan 2-head linear weigher, this packaging system is suitable for weighing and packing big size product, such as chips, walnut, date, olive, biscuit, candy, cookie, dried fruit and other snacks.

The mini pouch packaging machine supports multiple pre-made pouch styles, such as stand-up pouches, flat-bottom bags, spouted pouches, zipper-lock bags, and gusseted bags.

Zipper Bag Mini Pouch Packaging Machine For Snack

Packing Weight	50-3000 grams
Weighing Accuracy	±1-5 grams or 1-3pcs product
Packing Speed	5-10 bags/min
Pouch Style	Premade pouches, such as 3 side seal pouch , stand-up pouch, Zip-lock pouch, gusseted bag
Pouch Size	Width 100mm ~ 300mm, length 100mm ~ 350mm
Air Consumption	0.3~0.4m³/min , 0.6-0.7 Mpa
Power Supply	1 Phase, 220V, 50/60Hz,1.5Kw
Options	Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device

Space-saving footprint with a low-maintenance, 304 stainless steel frame.

Controlled by a premium Mitsubishi PLC for highly reliable operation.

Intuitive HMI touchscreen interface for effortless control.

Adjust bag width on-screen for easy transitions between different sizes.

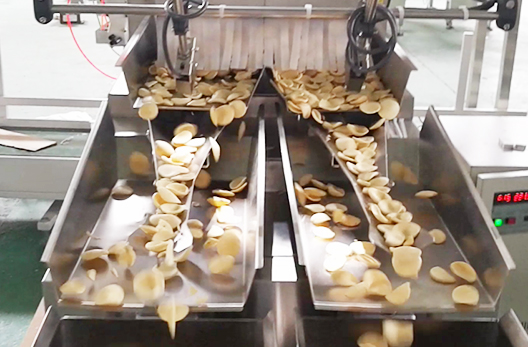

Features a 2-head linear weigher

With 3-level vibrator feeding for big size product

7-inch color touchscreen for smart control

Adjust parameters on-the-fly without stopping.

Tool-free disassembly & interchangeable modular boards.
