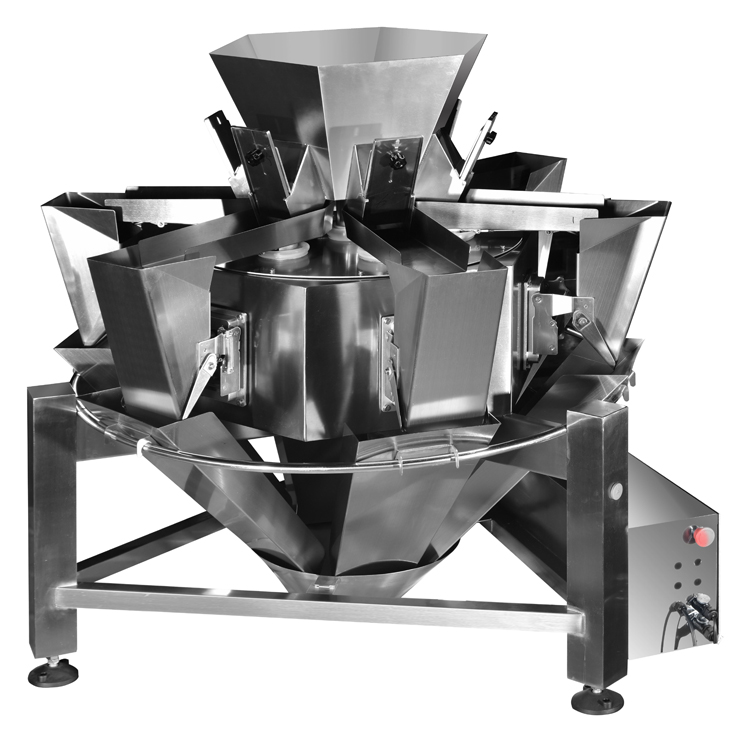

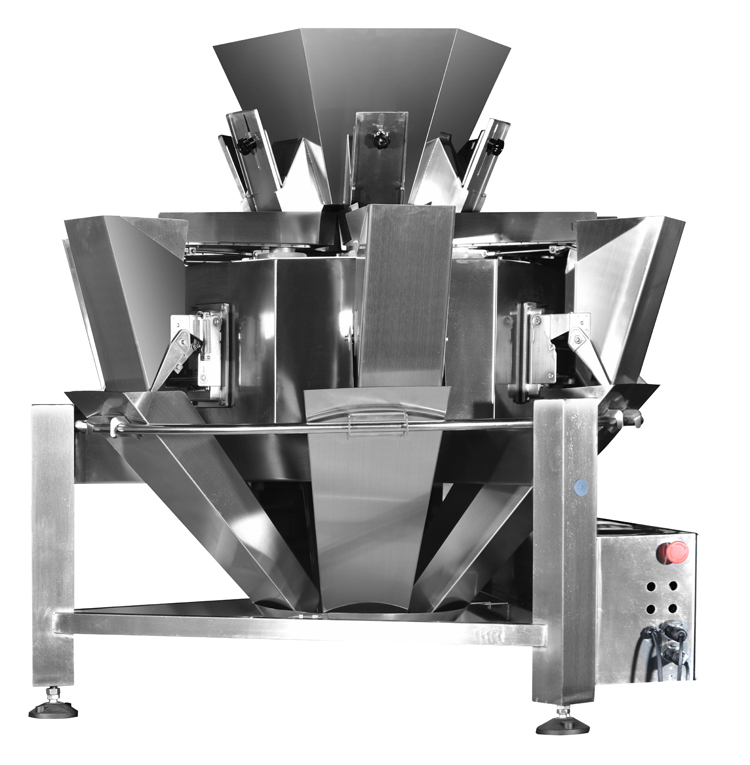

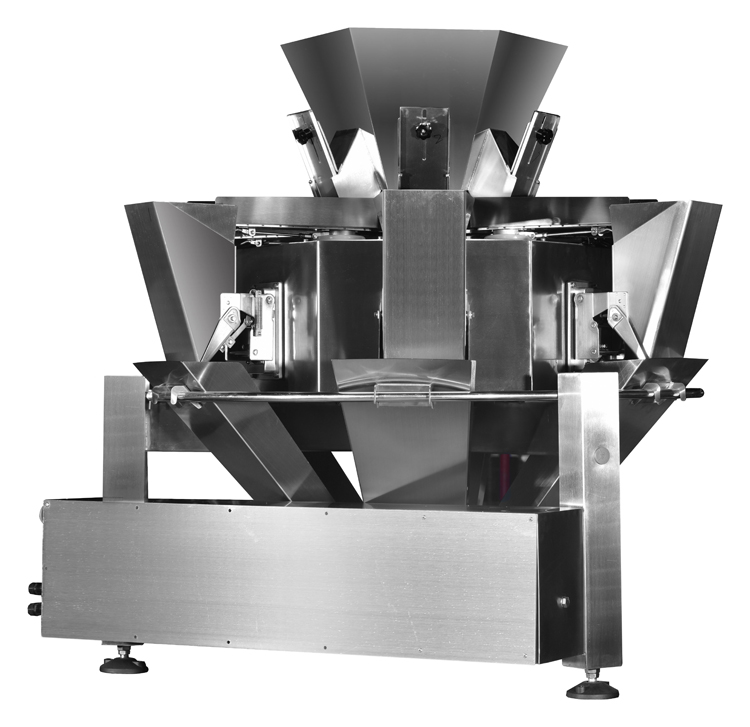

Linear Weigher
Model No. ： WL-P6H30
Function ： Weighing And Filling
Material ： SUS304
Warranty ： 12 Months
Certificate ： CE
TECHNICAL SPECIFICATIONS
Model | WL-P6H30 |
Heads No. | 6 |
Weighing Range | 10-2000g |
Accuracy | ±01.-2g |
Max. Speed | 20 – 60Bags/min |
Weigh Hopper Capacity | 3000ml |
Max. Product Size | 1-2cm |
In-feed Loading Hopper | 100L |
Control System | MCU+ Touch Screen |
Preset Recipes | 10 |
| Max. Mixed-products | 6 |
| Power Supply | AC220V ±10% 50Hz, 1Phase |
SPECIFICATIONS
| Model: | WL-P6H30 |
| Heads No.: | 6 |
| Weighing range: | 100-2000g |
| Accuracy: | ±01.-2g |
| Max. speed: | 20-60bags/min |
| Weigh hopper capacity: | 3000ml |
| Max. product size: | 1-2cm |
| In-feed Loading Hopper: | 100L |
| Control system: | MCU+touch screen |
| Preset Recipes: | 10 |
| Max. mixed-products: | 6 |
| Power supply: | AC220V ±10% 50Hz, 1Phase |
SPECIFICATIONS
No. | Name | Material | Qty | No. | Name | Material | Qty |
| 1 | Support Cup | Steel | 3 | 6 | Linear Vibrated Pan | 304#SS | 6 |
| 2 | Discharge Chute | 304#SS | 1 | 7 | Weighing Hopper | 304#SS | 6 |
| 3 | Electronic Box | 304#SS | 1 | 8 | Working Stand | 304#SS | 1 |
| 4 | Product Adjust Gate | 304#SS | 6 | 9 | Omni-directional Wheels | 3 | |
| 5 | Infeed Channel | 304#SS | 1 |
Drawing
