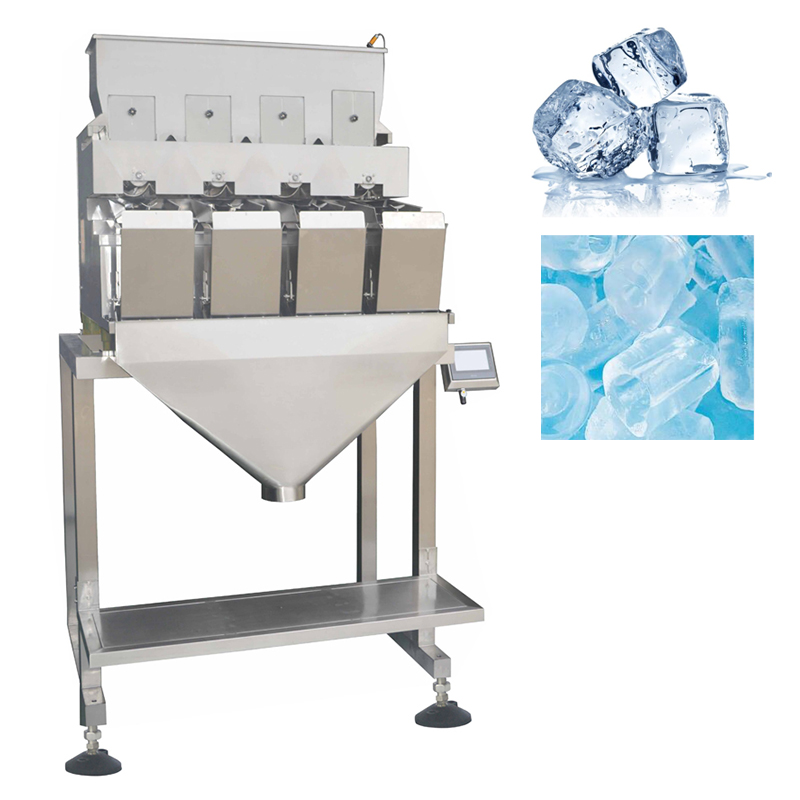

Ice Cube & Tube Ice 4 Head Linear Weigher

Model No. ： WL-TP4H120

Function ： Weighing And Filling

Material ： SUS304

Warranty ： 12 Months

Certificate ： CE

Inquire Now Next Product

Frozen Tube ice and ice cubes tend to melt, refreeze and form bridges in the hopper, which causes unstable weighing and frequent line stoppages. Our screw feeder is specifically designed for this challenge: a large-pitch, low-speed screw delivers the product gently to the weighing hopper, reducing friction heat, crushing and material build-up.

This weighing machine is suitable for the most common sizes of tube ice and ice cubes, ice cube size ranging from 2 to 4cm ,tube ice diameter 2-3.5cm, lenght 3-5cm.

Ice Cube

Weighing Head No.	4
Weighing Hopper Size	12L
Weighing Range	100g-6000g
Weighing Speed	8-20bags/min
Weighing Accuracy	±1-50g or 1-5pcs product
Power Supply	1 Phase, 220V, 50/60Hz

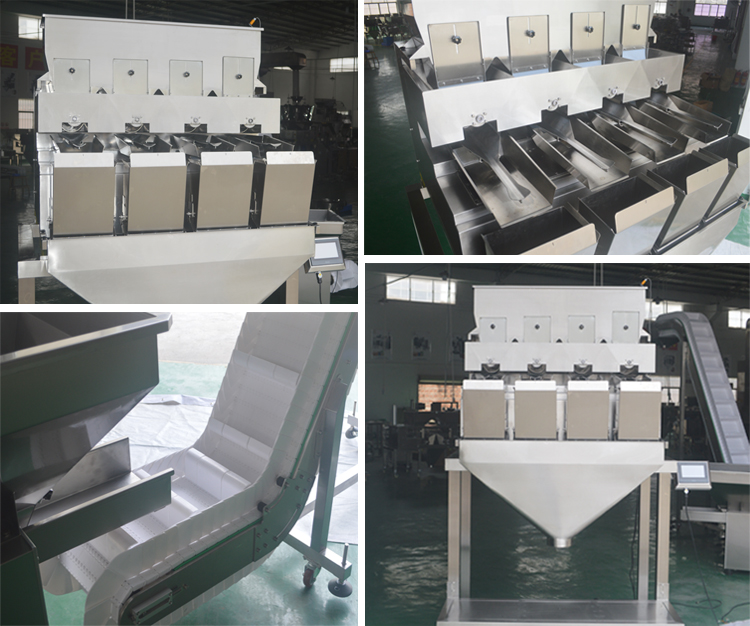

Ice Cube Weighing Machine

v 4-Head Linear Design

4 weighing head work in turn for faster and more stable output.

v Fits Common Ice

Suitable for ice size from 2 cm to 5 cm, adjustable by ice shape.

v Stainless Steel Body

Corrosion-resistant suits cold and humid ice packing workshops.

v Easy Line Integration

Can connect with packing machines, conveyors .
