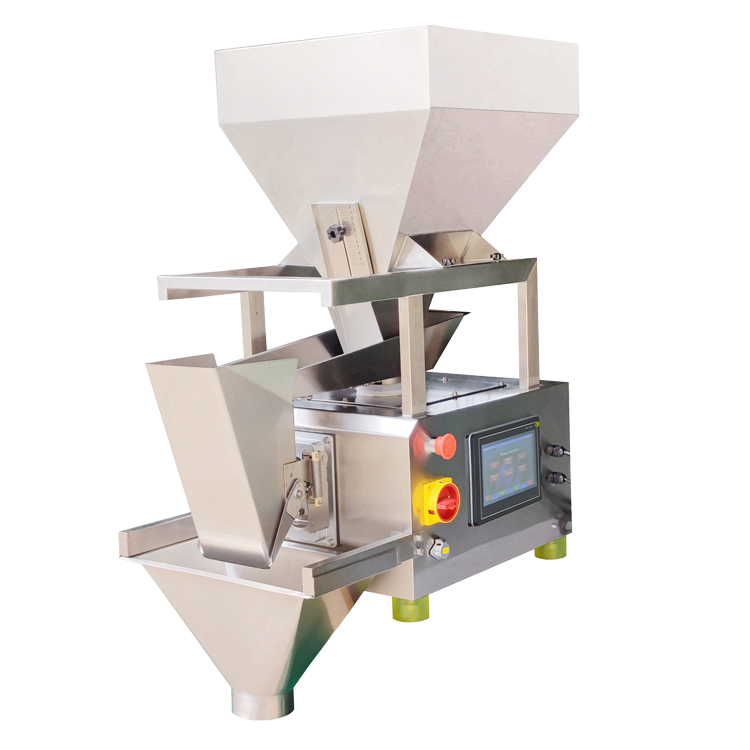

WL-P1H30 3L Single Head Weigher

Inquire Now Next Product

Application

Generally weighing / filling granules, rice, salt, sugar, snack foods, pet foods, dried foods, nuts and pulses, Potato Chips, tea and coffee nuts, food additives, dried fruit, grains, sesame, fertilizer, feed, fodder，etc.

KEY TECHNOLOGY

u 304SUS building material;

u Hopper Capacity 3000ml

u Compact design with small footprint;

u Tool-free install, dismantle and clean;

u Auto learning model for easy-fool operation;

u Coarse and fine feeding material control;

u New generation PLUG-TO-RUN run mode;

u MCU + Touch screen control system;

u Free parameter adjusting during running;

u Self R&D interchangeable main PCB board control;

u Independent Modular Controlling, easy for maintenance

u Up to 10 product recipes preset;

OPTIONS AVAILABLE

l In-feed bulk material conveyor

l Front protection glass enclosure

l Support gantry/stand

l Various size dump chute outlet

l Enlarge size in-feed bunker

l Linear feeder fine flap driven by motor

l 316SUS food contacting parts

WL-P1H30 3L Single Head Weigher

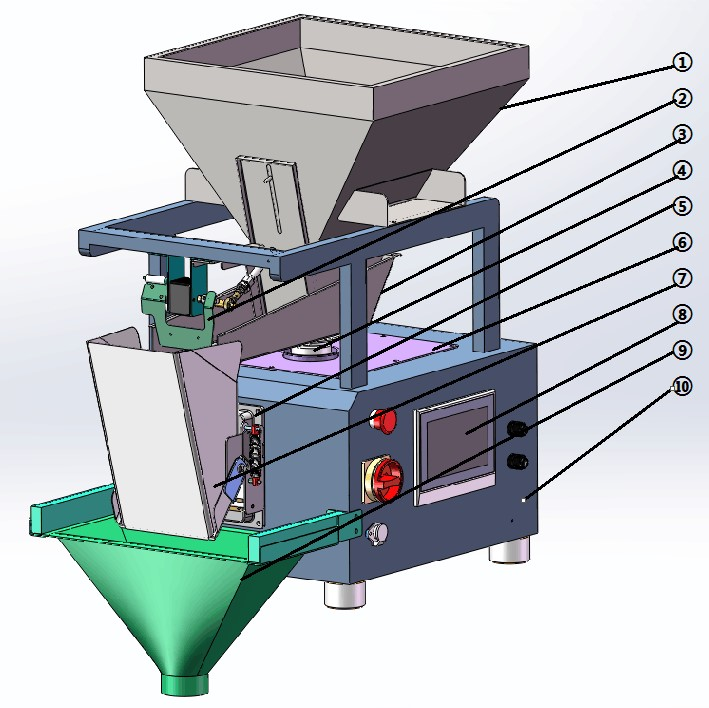

No.	Name	Material	Qty	No.	Name	Material	Qty
1	Storage Funnel	304#SS	1	6	Waterproof Cover	304#SS	1
2	Bulk Gate	304#SS	1	7	Weigh Hopper	304#SS	1
3	Linear Vibrator Pan	304#SS	1	8	Touch Screen	304#SS	1
4	Linear Vibrator	Q235A	1	9	Discharge Chute	304#SS	1
5	Aluminum House	Aluminum	1	10	Machine Frame	304#SS	1

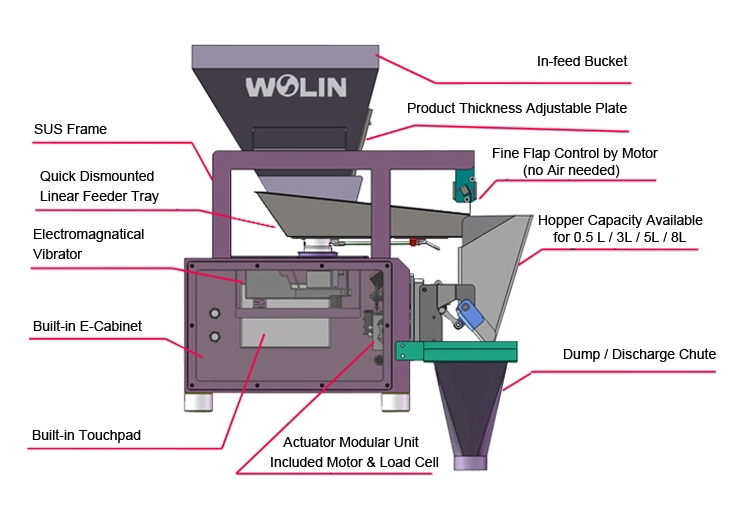

PRODUCT DETAILS

WL-P1H30 3L Single Head Weigher

SPECIFICATIONS

Model	WL-P1H30
Heads No.	1
Weighing Range	10 -2000g
Accuracy	±0.1 – 2g per head
Max. Speed	1 - 12Bags/min
Weigh Hopper Capacity	3000ml
In-feed Loading Hopper	50L
Control System	MCU+ Touch Screen
Preset Recipes	10
Max. Mixed Products	1
Power Supply	AC220V ±10% 50Hz, 1Phase

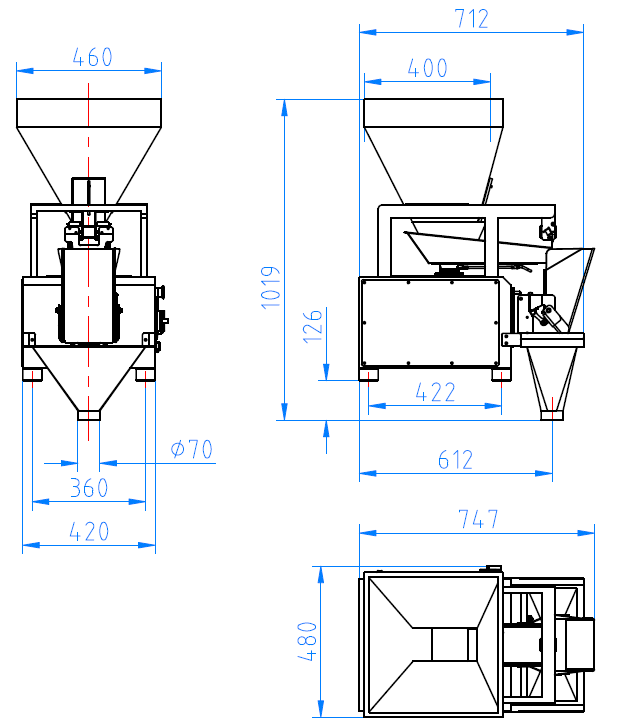

Drawing

WL-P1H30 3L Single Head Weigher
