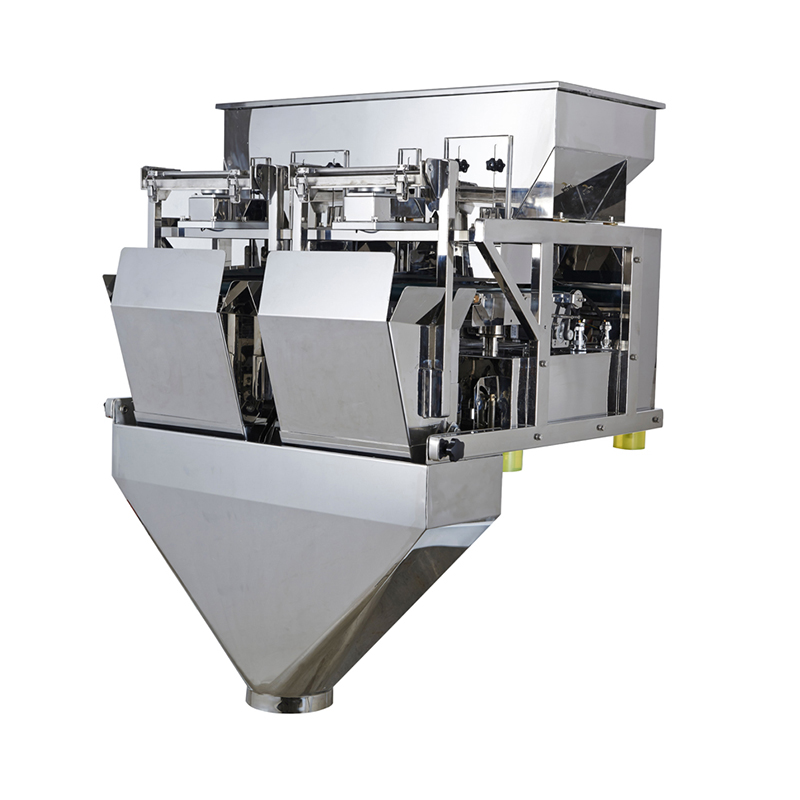

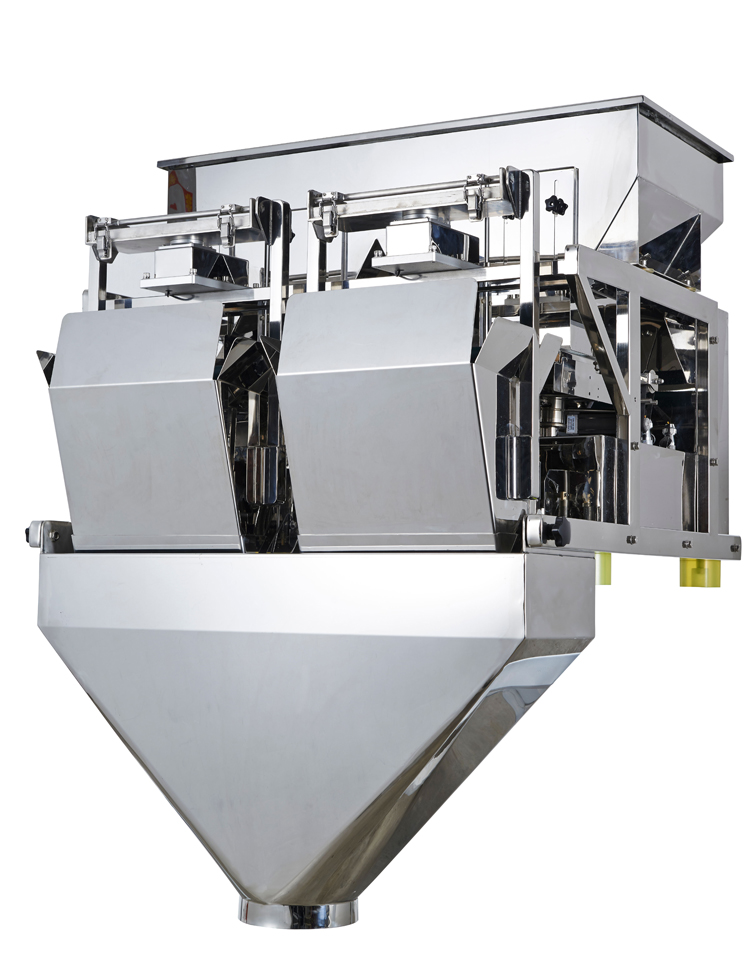

WL-P2H200 20L 2 Head Weigher

It is suitable for weighing all kinds of small fine solid granules or powder with good fluidity (no dust), such as rice, seeds, sugar, salt, sesame, chicken essence, soybeans, mung beans, coffee beans, coffee powder, cat litter, washing powder, etc.

Inquire Now Next Product

Application

WL-P2H200 20L 2 Head Weigher

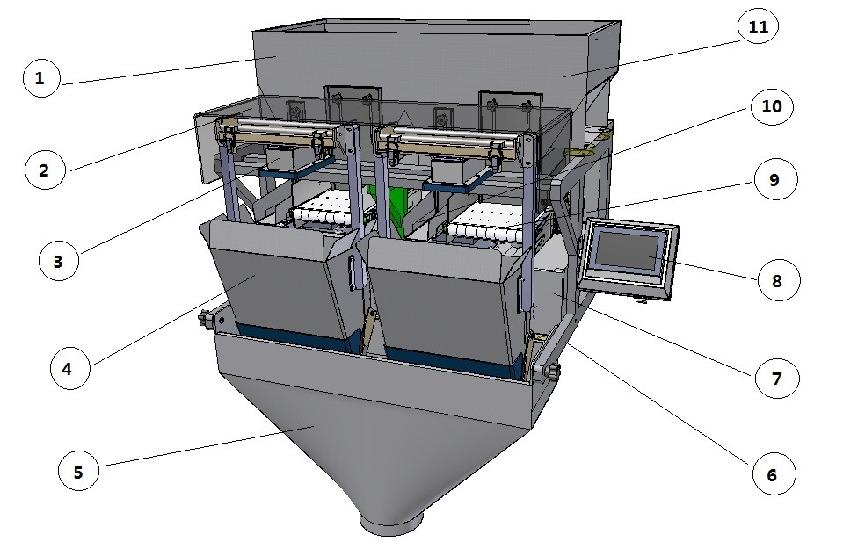

No.	Name	Material	Qty	No.	Name	Material	Qty
1	Storage Funnel	304#SS	1	7	Machine Frame	304#SS	1
2	Windproof Cover	304#SS	1	8	Touch Screen	304#SS	1
3	Load Cell House	304#SS	2	9	Transfer Belt	Plastic	2
4	Weigh Hopper	304#SS	2	10	Fine Feeder Pans	304#SS	2
5	Discharge Chute	304#SS	1	11	Storage Funnel	304#SS	1
6	Machine Bracket	304#SS	2

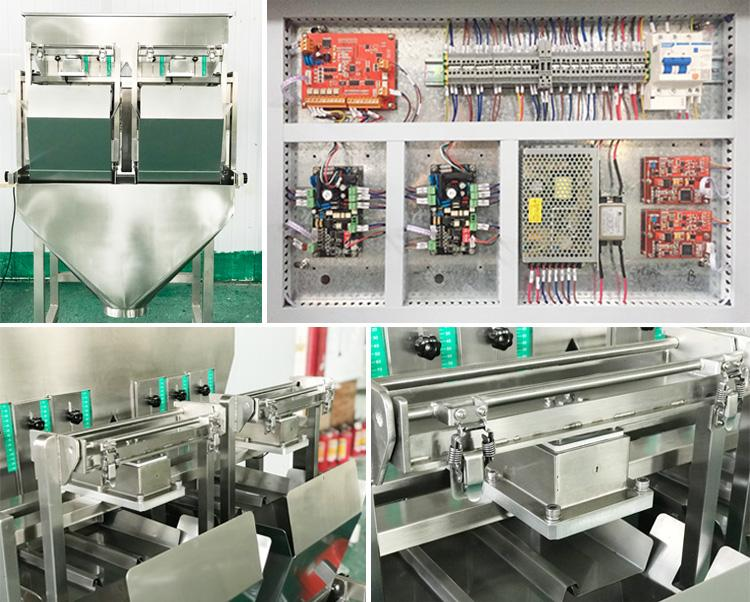

WL-P2H200 20L 2 Head Weigher

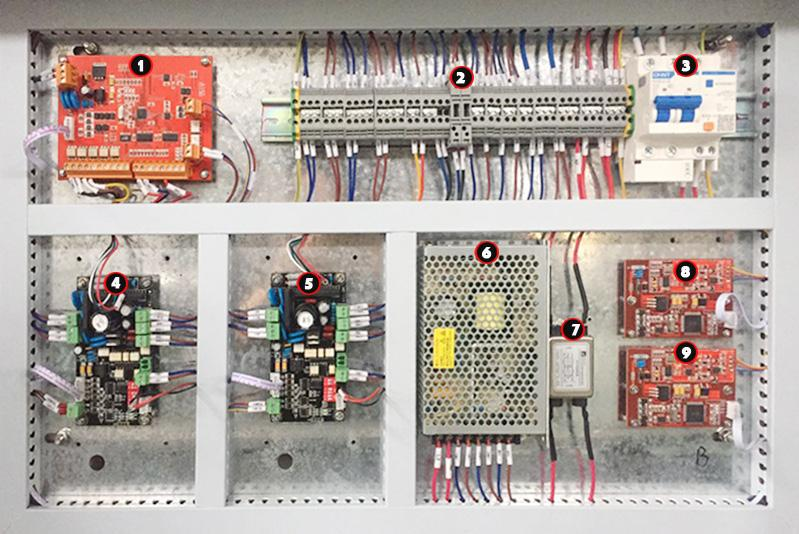

1. MCU Control System

2. Terminals of Electronic Devices (Weidmuller)

3. Breaker

4. PCB Modular Board for #2 Weighing Hopper

5. PCB Modular Board for #1 Weighing Hopper

6. Power Supply

7. Filter (Improve Anti-interference of Load Cell)

8. #1 AD Board (Connect with Load Cell, reads weight)

9. #2 AD Board (Connect with Load Cell, reads weight)

ELECTRONICS INFORMATION

NO.	Name	Brand	Origin
1	Breaker	CHINT	China
2	Transformer	NDR	China
3	Filter	SGEMC	China
4	Power Switch	Shanghai HF	China
5	MCU	Weighlin	China
6	Touch Screen	Kinco	China
7	Load Cell	Hotsensor	China
8	Terminals	Weidmuller	Germany
9	Vibrator Coil	HLB	China
10	Chip Resistor Capacitor	YAGEO	Taiwan
11	High Accuracy MELF Resistance for AB Card	BDS Electronics Inc	China
12	High Accuracy MELF Resistance for AB Card	VIKING	Japan
13	High Stability Tantalum Capacity for AD Card	AVX	USA
14	Conversion Chip	TI & National Semiconductor	USA
15	Filter Electrolytic Capacitor	Rubycon	Japan
16	Plate Isolation Optocoupler	Toshiba & Fairchild	Japan & USA
17	3-surge and Lightning Protection Components	Brightking	Taiwan
18	Main CPU Chip	ATMEL	USA
19	Industrial Power Supply Control Core	ON Semiconductor & NS	USA
20	M8 Load Cell Connector	LANIG	China
