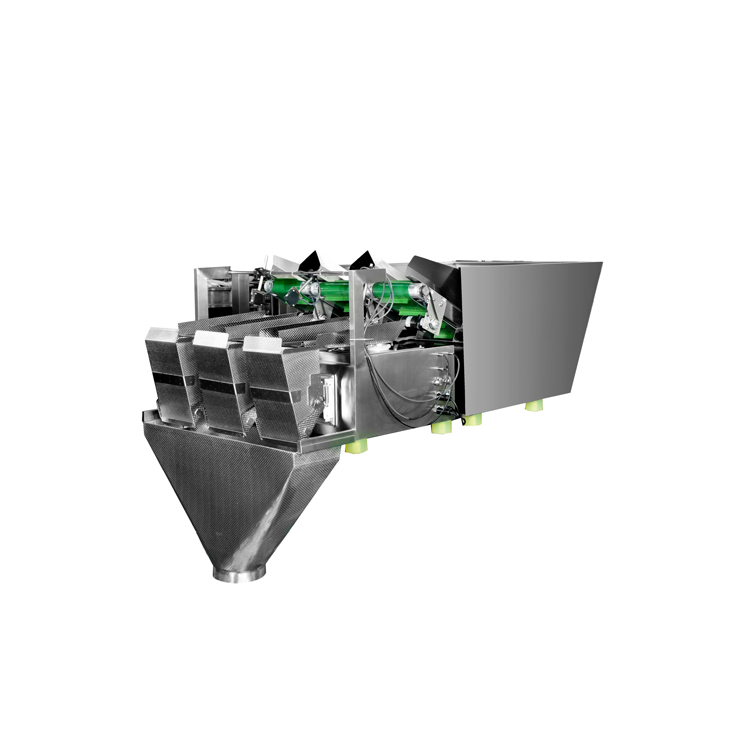

WL-P3H80S Salad 8L 3 Head Weigher

OVERVIEW

Based on years' experience, we develop and build this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and material thickness, small invest, fast return, limited footprint, easy operation and maintenance, comparable speed and accuracy on big weight with multi-head, popular with small and Mid-plant, save labor and material, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized. Coarse and fine material feeding design, work alone or integrated with cup, bucket, bottle, tray packing machine, VFFS, mini daypack machine, etc. Widely apply for rice, seeds, fodder, beans, sugar, popcorn, chips, nuts, pet food, tea and metal or plastic parts, etc.

From 2018, we have released our second generation 'plug to run' fool-operation control weigher. In this case, the weigher will auto study the material feeding amount according to the material feeding thickness and vibration to get exact weight. When we run the weigher, just press auto-study for about 2min, the weigher will get good accuracy and speed than old version. For the same material, just change the weight on the screen, all is done, the weigher will run automatically. It will be easy to make training or maintenance.

Inquire Now Next Product

Application

Cut cabbage, lettuce, spinach, leek, Chinese chive, garlic seedling, celery, water celery, balsam, chrysanthemum, rape, Brassica, ginseng, yellow okra, rich cabbage, Taiwan sweet potato leaves, purple vegetables, water spinach, chrysanthemum, amaranth,

FEATURES

*High precision digital load cell

*Belt coarse feeder + Cross Vibrator Feeding

*7 inch color touch screen

*Multilingual control system

*Different level authority to facilitate use and management

*New generation MCU automatic learning products are more intelligent

*The parameters can be adjusted accordingly during operation

*Interchangeable integrated modular circuit board

*304 stainless steel body with compact design

*Free tool parts release, easy clean and maintain

*Stand alone or integrated with packing line

SPECIFICATIONS

Model	WL-DP3H80S
Single Weighing Range	500-5000g
Weighing Accuracy*	±1~30g
Weighing Speed	6-10PPM
Weighing Hopper volume	8L
Control System	MCU+Touch screen
Preset Program No.	15
Max. Mixed Products	1
Power Requirement	AC220V ±10% 50Hz(60Hz)
Packing Size&Weight	11501100680mm, 450KG
Options	Dimple Plate/Mini Stand, Etc.

*Subject to product shape, density, fluidity, target weight, etc.

Drawing

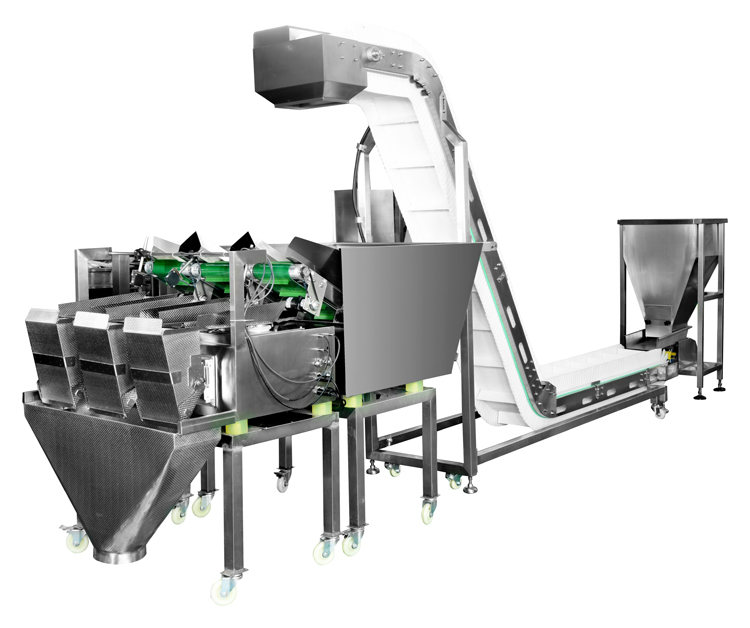

WL-P3H80S Salad 8L 3 Head Weigher
