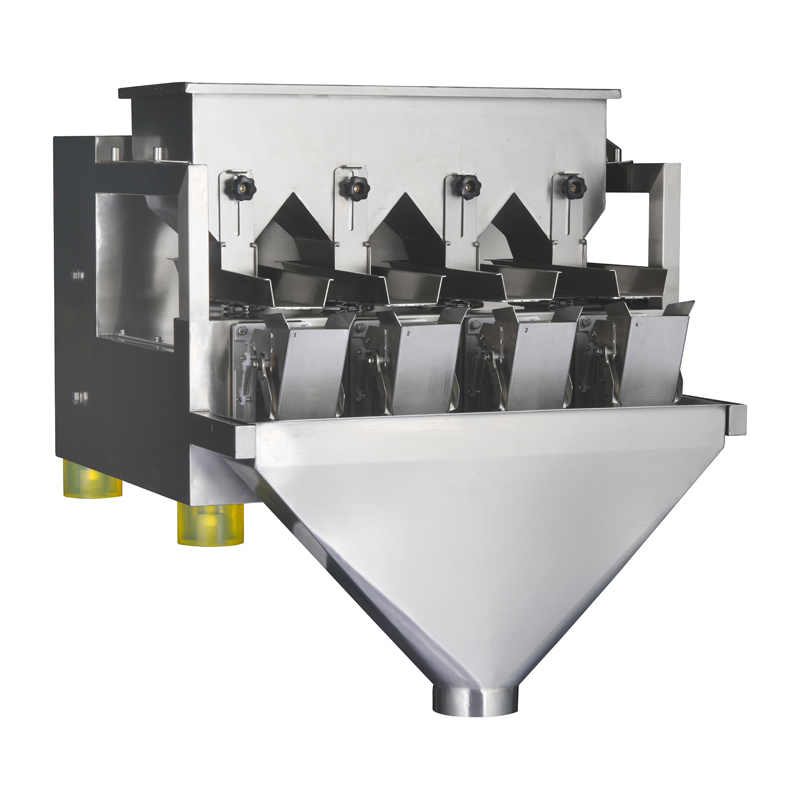

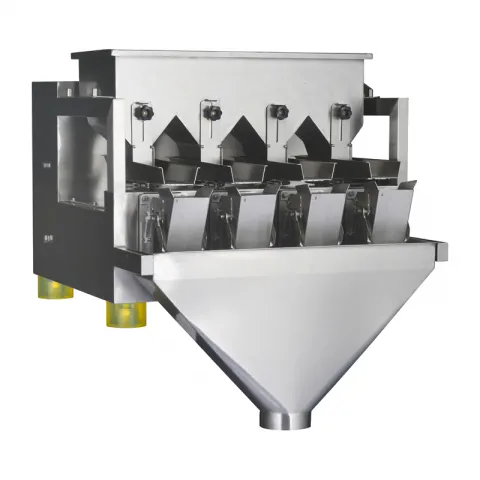

WL-P4H05 0.5L 4 Head Weigher

OVERVIEW

Based on years' experience, we develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and material thickness, small invest, fast return, limited footprint, easy operation and maintenance, comparable speed and accuracy on big weight with multihead, popular with small and Mid-plant, save labor and material, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized.

From 2018, we have released our new generation 'plug to run' fool-operation control weigher. In this case, the weigher will auto study the material feeding amount according to the material feeding thickness and vibration to get exact weight. When we run the weigher, just press auto-study for about 2min, the weigher will get good accuracy and speed than old version. For the same material, just change the weight on the screen, all is done, the weigher will run automatically.

Inquire Now Next Product

Application

Generally weighing / filling granules, rice, salt, sugar, snack foods, pet foods, dried foods, nuts and pulses, tea and coffee nuts, food additives, dried fruit, grains, sesame, fertilizer, feed, fodder, granola, muesli, cereals, seeds, berries, chocolate nuts, powder，etc.

KEY TECHNOLOGY

u 304SUS building material;

u 4-head with capacity 500ml to each

u Compact design with small footprint;

u Tool-free install, dismantle and clean;

u Auto learning model for easy-fool operation;

u Coarse and fine feeding material control;

u New generation PLUG-TO-RUN run mode;

u MCU + Touch screen control system;

u Free parameter adjusting during running;

u Self R&D interchangeable main PCB board control;

u Independent Modular Controlling, easy for maintenance

u Up to 10 product recipes preset;

OPTIONS AVAILABLE

l In-feed bulk material conveyor

l Front protection glass enclosure

l Support gantry/stand

l Various size dump chute outlet

l Enlarge size in-feed bunker

l Linear feeder fine flap driven by motor

l 316SUS food contacting parts

WL-P4H05 0.5L 4 Head Weigher

TECHNICAL SPECIFICATIONS

Model	WL-P4H05
Heads No.	4
Weighing Range	1 - 150g per head
Accuracy	±0.1 – 1g
Max. Speed	10 - 50bags/min
Weigh Hopper Capacity	500ml
In-feed Loading Hopper	22L
Control System	MCU+ Touch Screen
Preset Recipes	10
Max. Mixed Materials	4
Power Supply	AC220V ±10% 50Hz, 1Phase

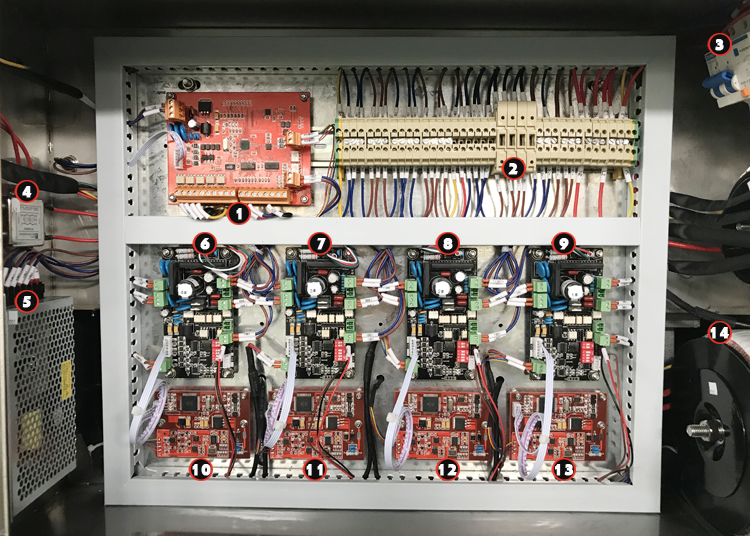

ELECTRIC CABINET

WL-P4H05 0.5L 4 Head Weigher

1. MCU Control System

2. Terminals of Electronic Devices (Weidmuller)

3. Breaker

4. Filter

5. Power Supply

6. PCB Modular Board for #4 Weighing Hopper

7. PCB Modular Board for #3 Weighing Hopper

8. PCB Modular Board for #2 Weighing Hopper

9. PCB Modular Board for #1 Weighing Hopper

10. AD Board for #4 Weighing Hopper

11. AD Board for #3 Weighing Hopper

12. AD Board for #2 Weighing Hopper

13. AD Board for #1 Weighing Hopper

14. Transformer

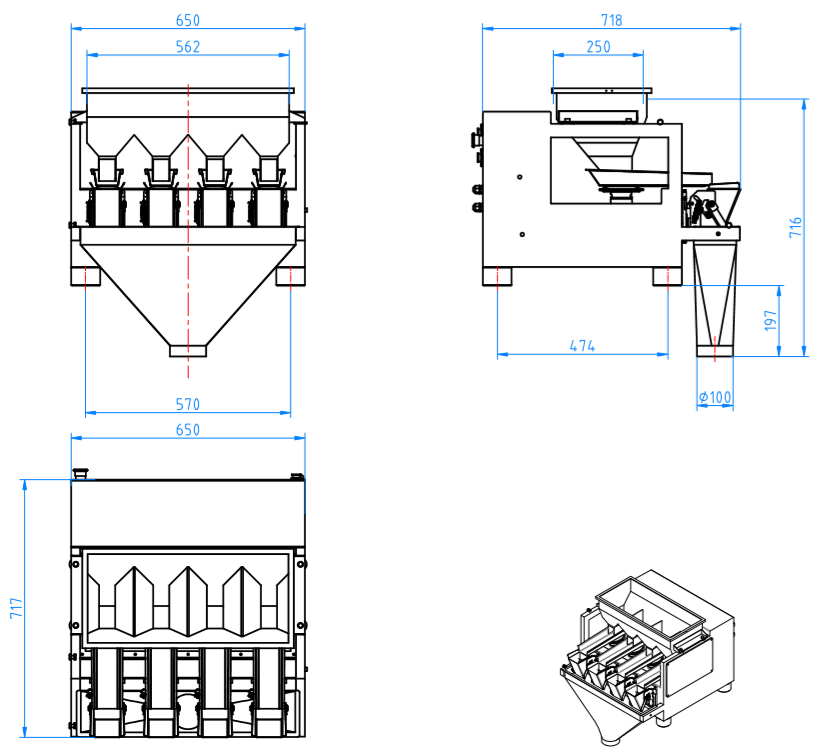

Drawing
