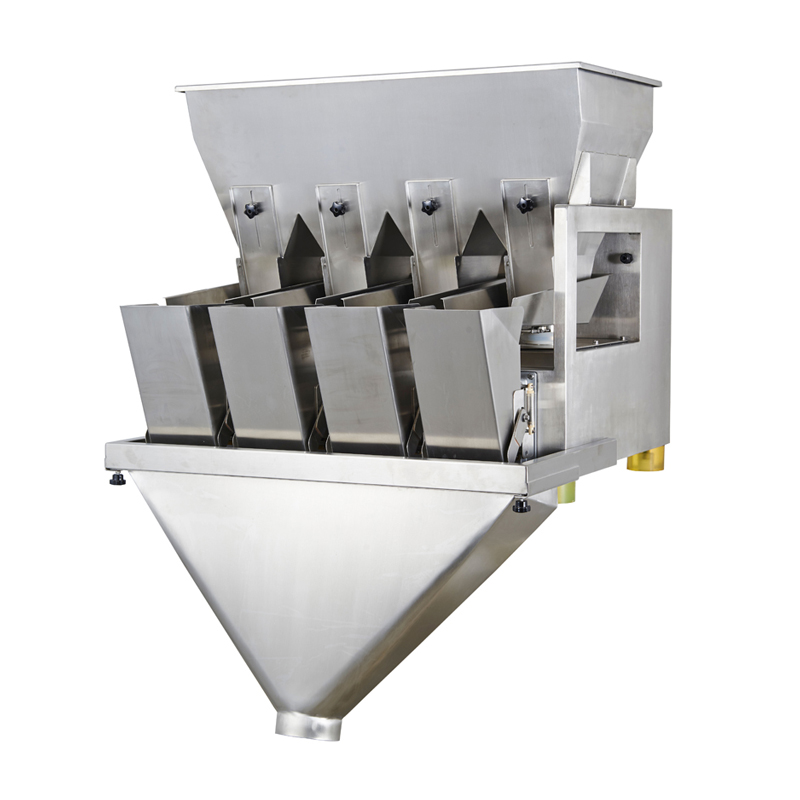

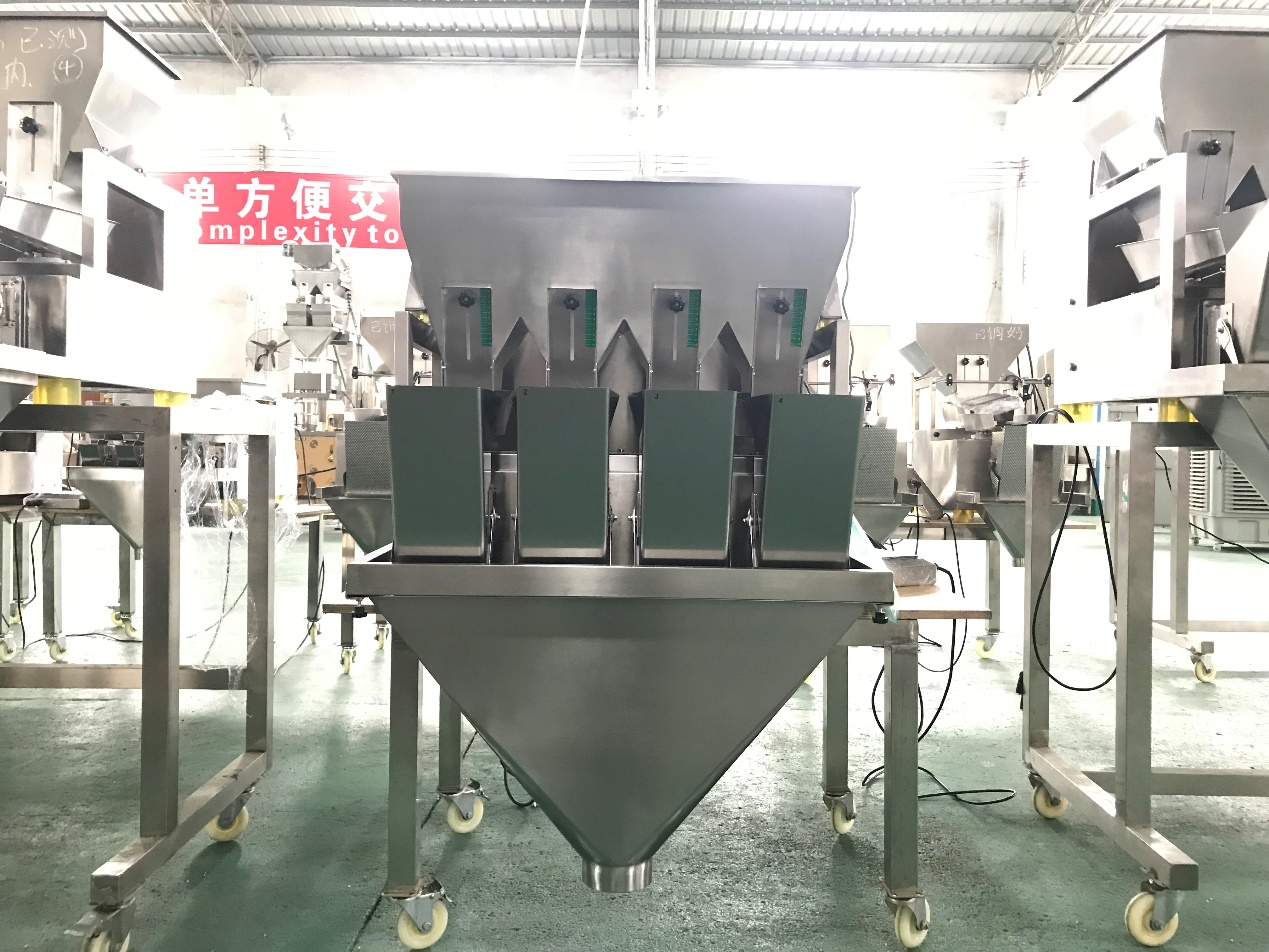

WL-P4H30 3L 4 Head Weigher

OVERVIEW

Based on years' experience, we develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and material thickness, small invest, fast return, limited footprint, easy operation and maintenance, comparable speed and accuracy on big weight with multihead, popular with small and Mid-plant, save labor and material, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized.

From 2018, we have released our new generation 'plug to run' fool-operation control weigher. In this case, the weigher will auto study the material feeding amount according to the material feeding thickness and vibration to get exact weight. When we run the weigher, just press auto-study for about 2min, the weigher will get good accuracy and speed than old version. For the same material, just change the weight on the screen, all is done, the weigher will run automatically.

Inquire Now Next Product

Application

Generally weighing / filling granules, rice, salt, sugar, snack foods, pet foods, dried foods, nuts and pulses, tea and coffee nuts, food additives, dried fruit, grains, sesame, fertilizer, feed, fodder, granola, muesli, cereals, potato fries & chips seeds, berries, chocolate nuts, powder，etc.

KEY TECHNOLOGY

u 304SUS building material;

u 4-head with capacity 3000ml to each

u Compact design with small footprint;

u Tool-free install, dismantle and clean;

u Auto learning model for easy-fool operation;

u Coarse and fine feeding material control;

u New generation PLUG-TO-RUN run mode;

u MCU + Touch screen control system;

u Free parameter adjusting during running;

u Self R&D interchangeable main PCB board control;

u Independent Modular Controlling, easy for maintenance

u Up to 10 product recipes preset;

OPTIONS AVAILABLE

l In-feed bulk material conveyor

l Front protection glass enclosure

l Support gantry/stand

l Various size dump chute outlet

l Enlarge size in-feed bunker

l Linear feeder fine flap driven by motor

l 316SUS food contacting parts

TECHNICAL SPECIFICATIONS

Model	WL-P4H30
Heads No.	4
Weighing Range	10 - 2000g per head
Accuracy	±0.1-2g
Max. Speed	10 - 50bags/min
Weigh Hopper Capacity	3000ML
In-feed Loading Hopper	90L
Control System	MCU+ Touch Screen
Preset Recipes	10
Max. Mixed Materials	4
Power Supply	AC220V ±10% 50Hz, 1Phase

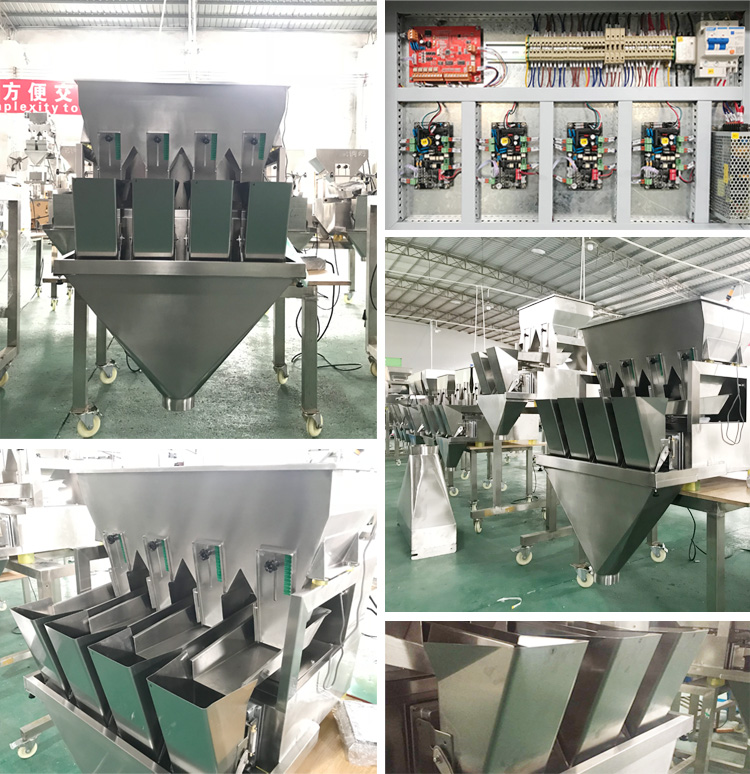

WL-P4H30 3L 4 Head Weigher

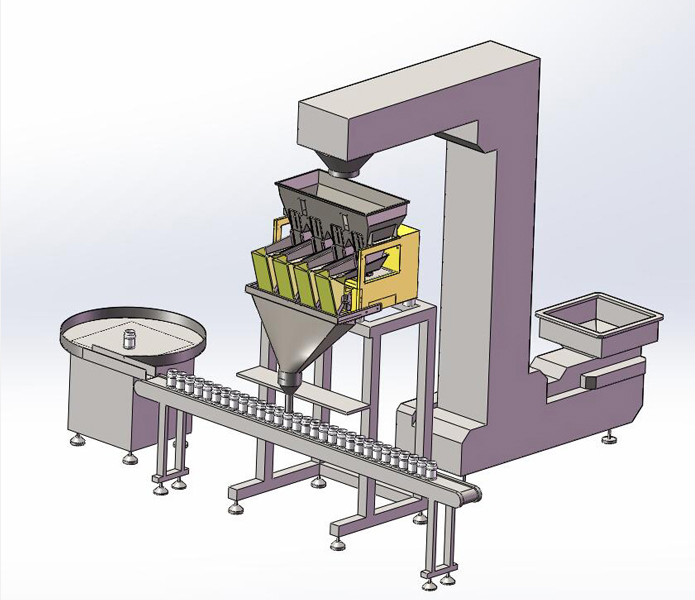

INTEGRATIONS: Z Shape Modular Elevator 4-head Linear Weigher / Working Standing / Bottle-feeding Rotary Total / Belt Conveyor

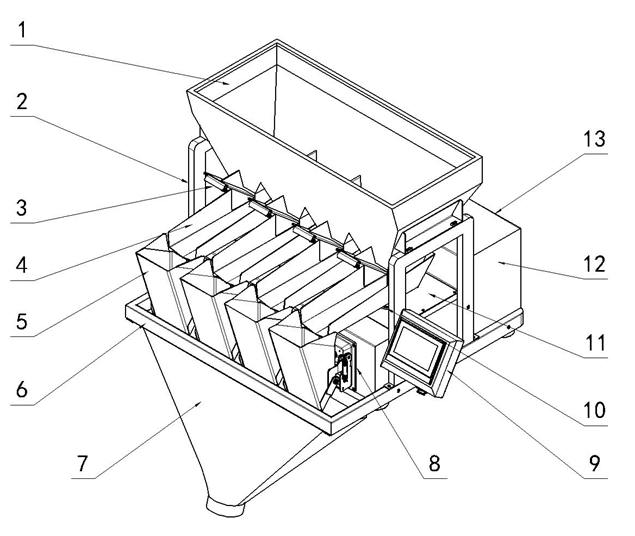

STRUCTURE

WL-P4H30 3L 4 Head Weigher

No.	Name	Material	Qty	No.	Name	Material	Qty
1	Storage Funnel	304#SS	1	8	Aluminum House	304#SS	4
2	Storage Funnel Bracket	304#SS	2	9	Touch Screen	304#SS	1
3	Product Adjust Plate	304#SS	4	10	Linear Vibrator	304#SS	4
4	Linear Vibrator Pan / Feeder	304#SS	4	11	Waterproof Cover	304#SS	1
5	Weigh Hopper	304#SS	4	12	Electronic Box	304#SS	1
6	Discharge Chute Bracket	304#SS	1	13	Electronic Box Door	304#SS	1
7	Discharge Chute	304#SS	1

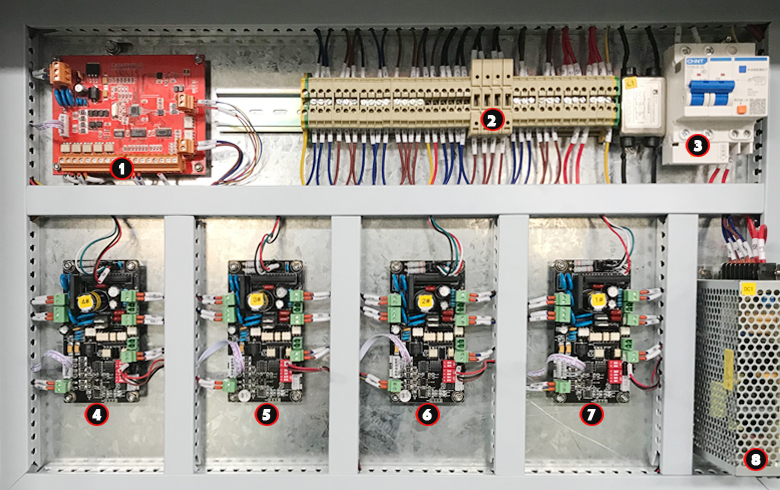

ELECTRIC CABINET

WL-P4H30 3L 4 Head Weigher

1. MCU Control System

2. Terminals of Electronic Devices (Weidmuller)

3. Breaker

4. PCB Modular Board for #4 Weighing Hopper

5. PCB Modular Board for #3 Weighing Hopper

6. PCB Modular Board for #2 Weighing Hopper

7. PCB Modular Board for #1 Weighing Hopper

8. Power Supply

ELECTRONICS INFORMATION

NO.	Name	Brand	Origin
1	Breaker	CHINT	China
2	Transformer	NDR	China
3	Filter	SGEMC	China
4	Power Switch	Shanghai HF	China
5	MCU	Weighlin	China
6	Touch Screen	Kinco	China
7	Load Cell	Hotsensor	China
8	Terminals	Weidmuller	Germany
9	Vibrator Coil	HLB	China
10	Chip Resistor Capacitor	YAGEO	Taiwan
11	High Accuracy MELF Resistance for AB Card	BDS Electronics Inc	China
12	High Accuracy MELF Resistance for AB Card	VIKING	Japan
13	High Stability Tantalum Capacity for AD Card	AVX	USA
14	Conversion Chip	TI & National Semiconductor	USA
15	Filter Electrolytic Capacitor	Rubycon	Japan
16	Plate Isolation Optocoupler	Toshiba & Fairchild	Japan & USA
17	3-surge and Lightning Protection Components	Brightking	Taiwan
18	Main CPU Chip	ATMEL	USA
19	Industrial Power Supply Control Core	ON Semiconductor & NS	USA
20	M8 Load Cell Connector	LANIG	China

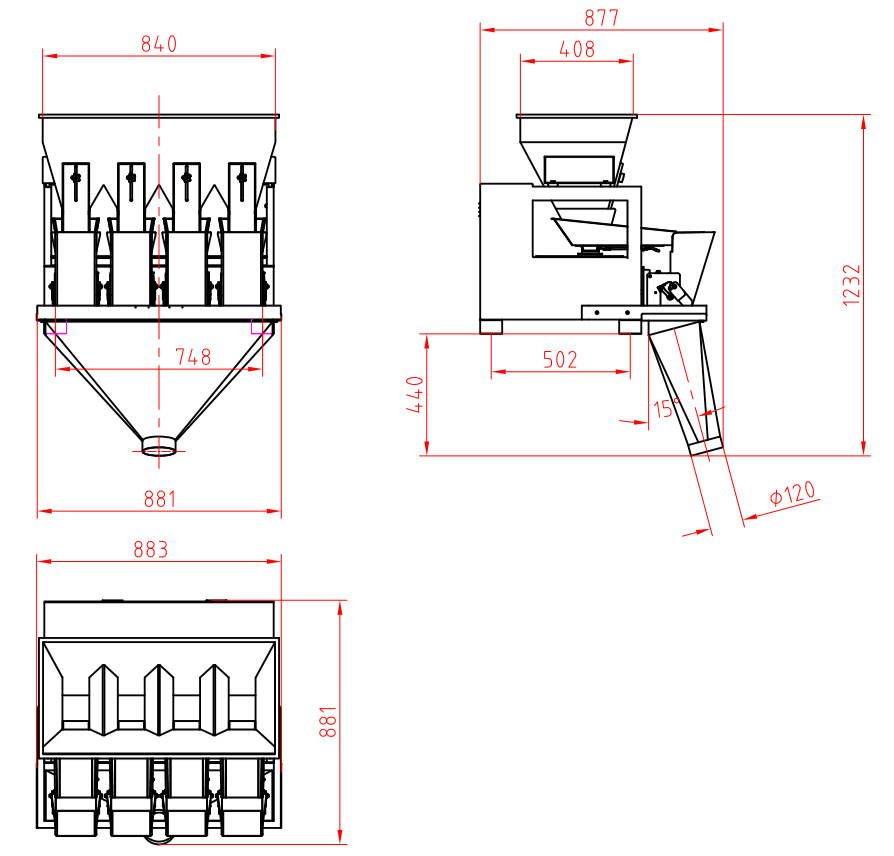

Drawing

WL-P4H30 3L 4 Head Weigher
