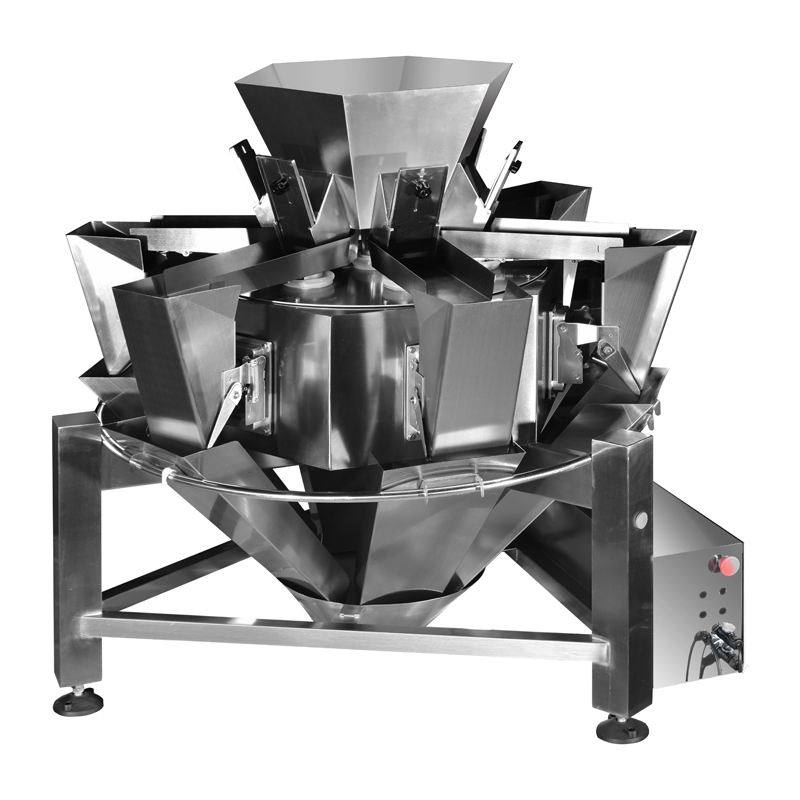

WL-P6H30 3L 6 Head Weigher

OVERVIEW

Based on years' experience, we develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and material thickness, small invest, fast return, limited footprint, easy operation and maintenance, comparable speed and accuracy on big weight with multihead, popular with small and Mid-plant, save labor and material, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized.

From 2018, we have released our new generation 'plug to run' fool-operation control weigher. In this case, the weigher will auto study the material feeding amount according to the material feeding thickness and vibration to get exact weight. When we run the weigher, just press auto-study for about 2min, the weigher will get good accuracy and speed than old version. For the same material, just change the weight on the screen, all is done, the weigher will run automatically.

Economic – High Speed – Reliable Performance, the innovation is special for granules, such like salt, rice , sugar, seeds, etc. Weighing range 10 – 2000g, weighing speed up to 20 ~ 60bags/min，mixed 1-6 different materials.

Inquire Now Next Product

KEY TECHNOLOGY

u 304SUS building material;

u Compact design with small footprint;

u Tool-free install, dismantle and clean;

u Auto learning model for easy-fool operation;

u Coarse and fine feeding material control;

u New generation PLUG-TO-RUN run mode;

u MCU + Touch screen control system;

u Free parameter adjusting during running;

u Self R&D interchangeable main PCB board control;

u Independent Modular Controlling, easy for maintenance

u Up to 10 product recipes preset;

u Mixed 1-6 different materials

OPTIONS AVAILABLE

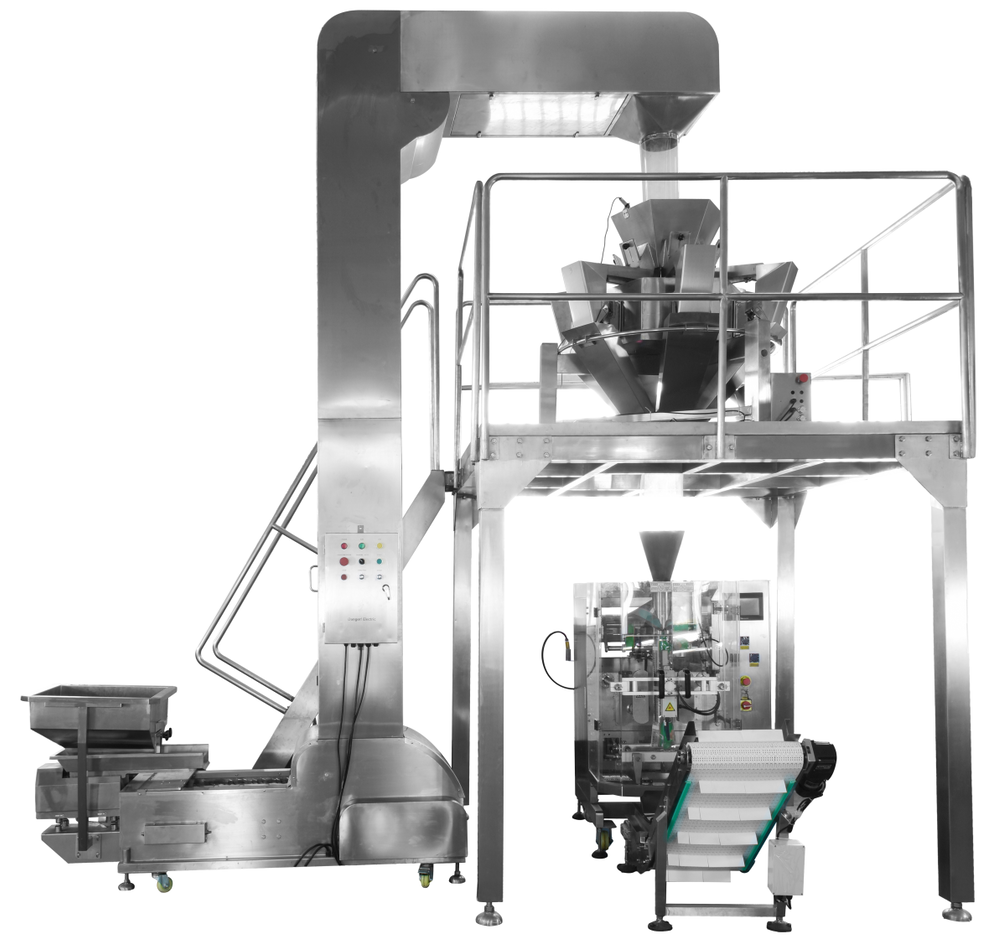

l In-feed bulk material conveyor

l Protection glass enclosure

l Support gantry/stand

l Various size dump chute outlet

l Enlarge size in-feed bunker

l Linear feeder fine flap driven by motor

l 316SUS food contacting parts

SPECIFICATIONS

WL-P6H30 3L 6 Head Weigher

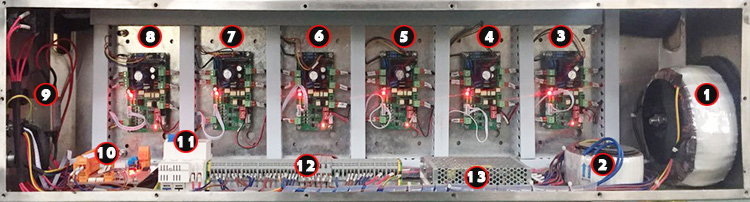

1. #1 Transformer (Output 110V for Vibrated Feeder)

2. #2 Transformer (Output 20V for Weighing Hopper)

3. PCB Modular Board for #6 Weighing Hopper

4. PCB Modular Board for #5 Weighing Hopper

5. PCB Modular Board for #4 Weighing Hopper

6. PCB Modular Board for #3 Weighing Hopper

7. PCB Modular Board for #2 Weighing Hopper

8. PCB Modular Board for #1 Weighing Hopper

9. Filter

10. MCU Control System

11. Breaker

12. Terminals of Electronic Devices (Weidmuller)

13. Power Supply

SPECIFICATIONS

WL-P6H30 3L 6 Head Weigher

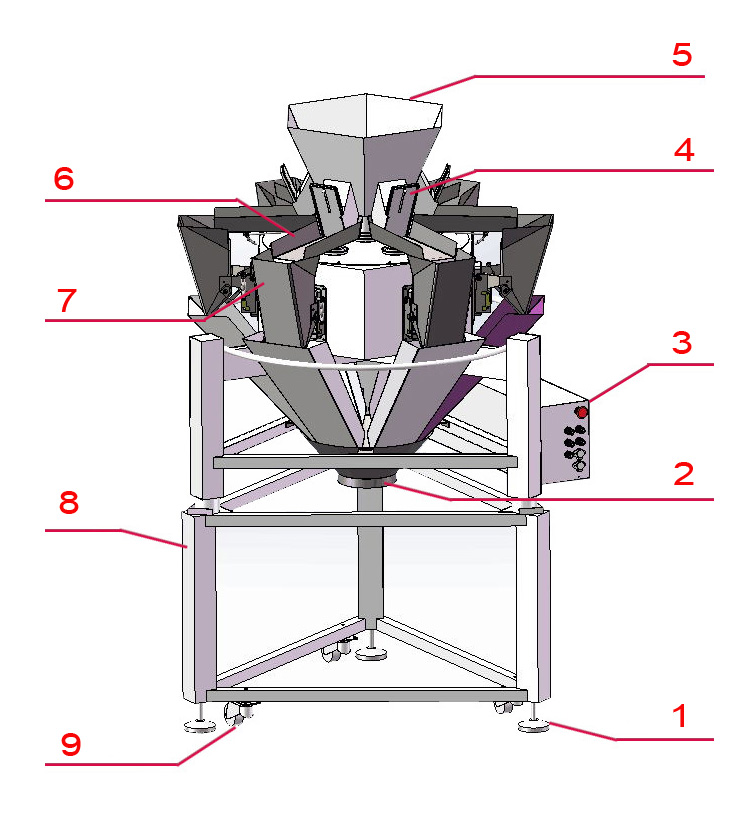

No.	Name	Material	Qty	No.	Name	Material	Qty
1	Support Cup	Steel	3	6	Linear Vibrated Pan	304#SS	6
2	Discharge Chute	304#SS	1	7	Weighing Hopper	304#SS	6
3	Electronic Box	304#SS	1	8	Working Stand	304#SS	1
4	Product Adjust Gate	304#SS	6	9	Omni-directional Wheels		3
5	Infeed Channel	304#SS	1

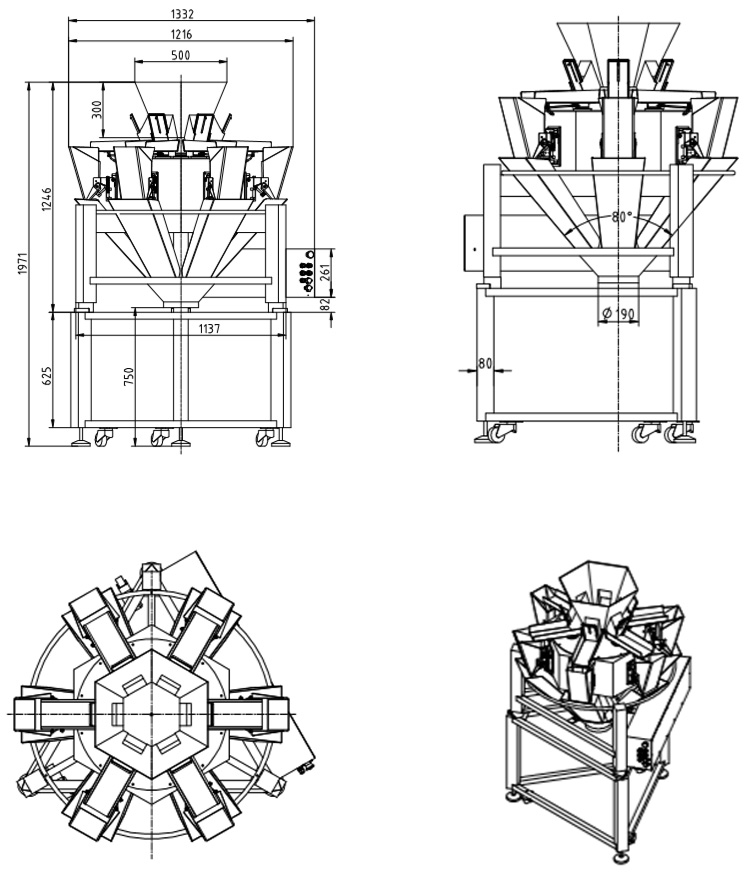

Drawing

WL-P6H30 3L 6 Head Weigher
