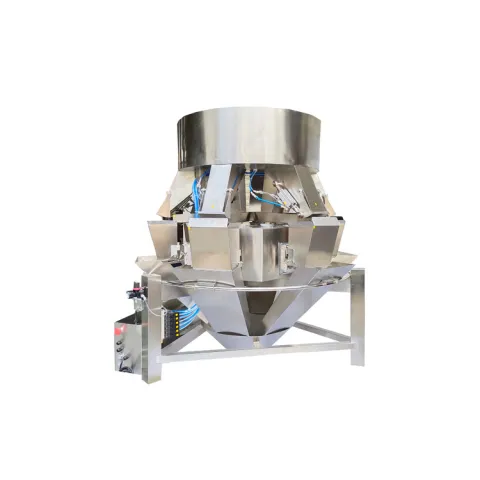

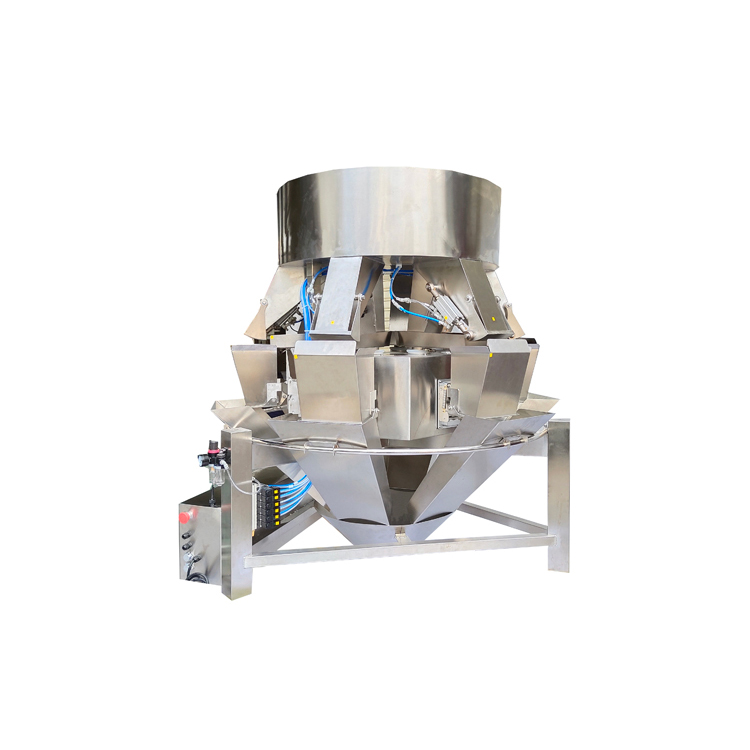

WL-P6H80G Free Drop 8L 6 Head Weigher

Inquire Now Next Product

Application

Application: It is suitable for weighing all kinds of small fine solid granules or powder with good fluidity (no dust) Such as rice, seeds, sugar, salt, sesame, chicken essence, soybeans, mung beans, coffee beans, coffee powder, cat litter, washing powder, etc

FEATURES

*High precision digital load cell

*Gravity Fall + Vibrated Feeder, ensures Speed/Accuracy

*7 inch color touch screen

*Multilingual control system

*Different level authority to facilitate use and management

*New generation MCU automatic learning products are more intelligent

*The parameters can be adjusted accordingly during operation

*Interchangeable integrated modular circuit board

*304 stainless steel body with compact design

*Free tool parts release, easy clean and maintain

*Stand alone or integrated with packing line

SPECIFICATIONS

Model	WL-P6H80G
Single Weighing Range	1000-5000g
Weighing Accuracy	±1~10g
Weighing Speed	10-40PPM
Weighing Hopper volume	8L
Control System	MCU+Touch screen
Preset Program No.	15
Max. Mixed Products	6
Power Requirement	AC220V ±10% 50Hz(60Hz)
Packing Size&Weight	1430L1430W1748H 380KGS
Options	Feeding Conveyor/Timing Hopper /Mini Stand, Etc.

*Subject to product shape, density, fluidity, target weight, etc.

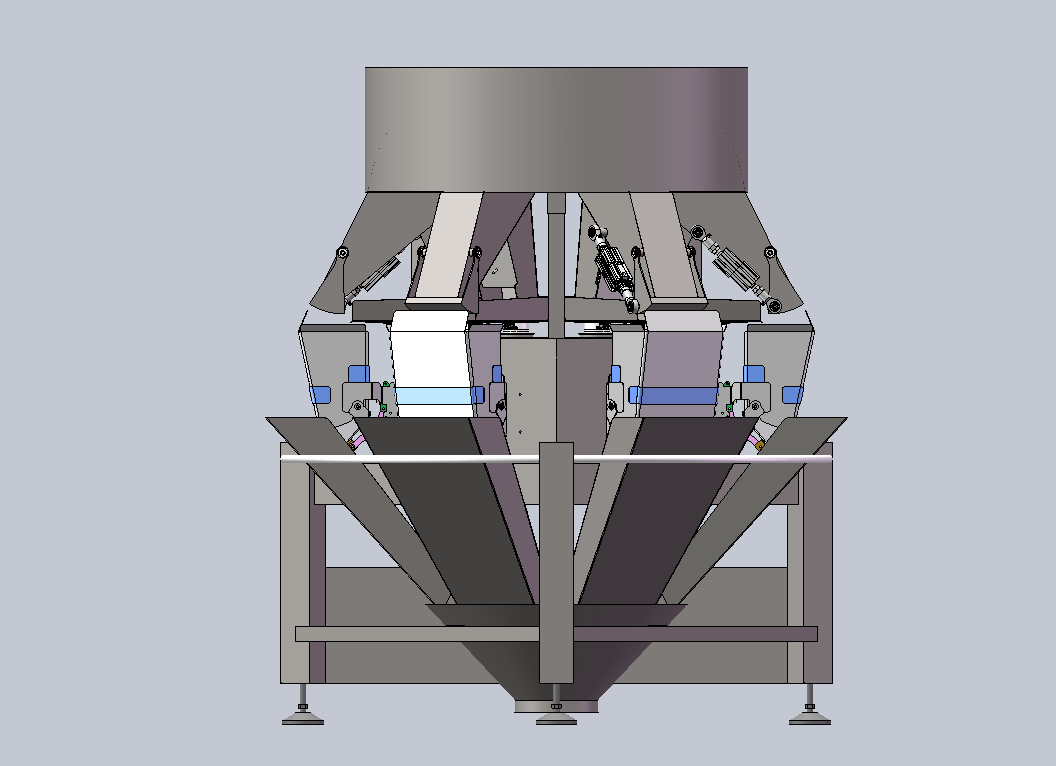

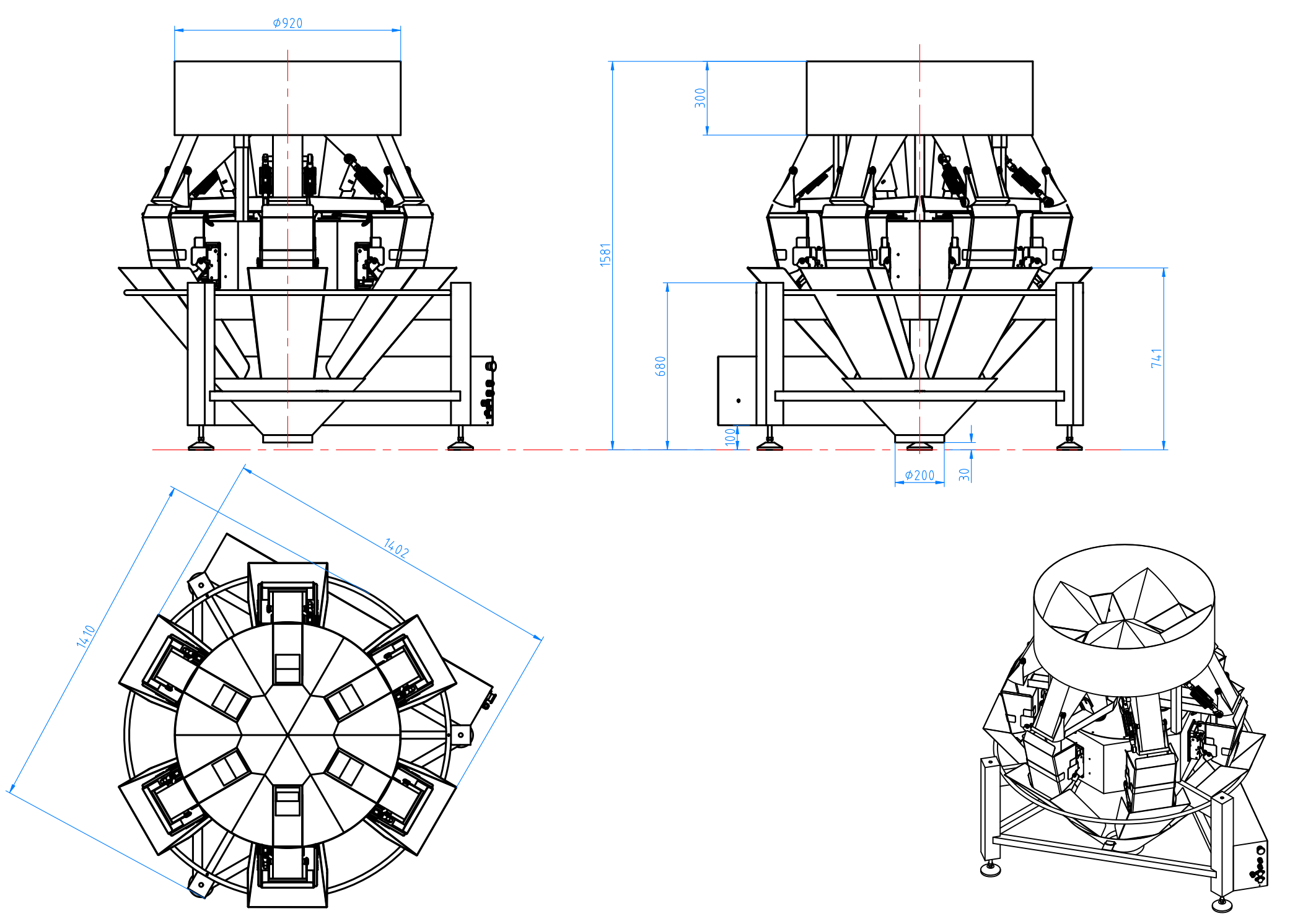

Drawing

WL-P6H80G Free Drop 8L 6 Head Weigher
