WL-TP1H50 Triplex 5L Single Head Weigher

KEY TECHNOLOGY

u 304SUS building material;

u Triple Feeder Pans

u Powerful Rear Vibrator

u Hopper Capacity 5000ml

u Compact design with small footprint;

u Tool-free install, dismantle and clean;

u Coarse and fine feeding material control;

u MCU + Touch screen control system;

u Free parameter adjusting during running;

u Self R&D interchangeable main PCB board control;

u Independent Modular Controlling, easy for maintenance

u Up to 10 product recipes preset;

TECHNICAL SPECIFICATIONS

Model	WL-TP1H50
Heads No.	1
Weighing Range	100 -3000g per head
Accuracy	±1 - 5g or 1 – 3 pieces
Max. Speed	1 - 10Bags/min
Weigh Hopper Capacity	5000ml
In-feed Loading Hopper	50L
Control System	MCU+ Touch Screen
Preset Recipes	10
Power Supply	AC220V ±10% 50Hz, 1Phase

Inquire Now Next Product

Application

Generally weighing / filling granules, rice, salt, sugar, snack foods, pet foods, dried foods, nuts and pulses, tea and coffee nuts, food additives, dried fruit, grains, sesame, fertilizer, feed, fodder, granola, muesli, cereals, potato fries & chips seeds, berries, chocolate nuts, powder，etc.

PRODUCT DETAILS

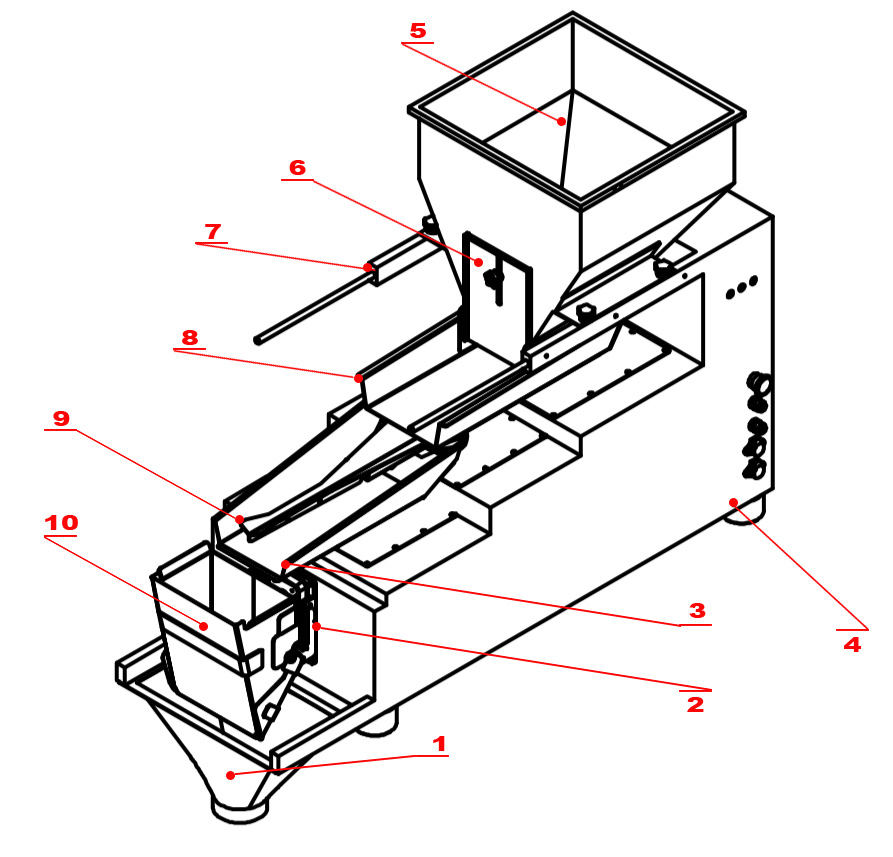

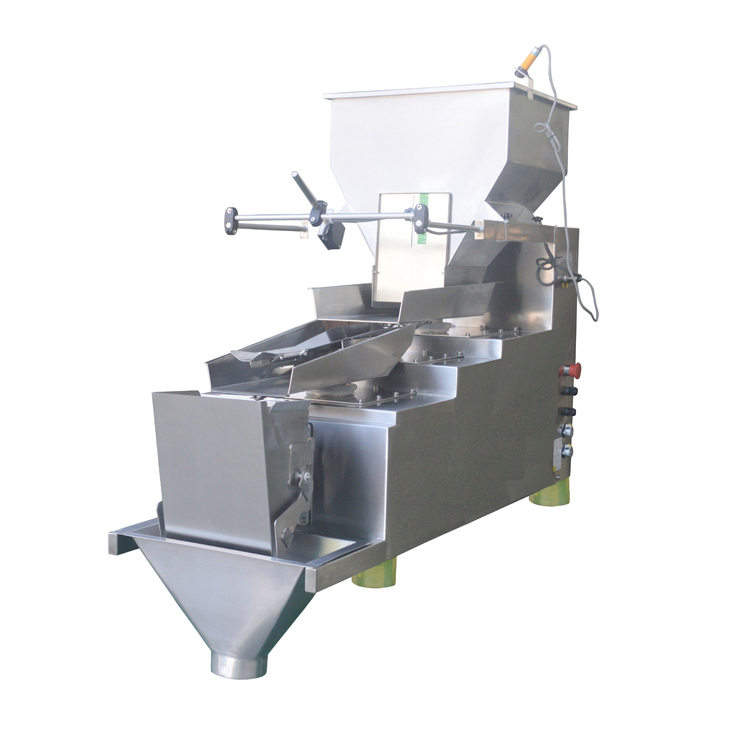

WL-TP1H50 Triplex 5L Single Head Weigher

ELECTRONICS INFORMATION

NO.	Name	Brand	Origin
1	Breaker	CHINT	China
2	Transformer	NDR	China
3	Filter	SGEMC	China
4	Power Switch	Shanghai HF	China
5	MCU	Weighlin	China
6	Touch Screen	Kinco	China
7	Load Cell	Hotsensor	China
8	Terminals	Weidmuller	Germany
9	Vibrator Coil	HLB	China
10	Chip Resistor Capacitor	YAGEO	Taiwan
11	High Accuracy MELF Resistance for AB Card	BDS Electronics Inc	China
12	High Accuracy MELF Resistance for AB Card	VIKING	Japan
13	High Stability Tantalum Capacity for AD Card	AVX	USA
14	Conversion Chip	TI & National Semiconductor	USA
15	Filter Electrolytic Capacitor	Rubycon	Japan
16	Plate Isolation Optocoupler	Toshiba & Fairchild	Japan & USA
17	3-surge and Lightning Protection Components	Brightking	Taiwan
18	Main CPU Chip	ATMEL	USA
19	Industrial Power Supply Control Core	ON Semiconductor & NS	USA
20	M8 Load Cell Connector	LANIG	China

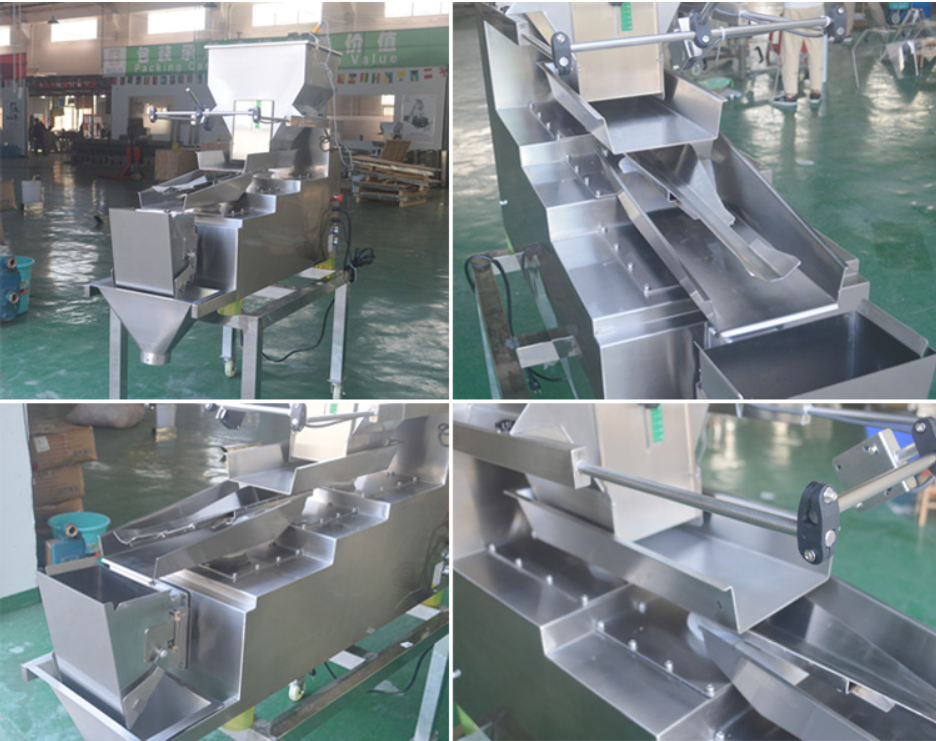

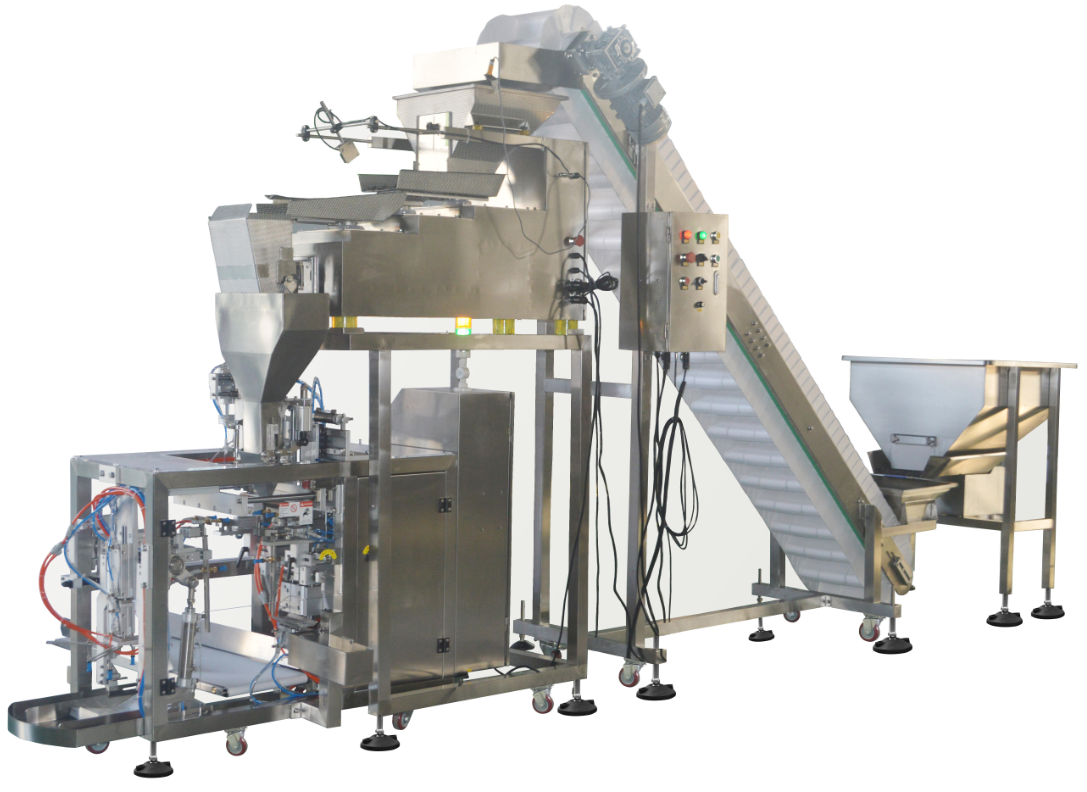

Reference Photo

WL-TP1H50 Triplex 5L Single Head Weigher

INTEGRATIONS: Vibrated Loading Hopper / Inclined Chain Elevator / Smart Linear Weigher / Working Stand / Doypack Packing Machine / Output Horizontal Conveyor

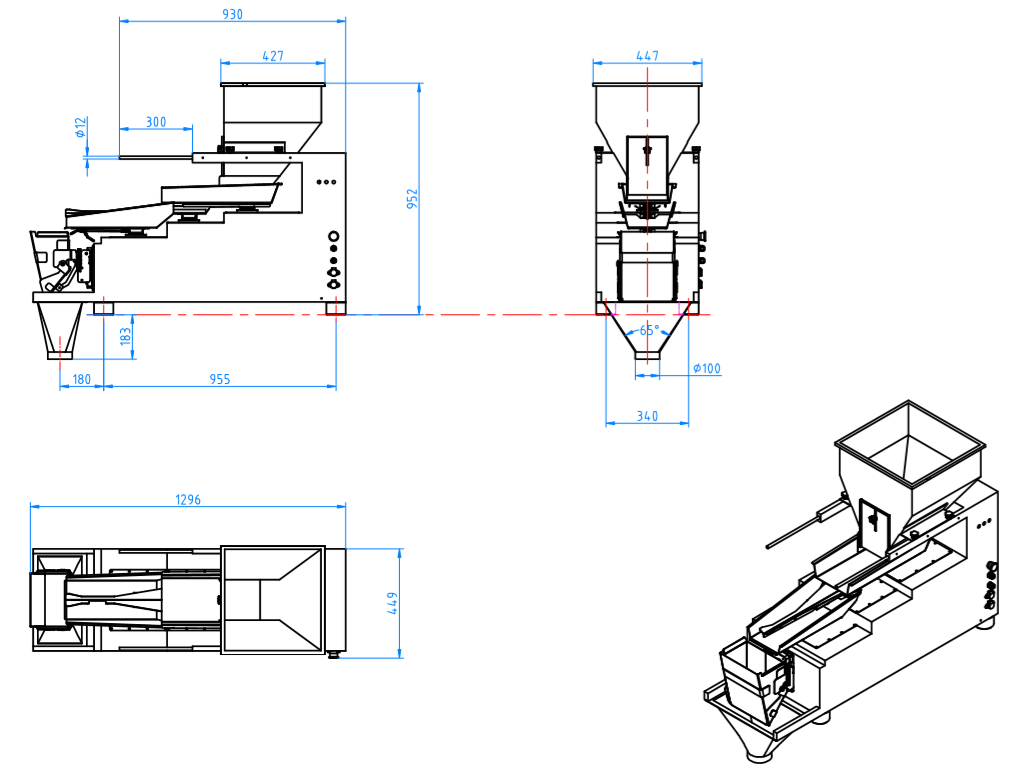

Drawing
