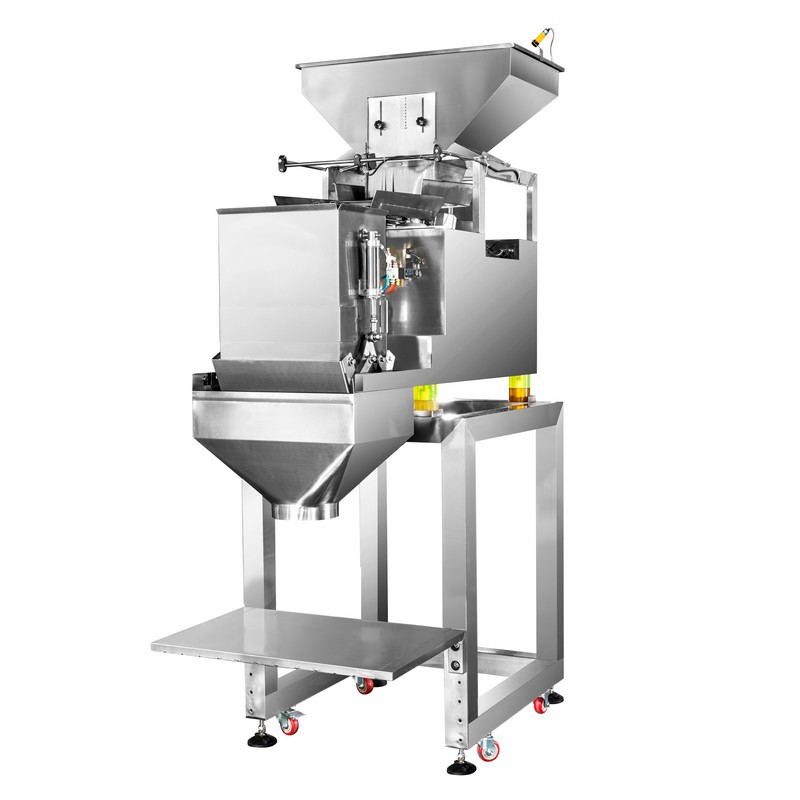

Linear Weigher
3 level vibrator feeding with independent fine feeding pan
304SUS material design;
Tool-less release for easy clean.
Adjustable material thickness.
Free set the weigher during running.
High precision load cell.
7" Touch screen control.
Hopper open driven by step motor;
FEATURES
*High precision digital load cell
*7 inch color touch screen
*Multilingual control system
*Different level authority to facilitate use and management
*New generation MCU control
*The parameters can be adjusted accordingly during operation
*Tripple 4 vibrator feeding
*304 stainless steel body with compact design
*Free tool dismantle for easy clean and maintenance
*Stand alone or integrated with packing line
SPECIFICATIONS

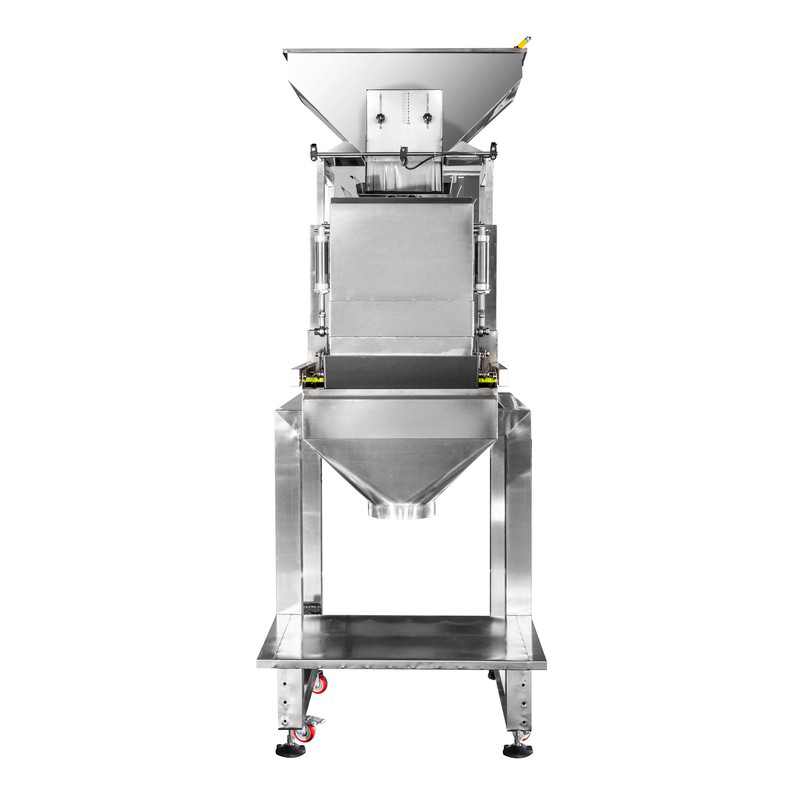

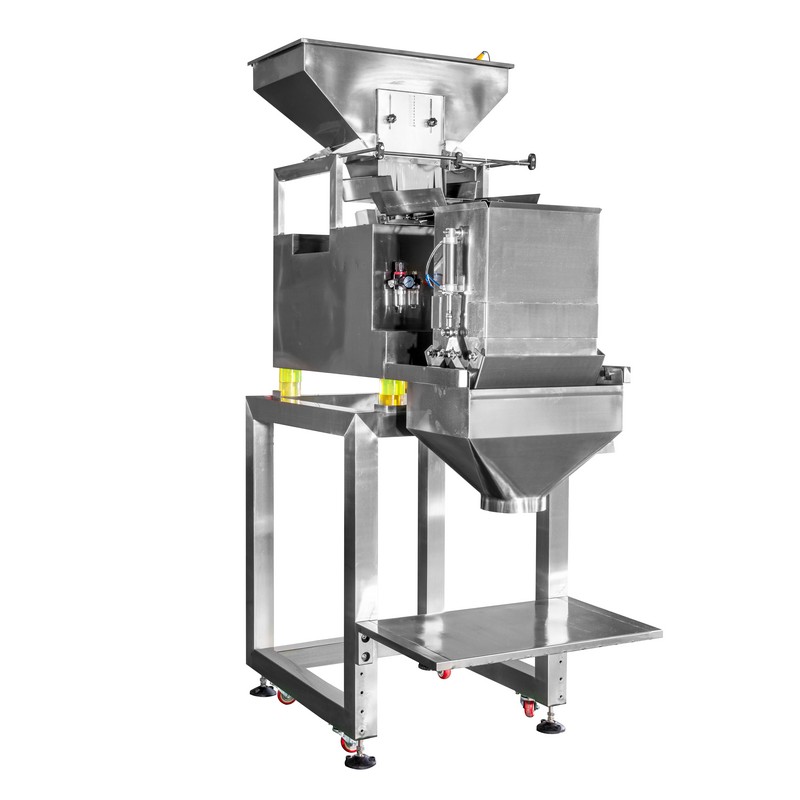

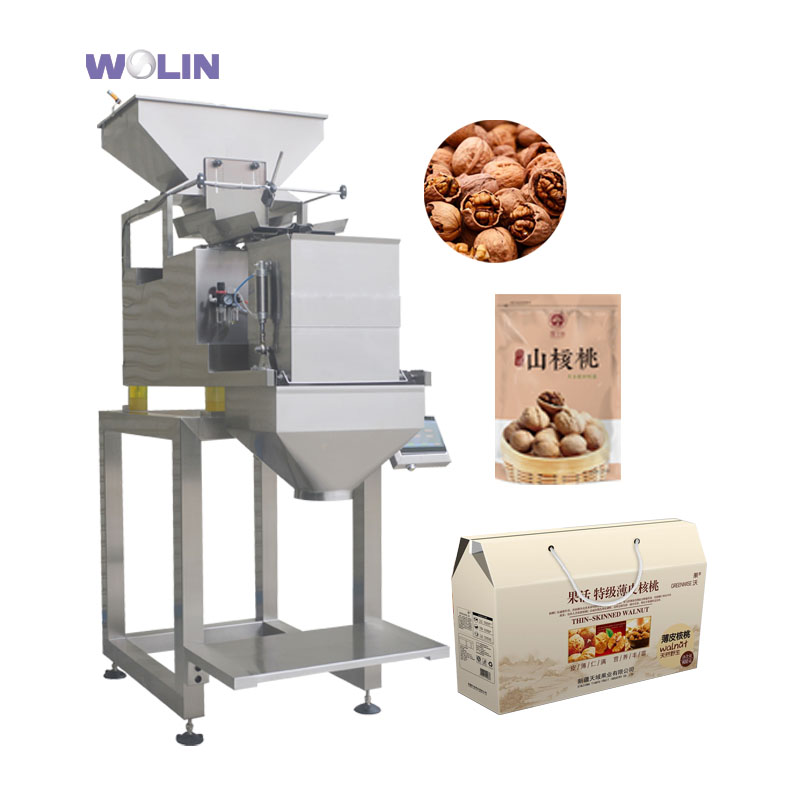

Model | WL-TP1H500 |
Single Weighing Range | 5-25kg |
Weighing Accuracy* | 1-50g or 1-3 piece of product |
Weighing Speed | 2-4Bags/min |
Weigh Hopper Capacity | 50L |
Control System | MCU+Touch screen |
Preset Program No. | 15 |
Max. Mixed Products | 1 |
Power Requirement | AC220V ±10% 50Hz(60Hz) |
Options | Infeed conveyor/ Stand, etc. |
*Subject to product shape, density, fluidity, target weight, etc.
