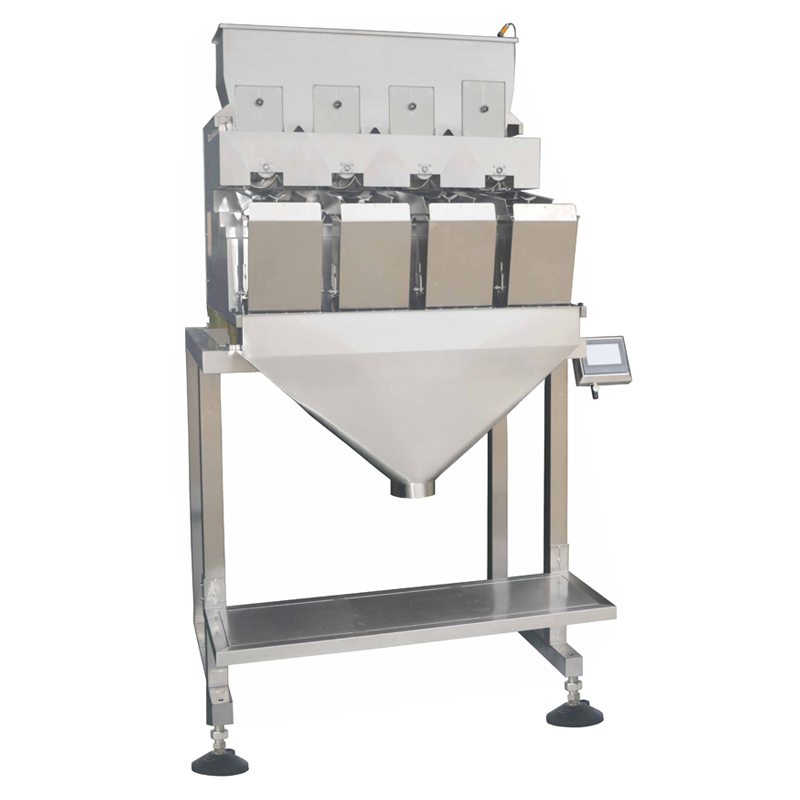

WL-TP4H120A Ice Cube Triplex 12L 4 Head Weigher

*High precision digital load cell

*7 inch color touch screen

*Screw feeder design for ice cube to avoid ice cube stick together

*Different level authority to facilitate use and management

*New generation MCU automatic learning products are more intelligent

*The parameters can be adjusted accordingly during operation

*Interchangeable integrated modular circuit board

*304 stainless steel body with compact design

*Free tool parts release, easy clean and maintain

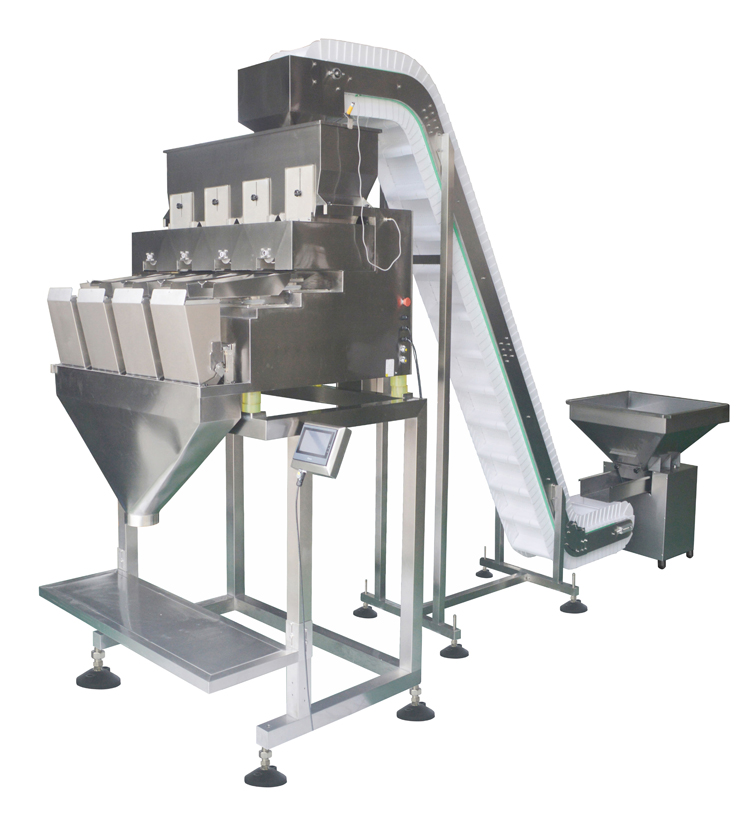

*Stand alone or integrated with packing line

Inquire Now Next Product

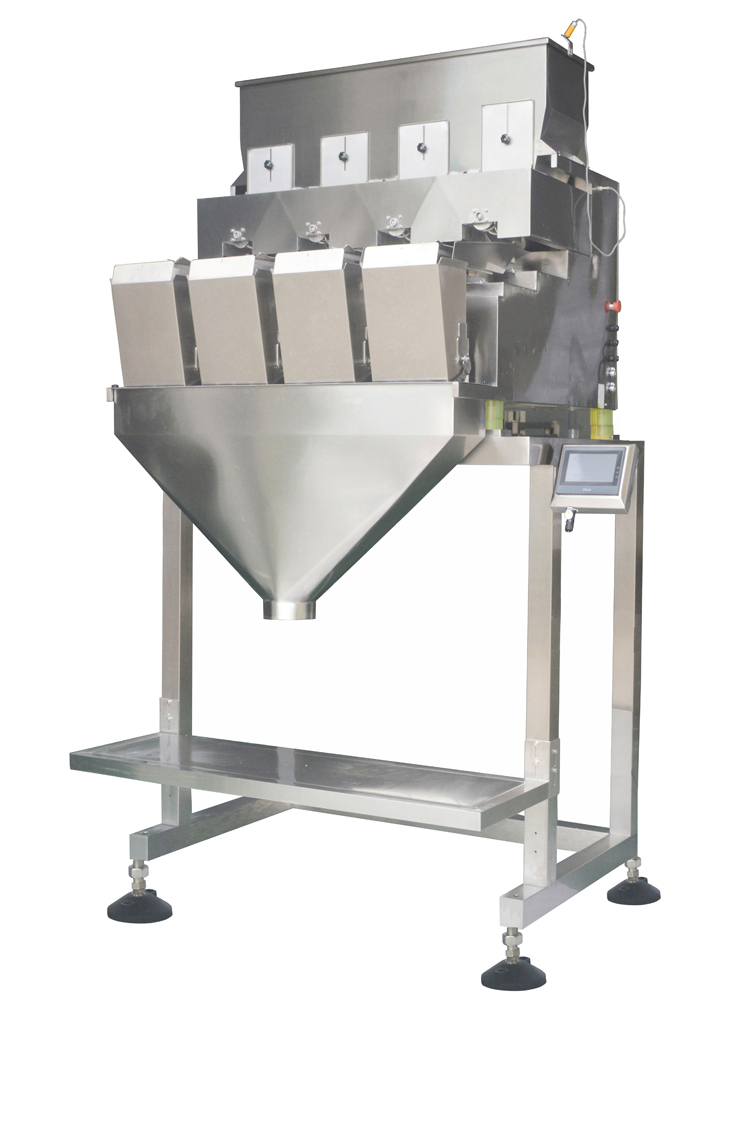

WL-TP4H120A Ice Cube Triplex 12L 4 Head Weigher

SPECIFICATIONS

Model	WL-TP2H120A
Single Weighing Range	100g-6Kg
Weighing Accuracy*	1-20g or 1-3pcs ice
Weighing Speed	8-20PPM
Weighing Hopper volume	12L
Control System	MCU+Touch screen
Preset Program No.	15
Max. Mixed Products	1
Power Requirement	AC220V ±10% 50Hz(60Hz)
Packing Size&Weight	1520(L)1610(W)1400(H)mm 546KG
Options	Dimple Plate/Enclosure/Mini Stand, Etc.

*Subject to product shape, density, fluidity, target weight, etc.
