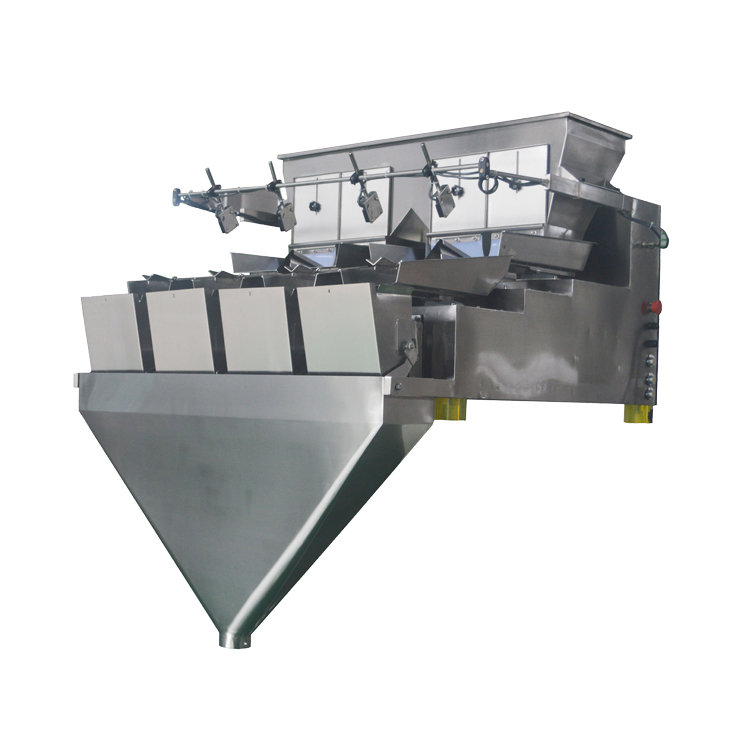

Linear Weigher
3 level vibrator feeding with independent fine feeding pan
304SUS material design;
Tool-less release for easy clean.
Adjustable material thickness.
Free set the weigher during running.
High precision load cell.
7" Touch screen control.
Hopper open driven by step motor;
FEATURES
*High precision digital load cell
*7 inch color touch screen
*Multilingual control system
*Different level authority to facilitate use and management
*New generation MCU control, 3 levels vibrator feeding material
*The parameters can be adjusted accordingly during operation
*Interchangeable integrated modular circuit board
*304 stainless steel body with compact design
*Free tool parts release, easy clean and maintain
*Stand alone or integrated with packing line
SPECIFICATIONS

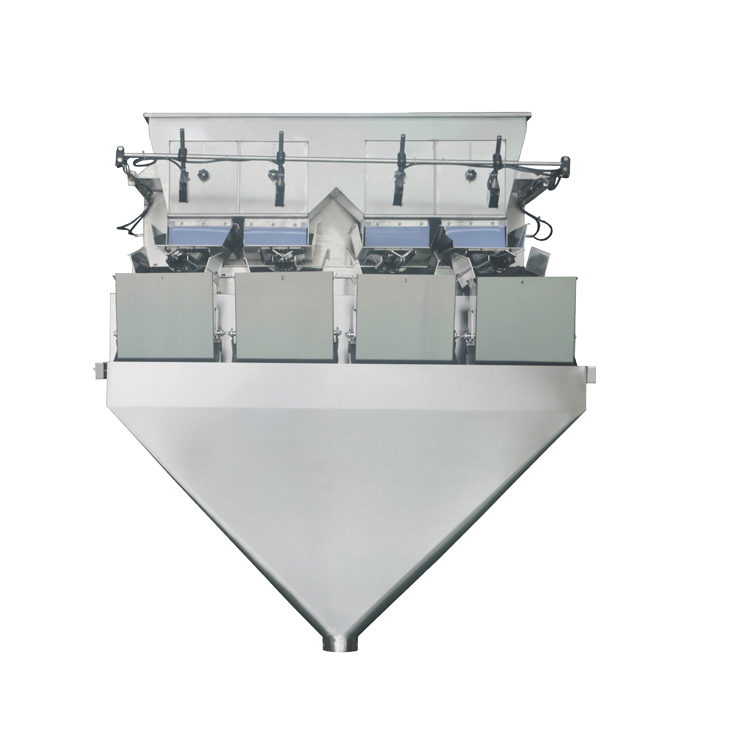

Model | WL-TP4H50 |
Single Weighing Range | 100-3000g |
Weighing Accuracy* | ±1-5g or 1-3pcs error |
Weighing Speed | 5-30 BPM |
Weighing Hopper Volume | 5000ml/8000ml |
Control System | MCU+Touch screen |
Preset Program No. | 15 |
Max. Mixed Products | 4 |
Power Requirement | AC220V ±10% 50Hz(60Hz) |
Packing Size&Weight | 1590(L)*670(W)*940(H)mm 189KG |
Options | Dimple Plate/Mini Stand, Etc. |
*Subject to product shape, density, fluidity, target weight, etc.
