Mini Doypack Packaging Machine For Liquid

Automatic packing system for small to medium producers needing efficient, hygienic, and accurate pouch packaging of liquids like detergent liquid, juice, soup, oils, liquid soap, and more.

Inquire Now

Looking for a reliable liquid mini doypack packaging machine?

Our compact, fully automatic mini doypack packing machine system is perfect for small to medium producers. It ensures efficient, hygienic, and accurate packaging of liquids such as detergent liquid, juice, soup, oils, and more liquid products.

Featuring easy operation, stainless steel 304 construction, and adjustable fill volumes (100–2000ml), this mini doypack bagger offers professional results at an affordable price. Ideal for the food, cosmetic, and chemical industries, it boosts productivity with minimal footprint and maximum flexibility.

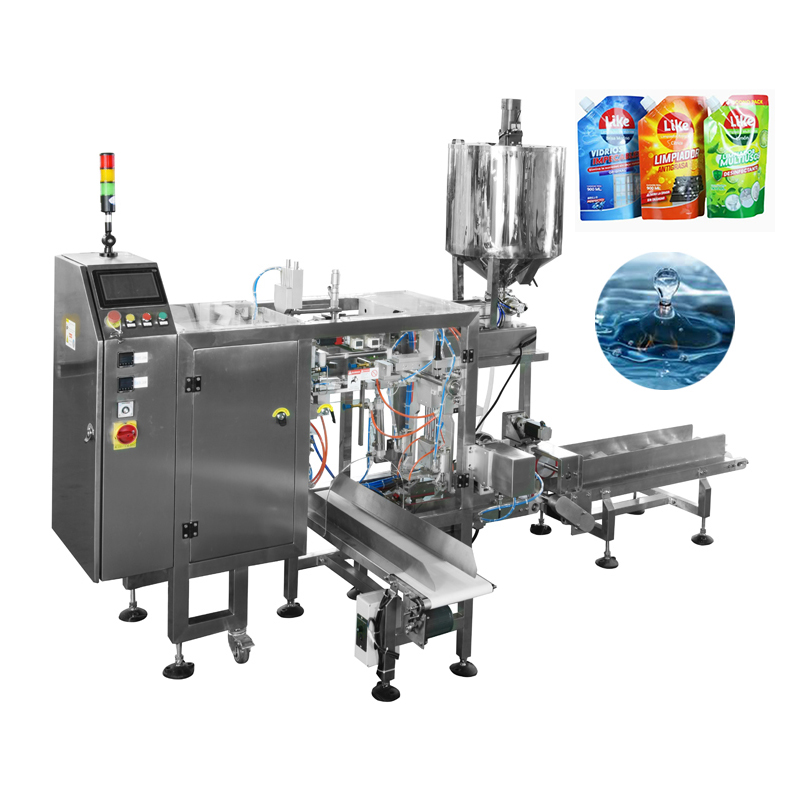

Liquid Mini Doypack Packaging Machine

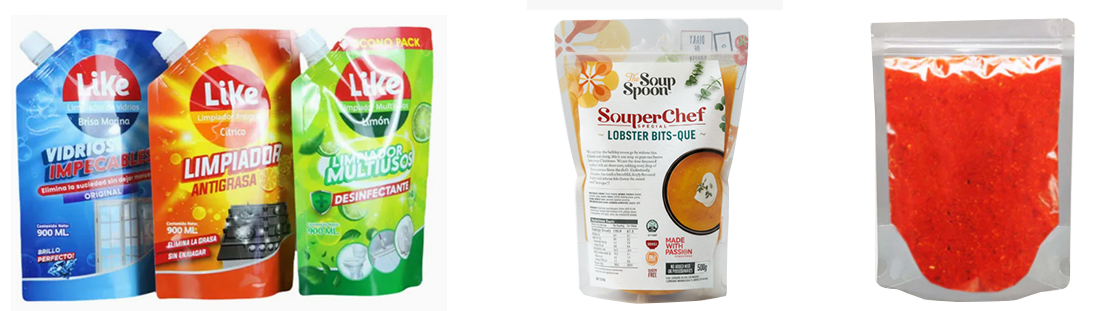

And it supports a versatile range of bag styles—including spout pouches, 3-side seal pouches, and stand-up pouches—in both plastic and paper materials.

Weight Filler	Pistion Liquid Filler
Filling Range	100~ 2000ML
Filling Accuracy	≤±1% (Liquid)
Packing Machine	Mini Doypack Packing Machine
Packing Speed	4-8 bags/min
Pouch Style	Premade pouches, such 3 side seal pouch , stand-up Zip-lock pouch
Pouch Size	Width 100mm ~ 300mm, length 100mm ~ 350mm
Air Consumption	0.3~0.4m³/min , 0.6-0.7 Mpa
Power Supply	1 Phase, 220V, 50/60Hz
Options	Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device

v Compact single station, pneumatic system used for safety running & low maintenance.

v From pouch pick up- open - fill - seal to output which is controlled by PLC.

v Equipped with piston pumps or peristaltic pumps to ensure accurate and consistent fill volumes.

v Compatible with various pre-made bag types including spout pouches, stand-up pouches, Zip-lock pouch .

v Quick adjustment for different bag sizes , bag width auto adjust by setting on the control screen

v 7" User-Friendly HMI control, Intuitive touchscreen for efficient monitoring and operation.

v Smart Pouch Detection System, “No pouch, no fill” functionality prevents product waste and spillage.
