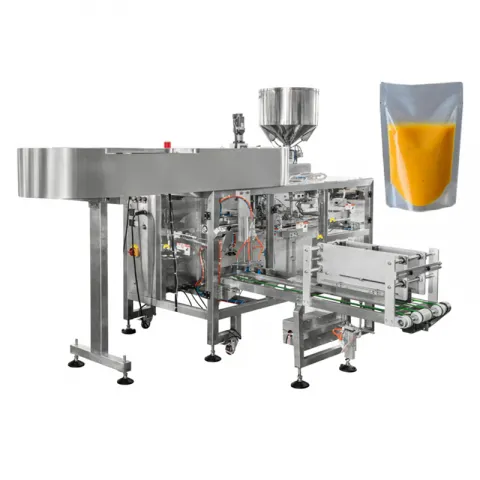

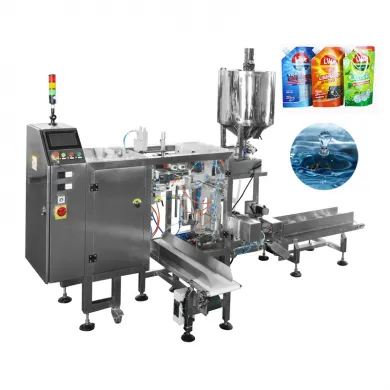

Pouch Packaging Machine For Liquid

Stainless steel 304 automatic stand-Up pouch filling & sealing machine for soup juice oil liquid packaging with multi-functionality

Inquire Now Next Product

Automated Pouch Packaging System for Liquid Production , boost production efficiency with our reliable pouch packaging machine, designed specifically for liquid like soups, juices,oil and sauces. 2 filling station availabe for multi-popuse packing needs.

This automated pouch packaging system delivers high-accuracy filling and perfect seals for a variety of liquids—juices, oils, soups, and beverages. Featuring dual filling positions for multipurpose packaging flexibility, it's built for reliable performance in demanding liquid production environments.

Pouch Packaging Machine For Liquid

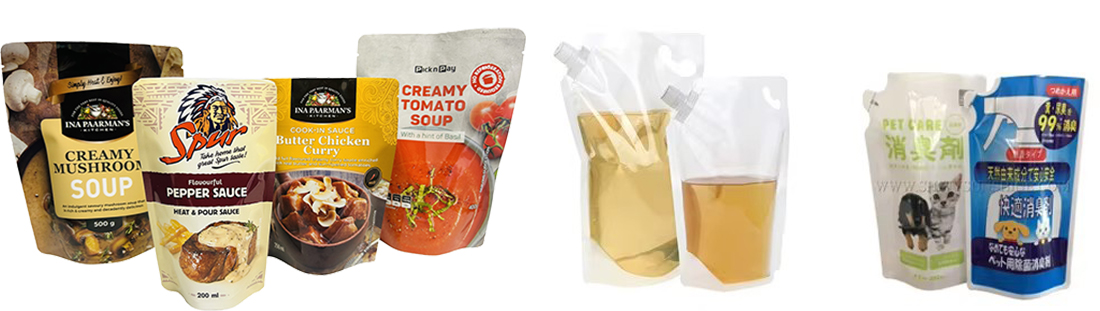

And it supports a versatile range of bag styles—including spout pouches, 3-side seal pouches, and stand-up pouches—in both plastic and paper materials.

Weight Filler	Pistion Liquid Filler
Filling Range	100~ 1000ML
Filling Accuracy	≤±1% (Liquid)
Packing Machine	4 Station Doypack Packing Machine
Packing Speed	10-20 bags/min
Pouch Style	Premade pouches, such 3 side seal pouch , stand-up Zip-lock pouch
Pouch Size	Width 80mm ~ 300mm, length 100mm ~ 350mm
Air Consumption	0.4~0.5m³/min , 0.6-0.7 Mpa
Power Supply	1 Phase, 220V, 50/60Hz,2.5Kw
Options	Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device

4-Station Horizontal Design:
4 workstations operating simultaneously in a continuous cycle, 2 filling station enable mixing packaging needs.

Simultaneous Multi-Process :
Each station performs different functions concurrently (bag pickup →Ziplock Open/filling→ filling → sealing )
High Precision Filling:
Equipped with piston pumps or peristaltic pumps to ensure accurate and consistent fill volumes.

Flexible Material Handling:
Compatible with various pre-made bag types including spout pouches, stand-up pouches, Zip-lock pouch and gusseted bags

Rapid Changeover Capability:
Quick adjustment for different bag sizes , bag width auto adjust by setting on the control screen
7" User-Friendly HMI control:
Intuitive touchscreen for efficient monitoring and operation.
Smart Pouch Detection System:
“No pouch, no fill” functionality prevents product waste and spillage.
