Powder Pouch Packaging Machine

Automatic premade pouch packaging machine for a wide range of powders: protein, milk, coffee powder,flour and pharmaceutical powder, chemical powders. High-precision filling, zipper or stand-up pouch compatible. Integrated mixing tank for on-demand powder blending and pouch filling.

Inquire Now

Engineered for precision and efficiency, this fully integrated system packages free-flowing powders into preformed pouches with hygiene and reliability. The system includes a powder feeding screw conveyor, a high-accuracy servo-controlled auger filler, and an automatic 4-station premade pouch packaging machine.

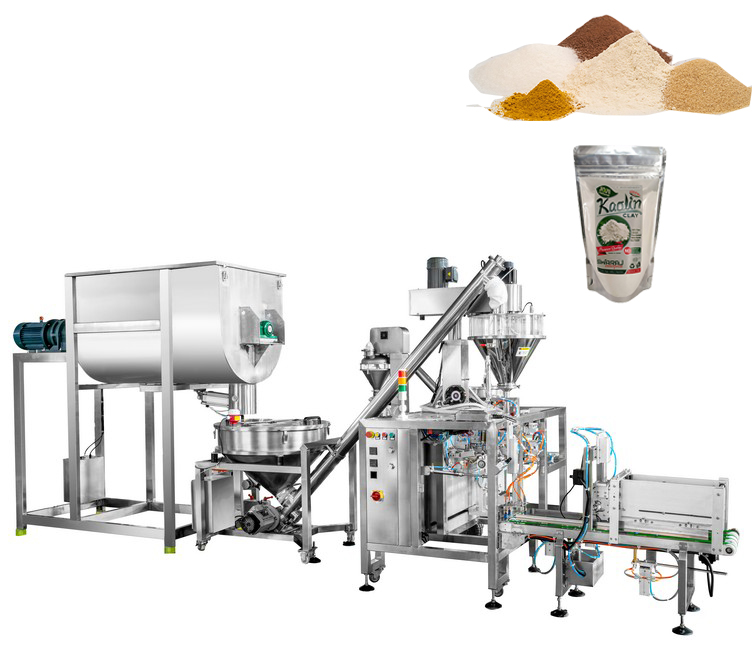

Powder Pouch Packaging Machine

No.	Description	Function
A	Mixing Machine	Bulk Powder Mixing Machine With 500L Storage Tank
B	Screw Conveyor	Feed The Powder To The Auger Filler For Weighing And Dosing
C	Auger Filler	Auto Dose/Fill Powder As Preset Weight To Pouch Packaging Machine
D	Pouch Packaging Machine	Auto Bag Pick Up - Zipper Open - Fill -Heat Sealing and output

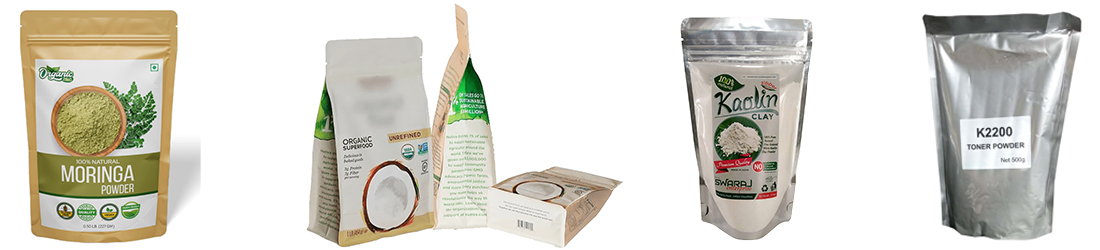

This 4-station pouch packaging machine works with various pre-made pouches—flat, stand-up, gusseted, and zipper bags, equiped with auger filler, suitable for packaging flour, milk, protein, coffee powder,spice powder ect.

Powder Pouch Packaging Machine

Packing Weight	50-2000 grams
Weighing Accuracy	±1.5%
Packing Speed	8-15 bags/min
Pouch Style	Premade pouches, such 3 side seal pouch , stand-up Zip-lock pouch
Pouch Size	Width 80mm ~ 300mm, length 100mm ~ 350mm
Air Consumption	0.4~0.5m³/min , 0.6-0.7 Mpa
Power Supply	1 Phase, 220V, 50/60Hz,2.5Kw
Options	Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device

4-Station Horizontal Design
4 workstations operating simultaneously in a continuous cycle
Simultaneous Multi-Process
Each station performs different functions concurrently (bag pickup →Ziplock Open→ filling → sealing )
Precision Powder Dosing
Using interchangeable auger heads tailored to material density and flow characteristics.
Dust Controlled Packing Process
Dust-proof cylinders and dust extraction removes device for cleaner operation and component protection.
Flexible Material Handling:
Compatible with various pre-made bag types including flat bags, stand-up pouches, Zip-lock pouch and gusseted bags
Rapid Changeover Capability
Quick adjustment for different bag sizes , bag width auto adjust by setting on the control screen
7" User-Friendly HMI control
Intuitive touchscreen for efficient monitoring and operation.
Smart Pouch Detection System:
“No pouch, no fill” functionality prevents product waste and spillage.
