Vertical Form Fill Seal (VFFS) Packaging Machine for Powder

WEIGHLIN Vertical Form Fill Seal (VFFS) Packaging Machine is engineered for high-speed, precision packaging of free-flowing and fine powders, making it ideal for industries such as food, pharmaceuticals, chemicals, and cosmetics.

Inquire Now Next Product

Engineered for speed and accuracy, this high-performance powder packaging system combines a screw conveyor, high-precision powder auger filler, and a fully integrated vertical form-fill-seal (VFFS) unit for seamless end-to-end automation.

Vertical Form Fill Seal (VFFS) Packaging Machine for Powder

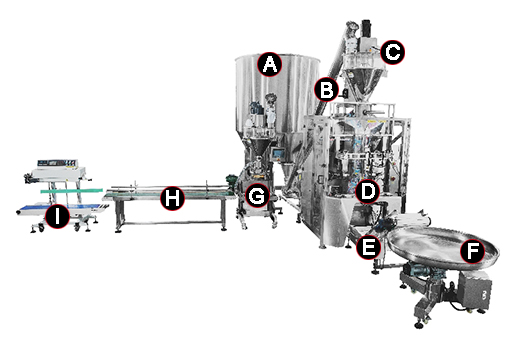

No.	Description	Function
A	Mixing Machine	Bulk Powder Mixing Machine With 1000L Storage Tank
B	Screw Conveyor	Feed The Powder To The Auger Filler For Weighing And Dosing
C	Auger Filler	Auto Dose/Fill Powder As Preset Weight To Vertical Packaging Machine
D	VFFS Packaging Machine	Auto Film Feeding - Bag Forming - Fill -Heat Sealing and output
E	Output Conveyor	Delivery The Finish Bag To the Rotary Table
F	Rotary Table	Collecting The Finished Package
G	Auger Filler	Semi-Auto Packaging With Manual Bag Giving, Auto Weighing And Filling
H	Conveyor	Delivery The Filled Bag To the Heat Sealer
I	Heat Sealer	For Plastic Bags Heat Sealing

It is suitable for packing a wide range of free-flowing fine powders and small solid granules , such as flour, coffee powder, milk powder, protein powder spices powder, laundry detergent powder, and more.

Vertical Form Fill Seal (VFFS) Packaging Machine for Powder

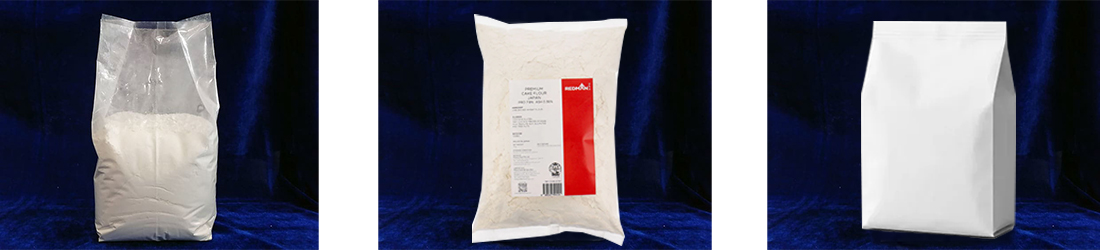

This vertical packaging machine supports a variety of pouch styles to meet diverse packaging needs, including: Pillow bags with back seal，Gusseted bags (with side or bottom gussets for expanded capacity).

Vertical Form Fill Seal (VFFS) Packaging Machine for Powder

Packing Weight	1000-5000 grams
Weighing Accuracy	±≤1%
Packing Speed	10-40 bags/min
Max Film Width	850mm
Bag Size	Width 150–410 mm, length 150–500 mm ( 750 mm if dual-pull )
Air Consumption	0.4m³/min , 0.8 Mpa
Power Supply	1 Phase, 220V, 50/60Hz
Options	Printer/Gas Flush/Vacuum Device/Dust Remove Device

Equipped with servo-driven auger fillers for accurate dosing
Fully automatic: forms, fills, seals, cuts, and outputs bags at high speed.
Supports pillow bags, gusseted bags, and stand-up pouches;
Bag size adjustable via HMI.
Optional dust extraction keeps machine clean and operators safe.
Color touchscreen enables quick setup, monitoring, and recipe storage.
Food-grade SS304 meets hygiene standards for multiple industries.
Works with various roll films for strong barrier and premium look.
