Products
This model can be used for various preformed bags, such as three side seal bags, stand-up bags, ziplock bags, gusset bags, etc. to complete automatic bag pick-up, bag open, fill, seal and finished product output. It is suitable for all kinds of food packaging, such as coffee, frozen food, biscuits, Cereals, nuts, powdered materials, candy, etc...
Application
This model can be used for various preformed bags, such as three side seal bags, stand-up bags, ziplock bags, gusset bags, etc. to complete automatic bag pick-up, bag open, fill, seal and finished product output. It is suitable for all kinds of food packaging, such as coffee, frozen food, biscuits, Cereals, nuts, powdered materials, candy, etc. It can be used with screw scale, linear scale, combined scale and other filling equipment.
FEATURES
*Simple and compact structure
*All food grade stainless steel
*Economical and reliable
*Applicable to different bag types
*Simple and easy to use,
*Automatic stop without bag
*Bagging during operation
*Different bag types are easy to adjust
*Low maintenance cost
*Optional zipper bag opening device
*7 inch color touch screen
*Automatic fault judgment and alarm screen
*Multilingual control system
SPECIFICATIONS
| WL-MDP300 MINI DOYPACK POUCH PACKING MACHINE | |
| Model No. | WL-MDP300 |
| Bag Types | 3-side seal, zip-lock, gusset, stand-up |
| Bag Size | Standard Bag: 100-300mm(W) *100-350mm(L) |
| Ziplock Bag: 130-300mm(W) *130-350mm(L) | |
| Packing Speed | 5-10BPM |
| Power | 220V/50HZ, 60HZ 1P 1KW |
| Air Consumption | 7.0 CFM@80 PSI |
| Control Panel | 7 inches Touch Screen |
| Packing Size&Weight | 1900*620*1520mm, 289KG |
| OPTIONS | Auto Ziplock Opener |
| Tapping & Holding Plate for Big Pouch | |
| Gas Flash | |
| Output Conveyor | |
| Different Weight Filler | |
MAIN COMPONENTS LIST
| NO. | Part Name | Brand | From |
| 1 | PLC | Mitsubishi | Japan |
| 2 | Touch Screen | Kinco | China |
| 3 | Pneumatic Parts | Airtac | China Taiwan |
| 4 | Temparature Controller | Yudian | China |
| 5 | Vacuum Generator | Booka | China Taiwan |
| 6 | Leakage switch | Schneider | France |
| 7 | Air Switch | Schneider | France |
| 8 | Solid Relay | Yudian | China |

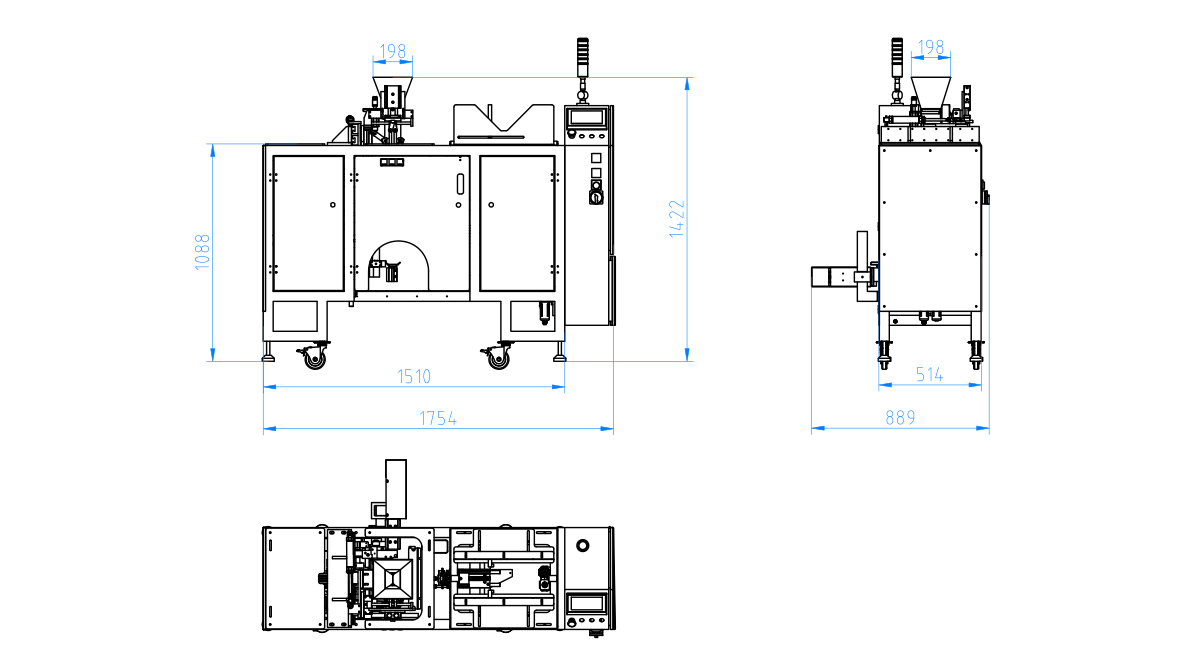

Drawing
