10Kg 25Kg 50kg Granular Bulk Bag Automatic Sewing Packing Machine

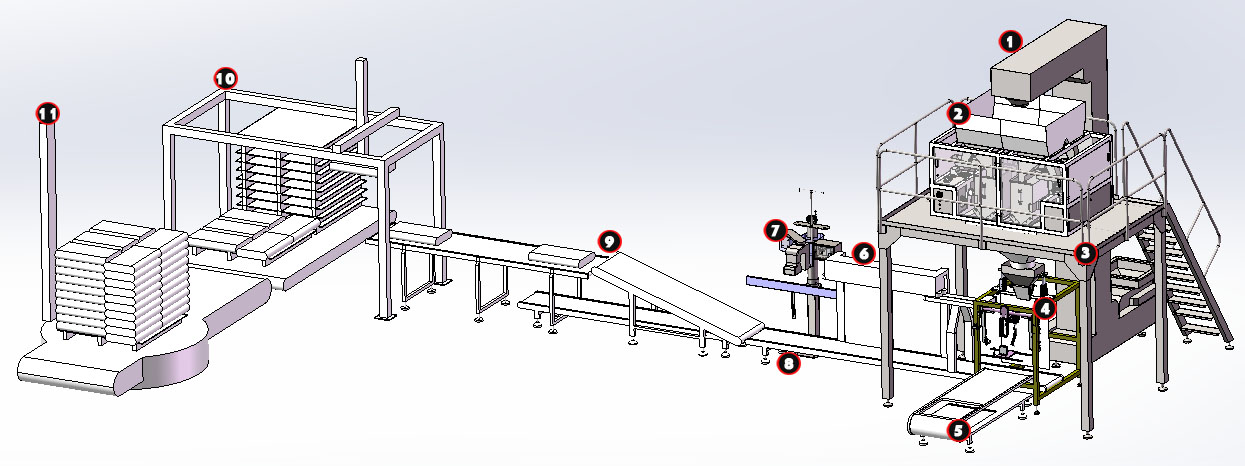

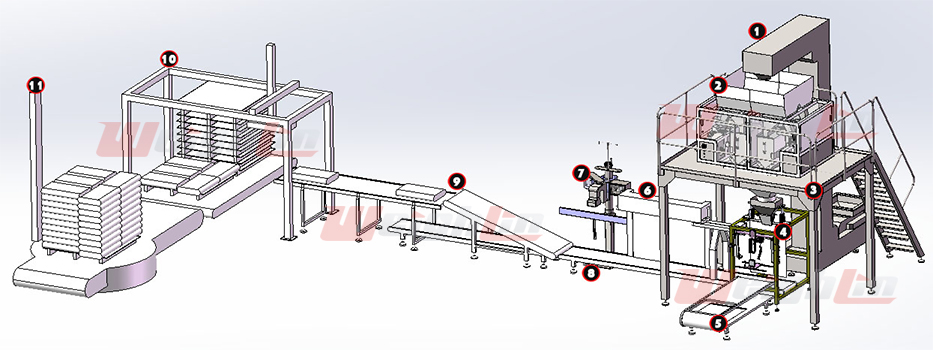

Heavy-Duty Granular Bulk Bag Sewing Automatic Packing Solution

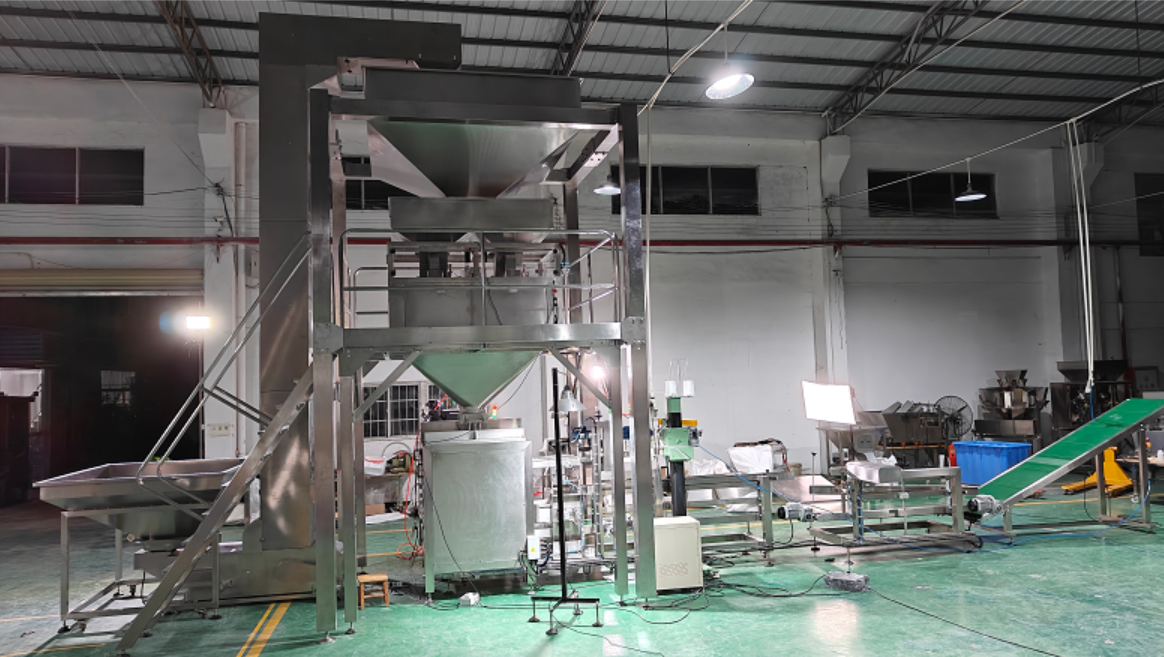

The Weiglin Automatic Bulk Bag Sewing Packing Solution is a fully integrated industrial system engineered for the high-speed, precision packaging of free-flowing granular materials. This robust solution seamlessly combines automatic weighing, bag handling, filling, and sewing technologies into a single, cohesive unit. It is specifically designed to handle a wide range of products, including sugar, rice, beans, nuts, and pet food. The system offers exceptional versatility, capable of packaging these materials into durable Polypropylene (PP) woven bags or Kraft paper bags, ensuring a secure and professional finish for bulk shipments.

How It Work:

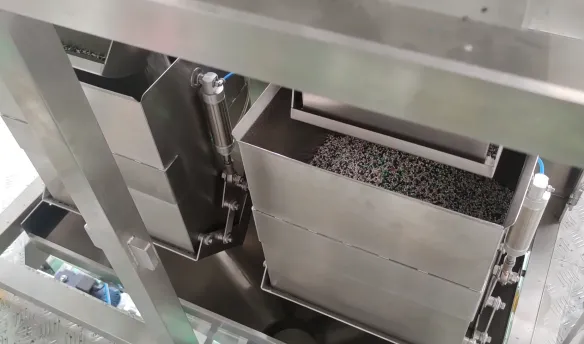

Automatic Weighing and Dosing: The process begins with the material being fed into the hopper. High-precision load cells linear weigher accurately measure the product to the pre-set target weight, ensuring strict adherence to quantity specifications.

Bag Feeding and Opening: The machine automatically retrieves an empty bag from the magazine. A suction cup mechanism opens the bag mouth, preparing it for the filling stage.

Product Filling: The weighed product is discharged into the open bag. The system typically employs a gravity-fed chute to ensure a smooth flow with minimal dust and spillage.

Bag Flattening and Conveying: After filling, the bag is mechanically flattened or shaped to ensure uniform thickness, which is crucial for the subsequent sewing process. It is then conveyed to the sewing station.

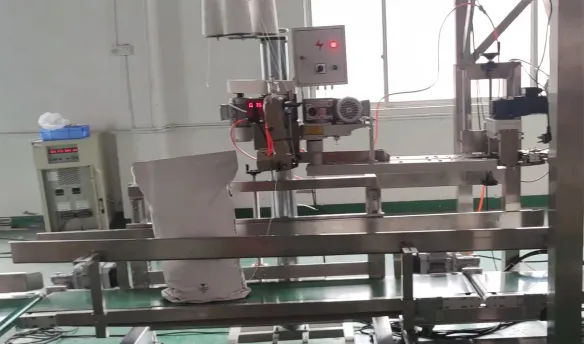

Automatic Sewing and Sealing: The bag enters the sewing head, where an industrial sewing machine automatically stitches the top closure. This creates a strong, tamper-evident seal suitable for heavy-duty transport.

Output: The finished, sealed bag is discharged onto a take-away conveyor, ready for palletizing or storage.

Heavy-Duty Granular Bulk Bag Sewing Automatic Packing Solution

Key Features

The free-fall weighing machine, also known as a gravity feed weigher, uses gravity to accurately weigh free-flowing granular products. It is widely used across industries for its precision, speed material handling. Versatility for Free-Flowing Materials While specialized for granular and particulate materials, the machine is highly versatile within that scope. It handles a wide range of free-flowing products effectively, including: Food: Rice, beans, nuts, seeds, sugar, salt. Non-Food: Plastic pellets, chemical granules, fertilizers, pet food.

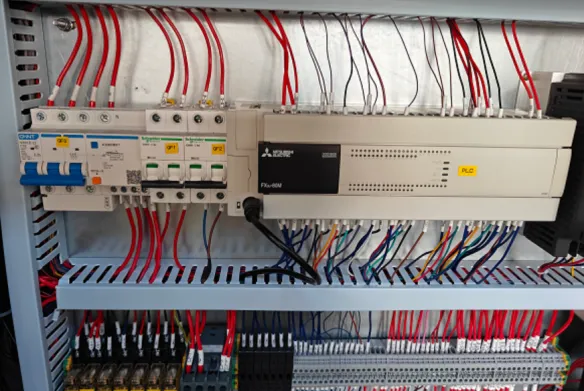

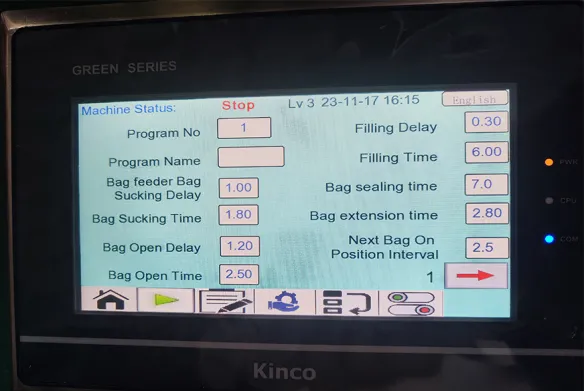

Precision Control, Stability as the Core: The operation of this sewing packing line is anchored in a globally recognized programmable logic controller (PLC), whose powerful computing capability and exceptional stability enable precise coordination of every step—from weighing and sewing . Intuitive Interaction, Barrier-Free Operation: The user-friendly human-machine interface (HMI) presents equipment status, parameter settings, and fault alerts . Operators can master its use quickly without extensive training: with a simple touch on the screen, they can easily set production tasks, switch running modes,making equipment control simple and efficient while enhancing the convenience of production management.
