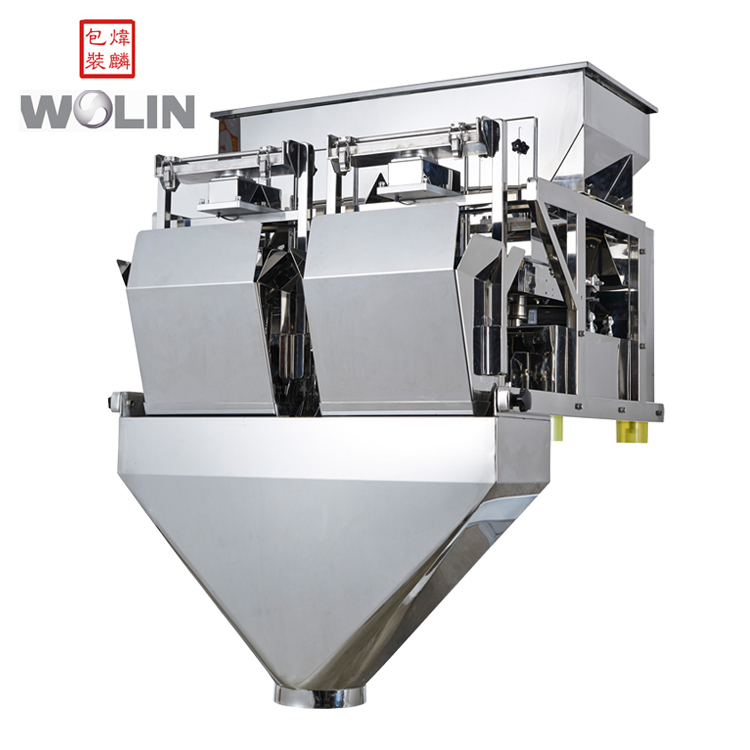

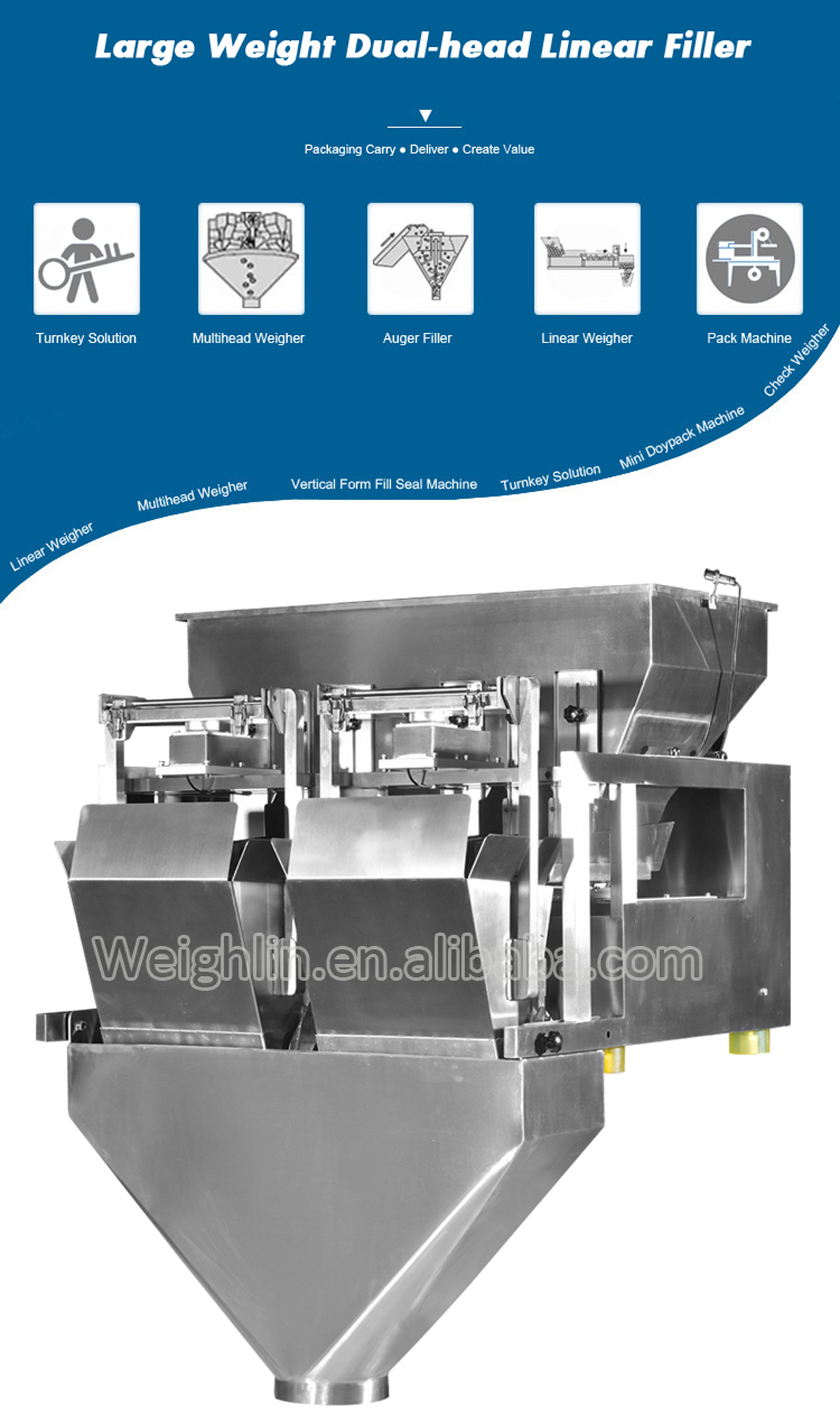

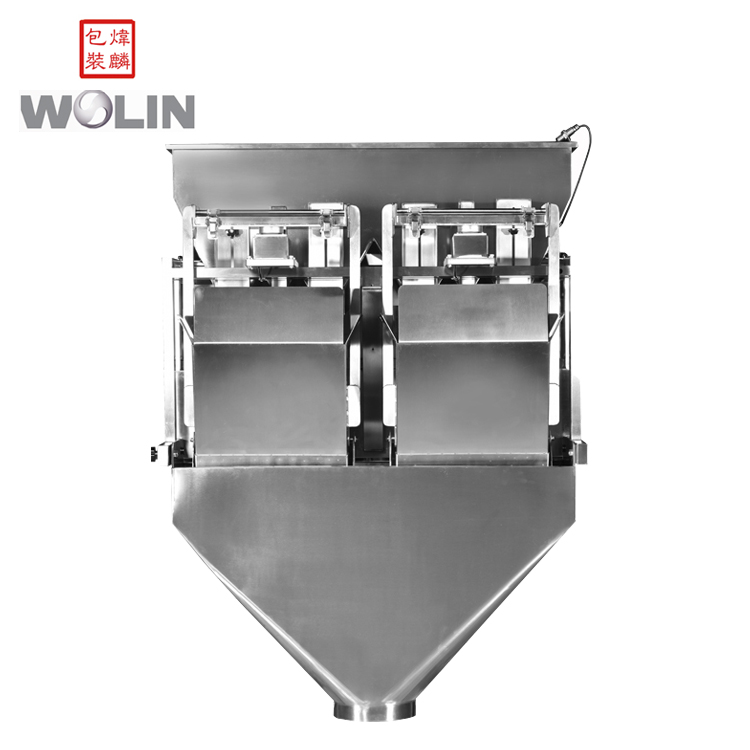

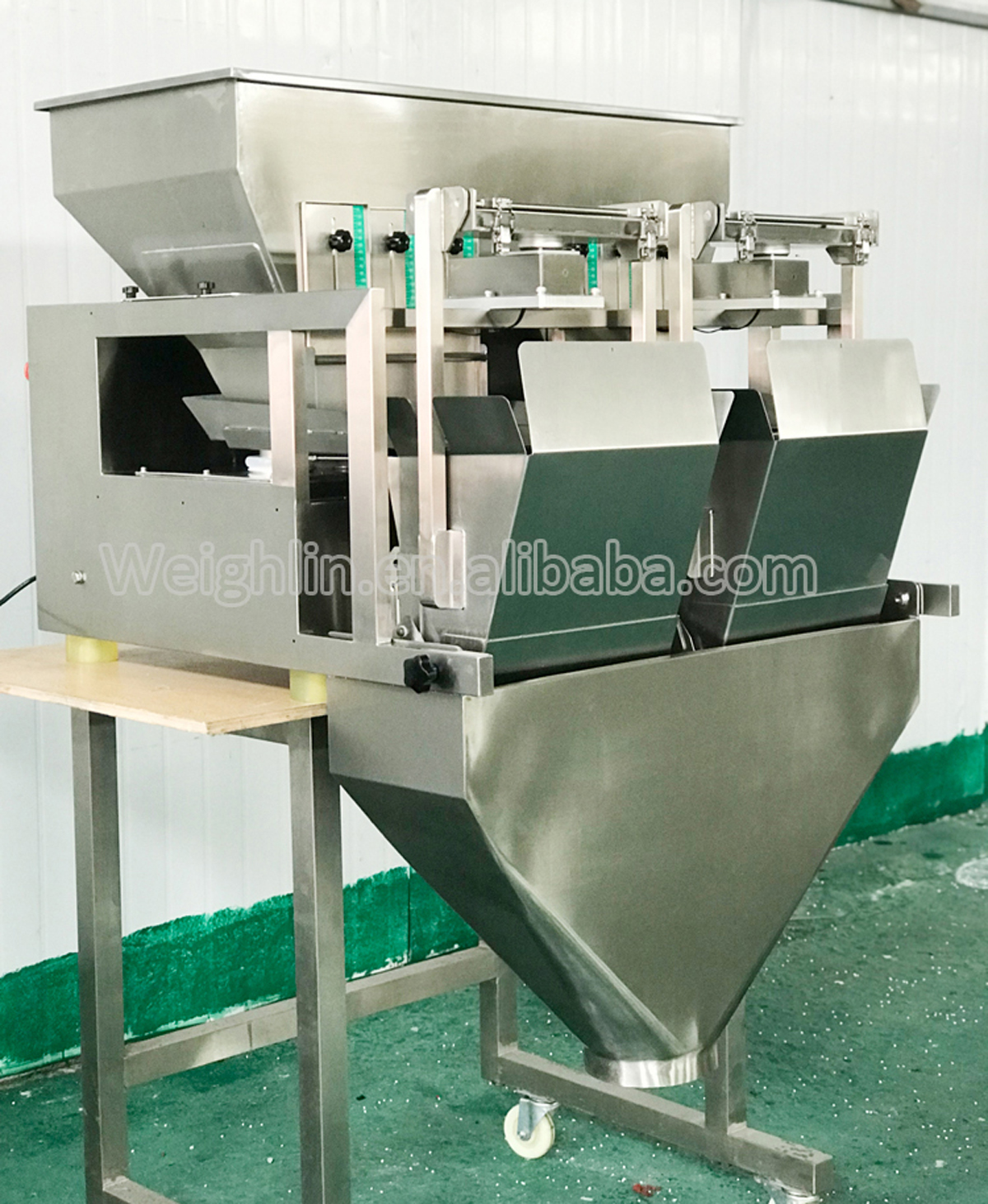

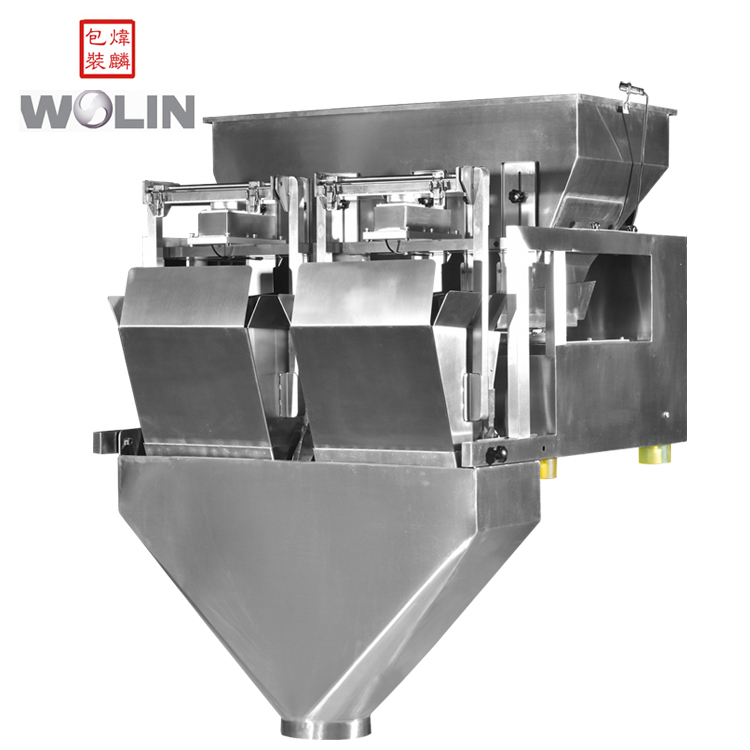

WL-P2H200 2 Head 20L Weigher for 5-10KG
Weighlin unique design and release this model for big weight 5-10kg weight dispense, combined dump can be 20kg, equiped coarse and fine feeding, coase feeding can be fed by belt or powerful vibrator feeder, extra large 20L weigh hopper for flexible weighlin range, very reliable and high precision accuracy performance
MESSAGE US
Weighlin unique design and release this model for big weight 5-10kg weight dispense, combined dump can be 20kg, equiped coarse and fine feeding, coase feeding can be fed by belt or powerful vibrator feeder, extra large 20L weigh hopper for flexible weighlin range, very reliable and high precision accuracy performance.
Widely apply for beans, rice, nuts, bird seeds, dog food in big bulk weight per bag.
Widely apply for beans, rice, nuts, bird seeds, dog food in big bulk weight per bag.
KEY FEATURES:
- Two Heads with 20L Capacity to each Hopper
- Step Motor Driving System
- Program Memory up to 10
- Self-learning Software, no boring seting
- Food-grade SUS304 Contact Parts
- Unique Design with Dribble Feed Gate
- Tool-free and Quick to Remove for Cleaning
- Control System Modular MCU + PCB Board, 7" Touch Screen
- Digital Sensor to Enhance the Speed / Precision / Anti-jamming Capacity
SPECIFICATIONS:
| Model | WL-P2H200 |
| Heads Number | 2-head (Optional) |
| Hopper Capacity | 20L |
| Filling Range | 1 ~ 10Kg |
| Filling Speed | 5 ~ 20bags/min |
| Filling Accuracy | 1 ~ 20g |
| Driving System | Step Motor |
| Material Feeding | By manual or conveyor |
| Control System | MCU + Modular PCB board |
| Building Materials | SUS304 stainless steel |
| Options | Front Plastic Enclosures / Foot Actuation Switch / Dimple Plated Surface / Larger Capacity Hopper / Pneumatic Air Cylinder Fine Flap etc |
OPTIONS：

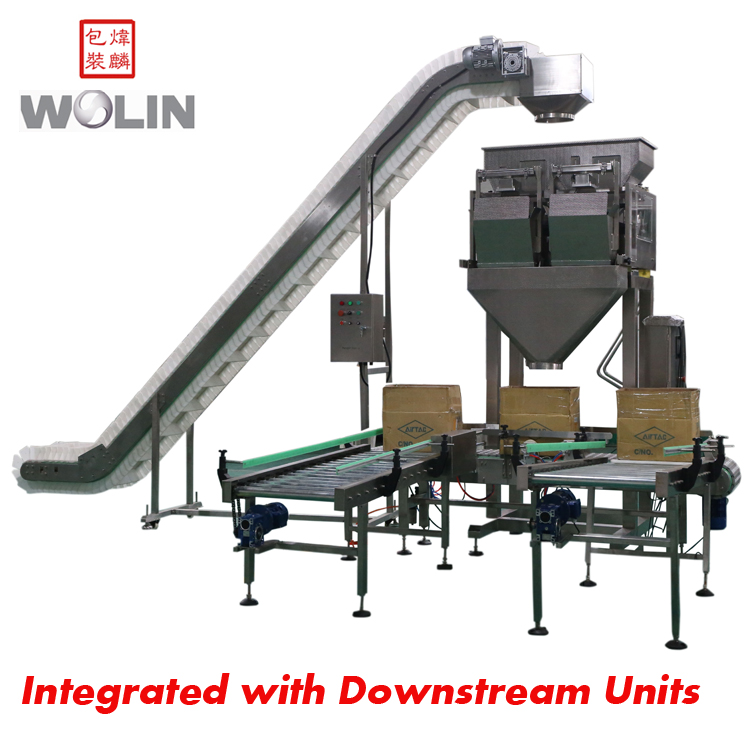

In-feed bulk material conveyor
Support gantry/stand
Various size dump chute outlet
Dimple contacting parts
316SUS food contacting parts
