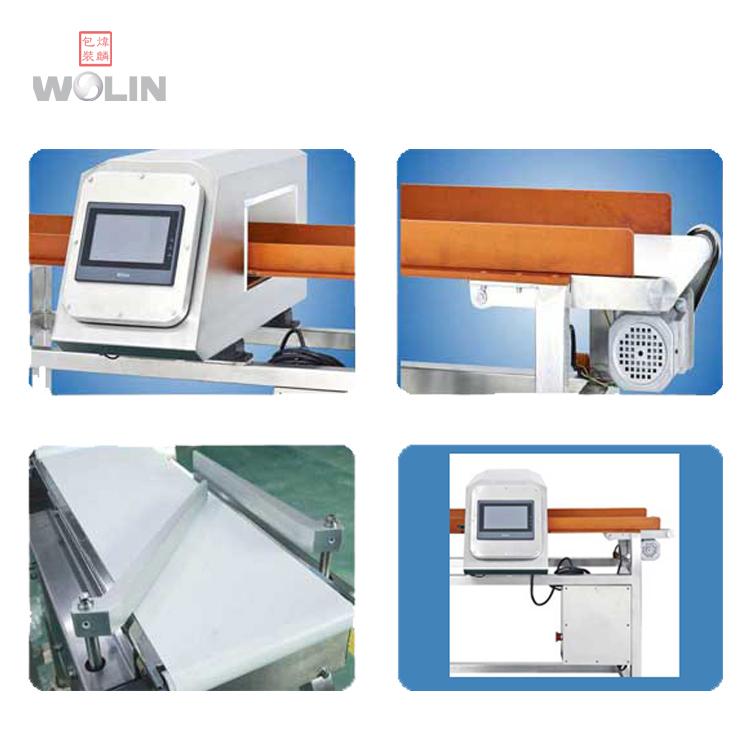

Horizental Metal Detector Food/Non-Food
Flexible and affordable model, it is widely used for food, pharmaceutical, chemical, textile, clothes, toys, rubber etc It is the first choice for HACCP of food industry and GMP of pharmaceutical industry, specially suitable for flour made food, vegetable food, frozen food, sugar made food, pickles,etc
MESSAGE US
It is widely used for food, pharmaceutical,chemical,textile,clothes,toys,rubber etc. It is the first choice for HACCP of food industry and GMP of pharmaceutical industry, specially suitable for flour made food, vegetable food, frozen food, sugar made food, pickles,etc.

With the rapid development of various industries, quality control increasingly stringent, rely on our core technology R&D capabilities, Welin have developed and released a variety of online dynamic automatic metal detector and combo units to meet the current and future market demand with flexible custom ability, by using latest load cell DSP technology, compact design, hi-speed, hi-precision, stable running, easy operation, various rejecting system available, integrated with upstream and downstream equipment as a full packing line for wide application, such as bags, bottle, tray, can or box package, piece medicine or seafood sorting, toy inspecting, etc; It will help to enhance the quality control, improve production capacity, reduce maintenance, reduce labor, improve production and management efficiency.
- Up to 32 multi-languages 7" industry control panel
- New generation coil technology avoiding blind detecting zone
- DSP display and process ensure high sensitivity and stablity
- Product self-study model for easy operation and adjust
- Preset and save 99 program reciples
- Multilevel administration enter level management
- IP56 waterproof chamber design, easy dismantle belt for clean
- Various rejector device are available as per request
Model MD3012 MD4015 MD5020 MD6025
Max. Prod. Width mm 300 400 500 600
Max Prod. Height mm 120 150 200 250
Sensitivity Fe Ø mm 0.8 1.0 1.2 1.5
Sensitivity Fe Ø mm 1.5 2.0 2.5 3.0
Max. Loading Wt. kg 5kg 10kg 25kg 50kg
Speed 30m/min 30m/min 30m/min 25m/min
Power Supply 220v, 50hz, 1p 220v, 50hz, 1p 220v, 50hz, 1p 220v, 50hz, 1p




Product quality control avoid the client’s complaints
Stable performance with low maintenance
Easy operation
Integrated with other upstream and downstream products
